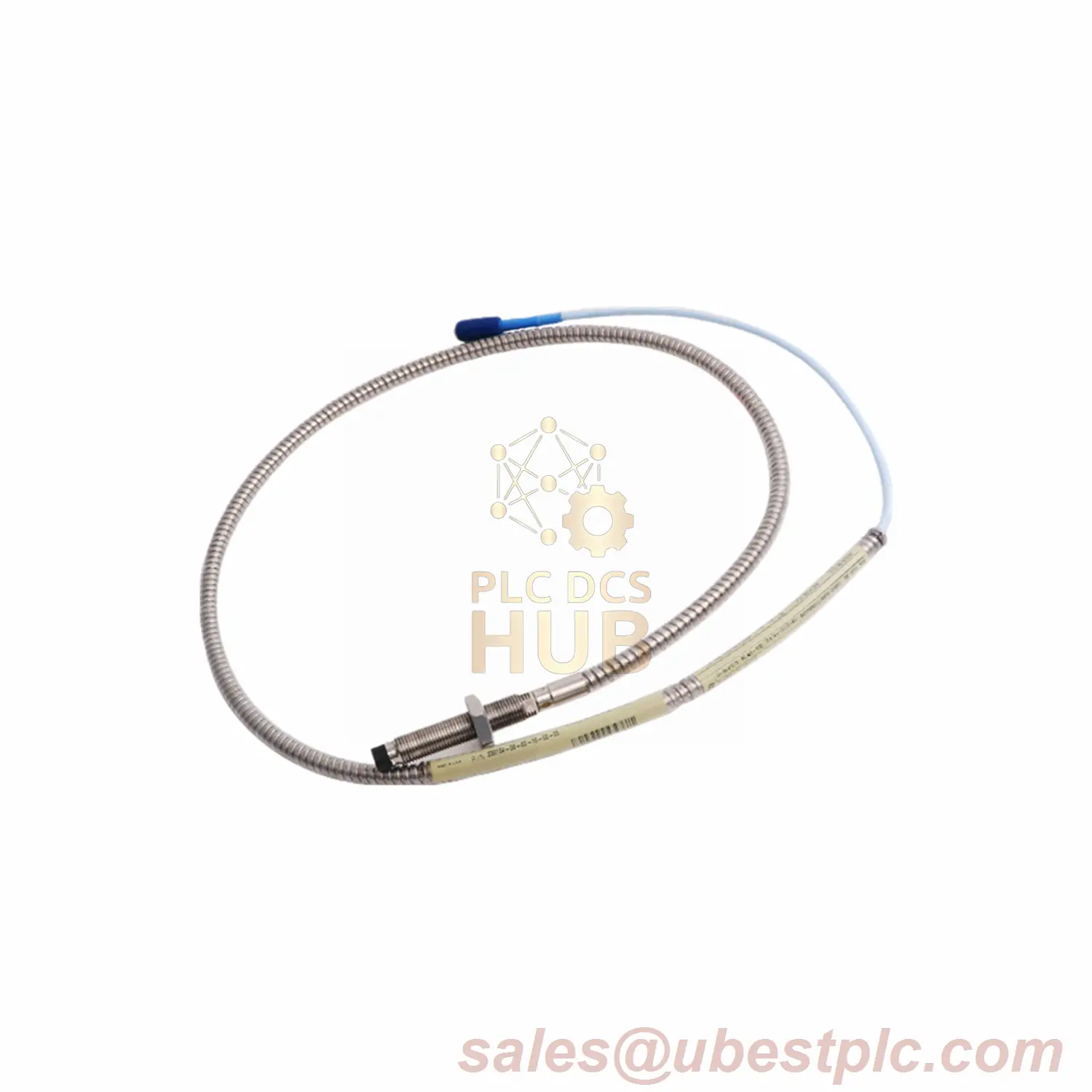

The Bently Nevada 330103-00-02-10-02-00 is a precision-engineered 3300 XL 8 mm Proximity Probe optimized for industrial machinery monitoring. Designed with an M10x1 thread and a 20mm overall case length, this probe features a 1.0-meter standard cable and a Miniature ClickLoc connector. Its robust construction includes a PPS probe tip and AISI 303/304 stainless steel case, ensuring reliability in extreme conditions.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Product No.: 330103-00-02-10-02-00
- Suffix Details:
- 00: No armor
- 02: 20mm case length
- 10: 1.0m cable
- 02: Standard cable with ClickLoc connector
- 00: No agency approval
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: ±0.50 Ω resistance tolerance
- Output Signal: -1 to -17 Vdc (linear range)
- Operating Temperature: -52°C to +177°C (standard)
- Extended Cable Temp: -51°C to +260°C
- Probe Resistance: 7.59 Ω ±0.50 @1.0m
- Weight: 323 g/m (11.4 oz)
Installation Guidelines
- Thread engagement limited to 15mm maximum for M10x1.
- Optimal radial vibration gap: -9 Vdc (50 mils).
- Use shielded triad cable (16–24 AWG) for noise immunity.
- Avoid installation in environments below -34°C to protect seals.
Compatibility
Integrates seamlessly with 3300 XL Proximitor Systems. Supports intrinsically safe (ia) configurations using zener barriers (Drawing 141092) and non-incendive (nA/ec) setups per Drawing 140979.
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0), AEx/Ex nA IIC T1-T5 (Zone 2)
- Compliant with Class I/II/III hazardous areas (Groups A-G)
Application Examples
- Steam turbine shaft eccentricity monitoring
- Hydroelectric generator bearing health analysis
- Paper mill roller alignment verification
