Description

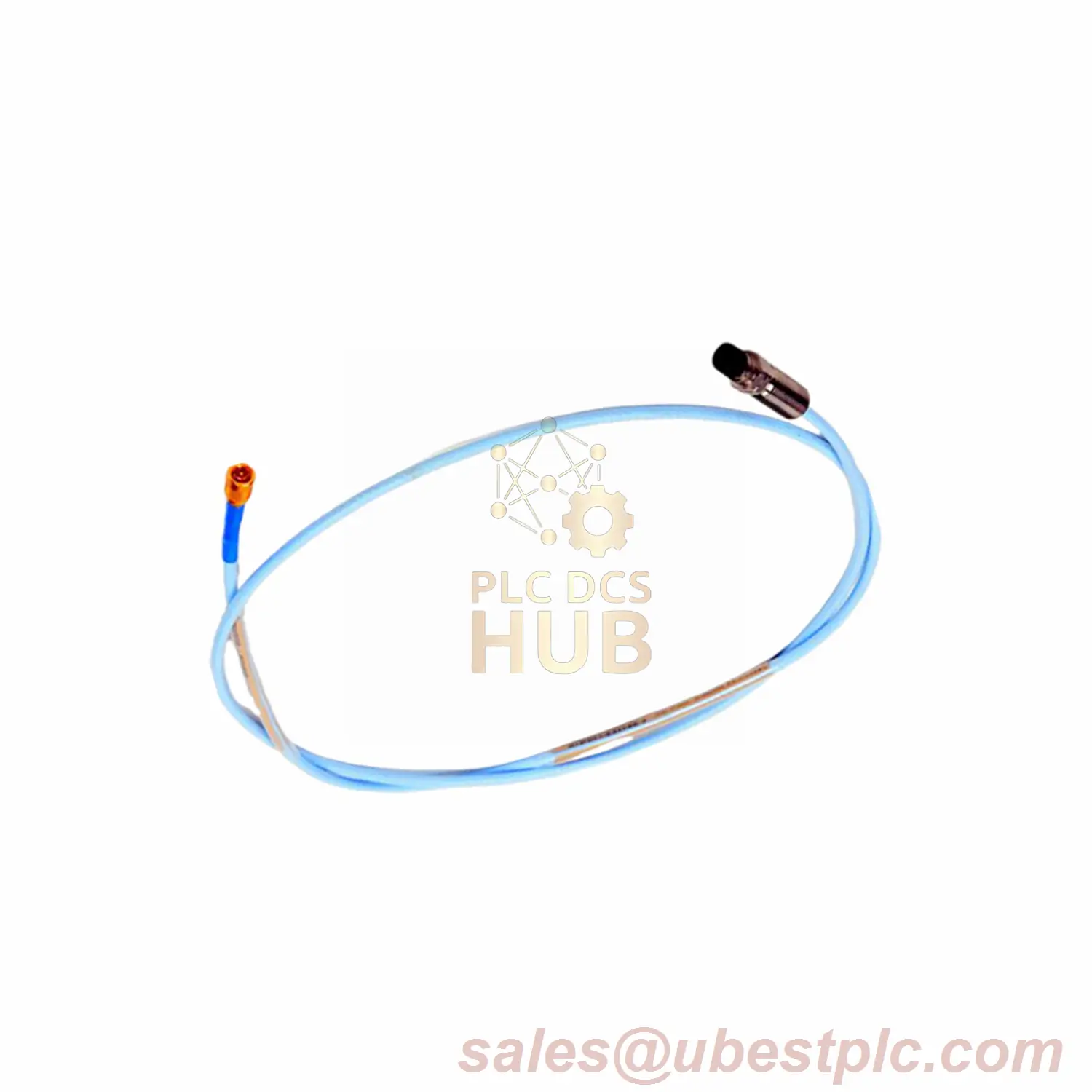

Bently Nevada 3300 XL 8 mm Proximity Probe
Core Features
Industrial-Grade Precision: Designed for vibration monitoring in heavy machinery, 330103-00-15-10-02-00 features an M10x1 threaded stainless steel case (150 mm length) and a PPS tip for chemical resistance. Includes a 1.0-meter ClickLoc cable with miniature coaxial connectivity.
Technical Specifications
- Manufacturer: Bently Nevada
- Part Number: 330103-00-15-10-02-00
- Configuration Code Breakdown:
- 00: 0 mm unthreaded section
- 15: 150 mm overall case length
- 10: 1.0 m (3.3 ft) cable
- 02: ClickLoc connector
- 00: No agency certifications
Performance Metrics
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- DC Resistance: 7.59 Ω ±0.50 @ 1.0 m
- Temperature Tolerance:
- Standard: -52°C to +177°C (-62°F to +350°F)
- Cable/Connector: -51°C to +260°C (-60°F to +500°F)
- Pressure Seal: Viton® O-ring (untested; custom testing available)
Installation & Compatibility
- Max Thread Engagement: 15 mm (M10x1)
- Cable Requirements: 3-conductor shielded triad (16–24 AWG)
- System Integration: Compatible with 3300 XL Proximitors and ATEX-certified barriers per drawing 141092/140979
Certifications & Safety
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 Ga (Zone 0)
- Non-Incendive: AEx/Ex ec/nA IIC T1-T5 Gc (Zone 2)
Industrial Applications
- Wind turbine gearbox vibration analysis
- Food processing conveyor bearing health monitoring
- Mining crusher shaft alignment verification
Contact Technical Team: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
