Description
Description

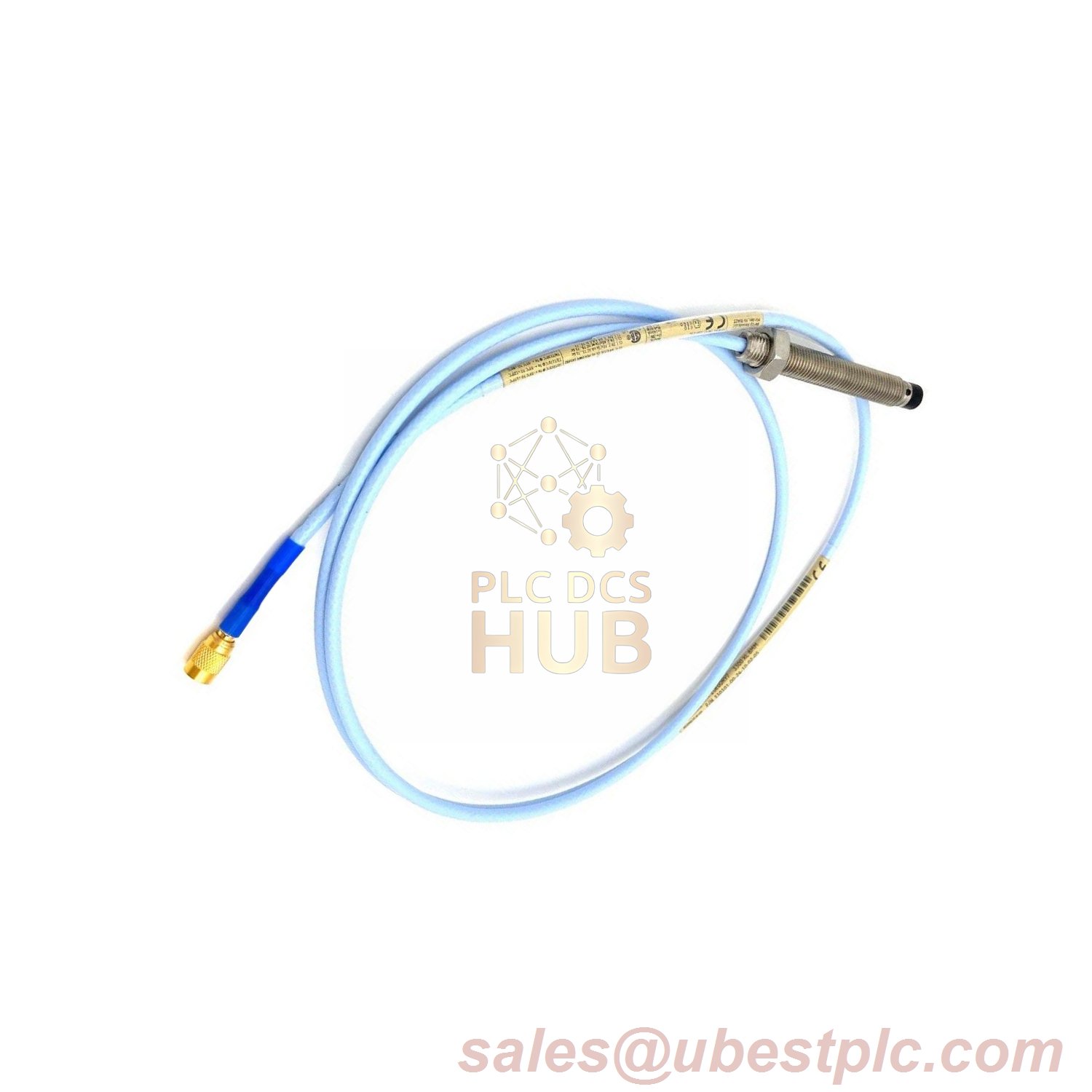

The 330104-00-12-10-02-00 is a heavy-duty armored proximity probe designed for industrial vibration monitoring. Featuring an M10 x 1 thread, 1.0 m armored cable, and 120 mm case length, it delivers reliable performance in harsh environments. With a Viton® O-ring seal and PPS probe tip, it is ideal for non-hazardous applications requiring precision and durability.
Technical Specifications
| Model | 330104-00-12-10-02-00 |
|---|---|
| Suffix Codes | 00: 0 mm unthreaded length 12: 120 mm case length 10: 1.0 m total length 02: Miniature ClickLoc™ connector 00: No agency approvals |
| Electrical | Power: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω Probe Resistance (1.0 m): 7.59 Ω ±0.50 |
| Material | PPS probe tip | AISI 303/304 SST case |
| Sealing | Viton® O-ring (differential pressure rated) |
Contact Information
For COO or technical inquiries:
Email: sales@ubestplc.com
