Description
Product Description

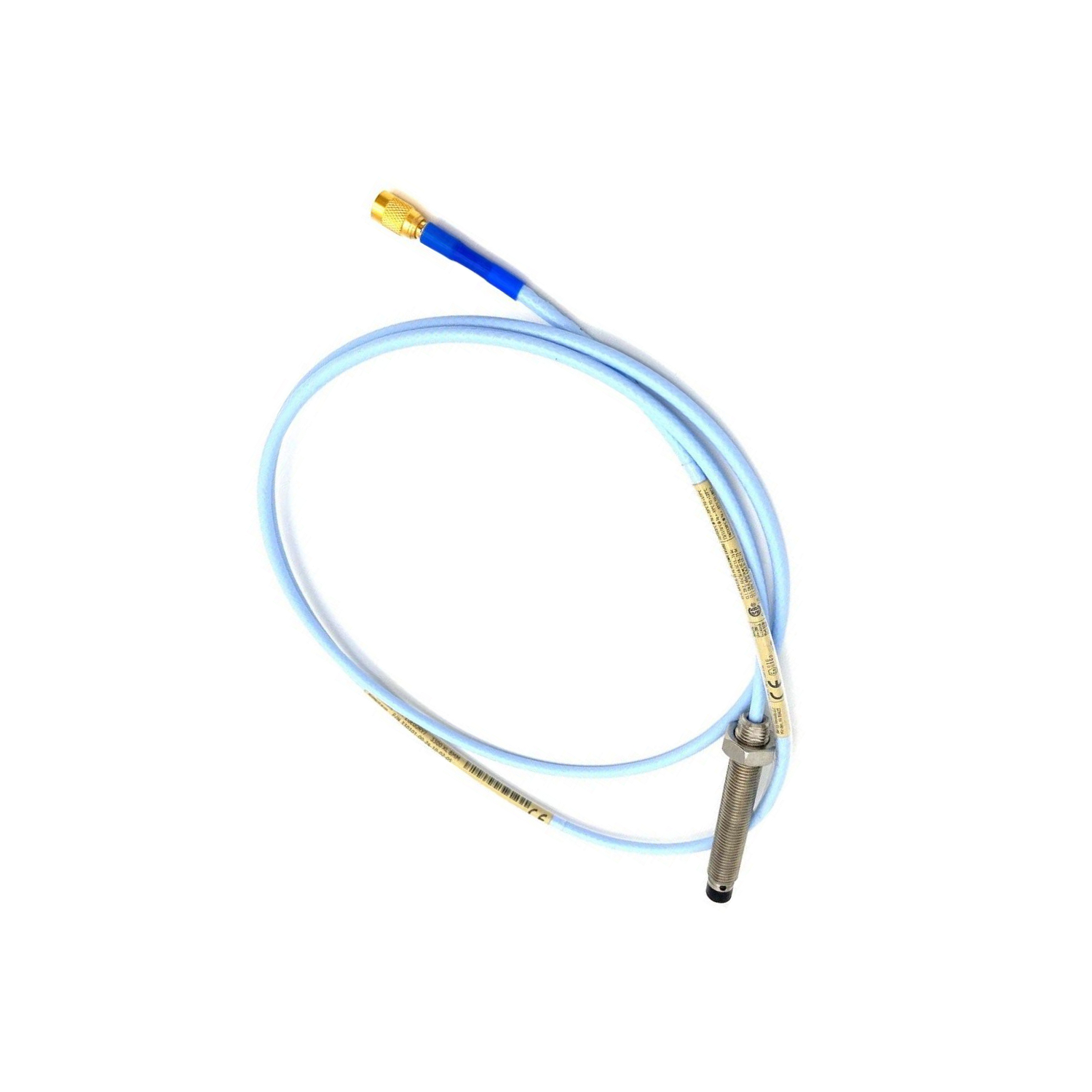

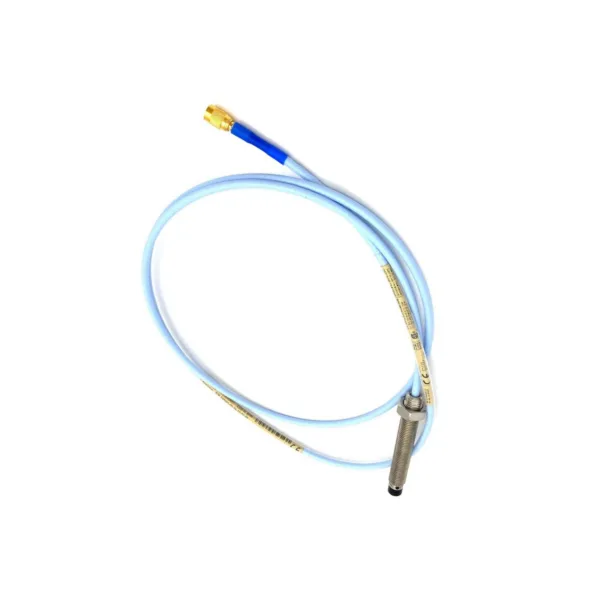

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330104-01-05-50-02-00) is designed for precise vibration and position monitoring in industrial machinery. Featuring a durable AISI 303/304 stainless steel case and PPS probe tip, it ensures reliability in harsh environments. Includes a 5.0-meter cable with a Miniature Coaxial ClickLoc connector for secure connections.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330104-01-05-50-02-00 |
| Suffix Details | Unthreaded Length: 01 mm Case Length: 05 mm Cable Length: 5.0 m (16.4 ft) Connector: ClickLoc Mini-Coax Approvals: 00 (Not Required) |
| Range | 1.27 mm (50 mils gap) |
| Accuracy | ±0.50 Ω (DC Resistance) |
| Output | -2 Vdc to -18 Vdc (50 Ω) |
| Temperature | +18°C to +27°C (+64°F to +80°F) |
| Power | -17.5 Vdc to -26 Vdc |
Installation Guide
- Use M10x1 threaded mounting.
- Ensure Viton® O-ring seals pressure differentials.
- Gap probe at 1.27 mm from AISI 4140 steel target.
Compatibility
- Works with 3300 XL 8 mm Proximitor systems.
- Requires 10 kΩ load for optimal performance.
Certifications
- No agency approvals required (Option 00).
Package Includes
- 8 mm Proximity Probe
- ClickLoc Connector & Cable
- Installation Manual
Warranty
1-year limited warranty against manufacturing defects.
Application Examples
- Industrial Turbines: Vibration monitoring for rotor shafts.
- Pump Systems: Position detection in high-pressure environments.
