Description

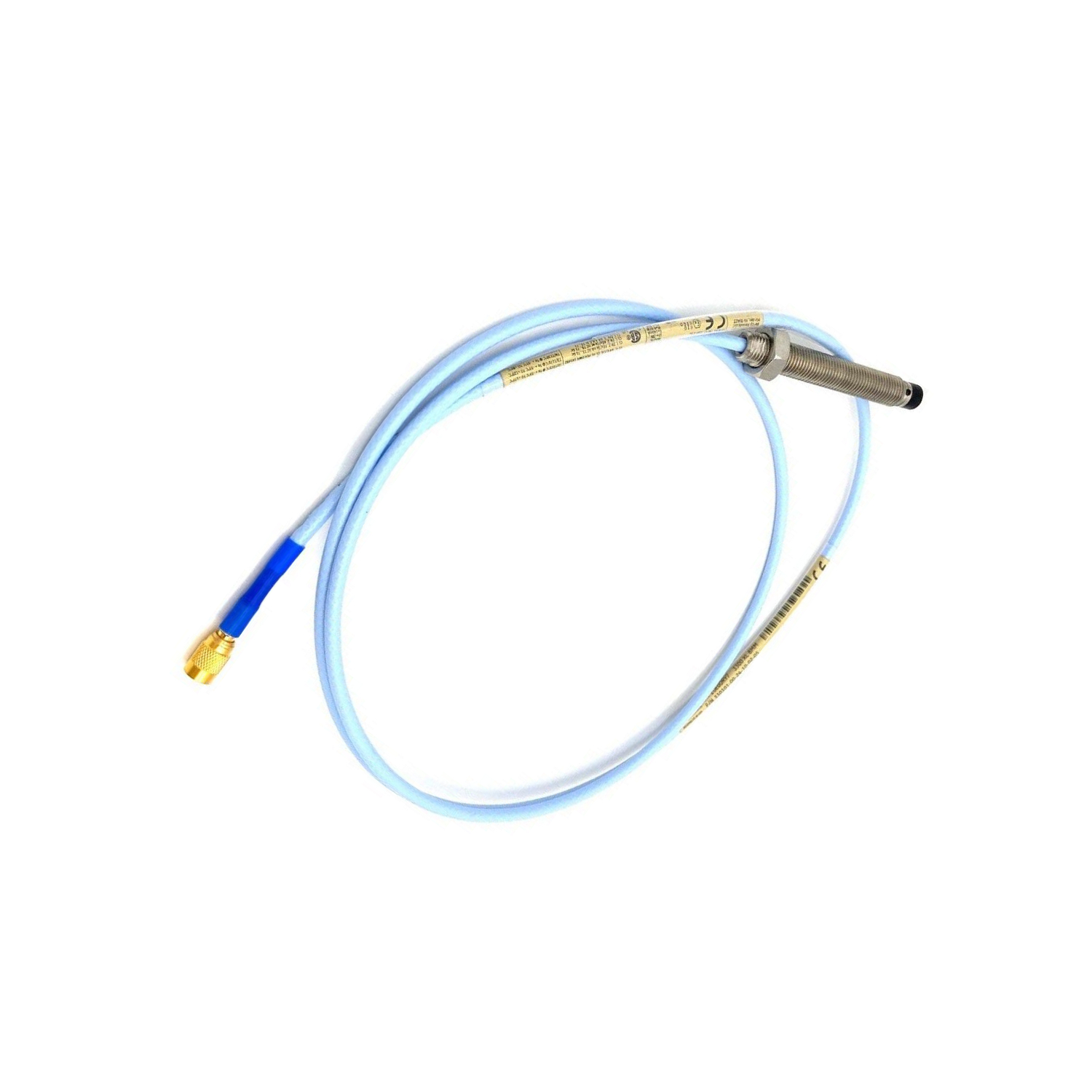

Bently Nevada Probe 330104-03-09-50-02-CN
| Part Number Details | 330104-03-09-50-02-CN 03 = 3mm Unthreaded 09 = 9mm Case Length 50 = 5.0m Cable (16.4 ft) 02 = ClickLoc Connector CN = Country-Specific Certification |
Technical Data
| Electrical Specs | Voltage: -17.5V to -26V DC Resistance: 8.73Ω ±0.50 Sensitivity: <2mV/V Max Current: 12mA |
| Physical Specs | Cable Pull Strength: 75 lbs (330N) Max Torque: 5 in-lb Weight: 11.4 oz per foot Temp Range: -55°C to +232°C |
Design & Materials
| Component | Details |
| Probe Tip | PPS Plastic (Heat/Chemical Resistant) |
| Case | AISI 303/304 Stainless Steel |
| Seal | Viton® O-Ring (Leakproof) |
| Cable | FEP Insulation (Standard) |
Industrial Use Cases
| Industry | Application |
| Food Processing | Conveyor belt speed monitoring |
| Water Treatment | Pump shaft vibration detection |
| Automotive | Engine assembly line alignment |
Certifications & Safety
| Certification | Details |
| ATEX/IECEx | Ex ia IIC T1-T5 (Zone 0 Hazardous Areas) |
| EPL Ratings | Ga (Gas) / Gc (Dust) |
| Local Compliance | Meets CN country-specific standards |
Installation Guide
| Step | Action |
| 1 | Use with 5m Proximitor Sensor only |
| 2 | Follow wiring diagram 140979 |
| 3 | Max torque: 5 in-lb (connector) |
| 4 | Contact: sales@ubestplc.com |
