Description

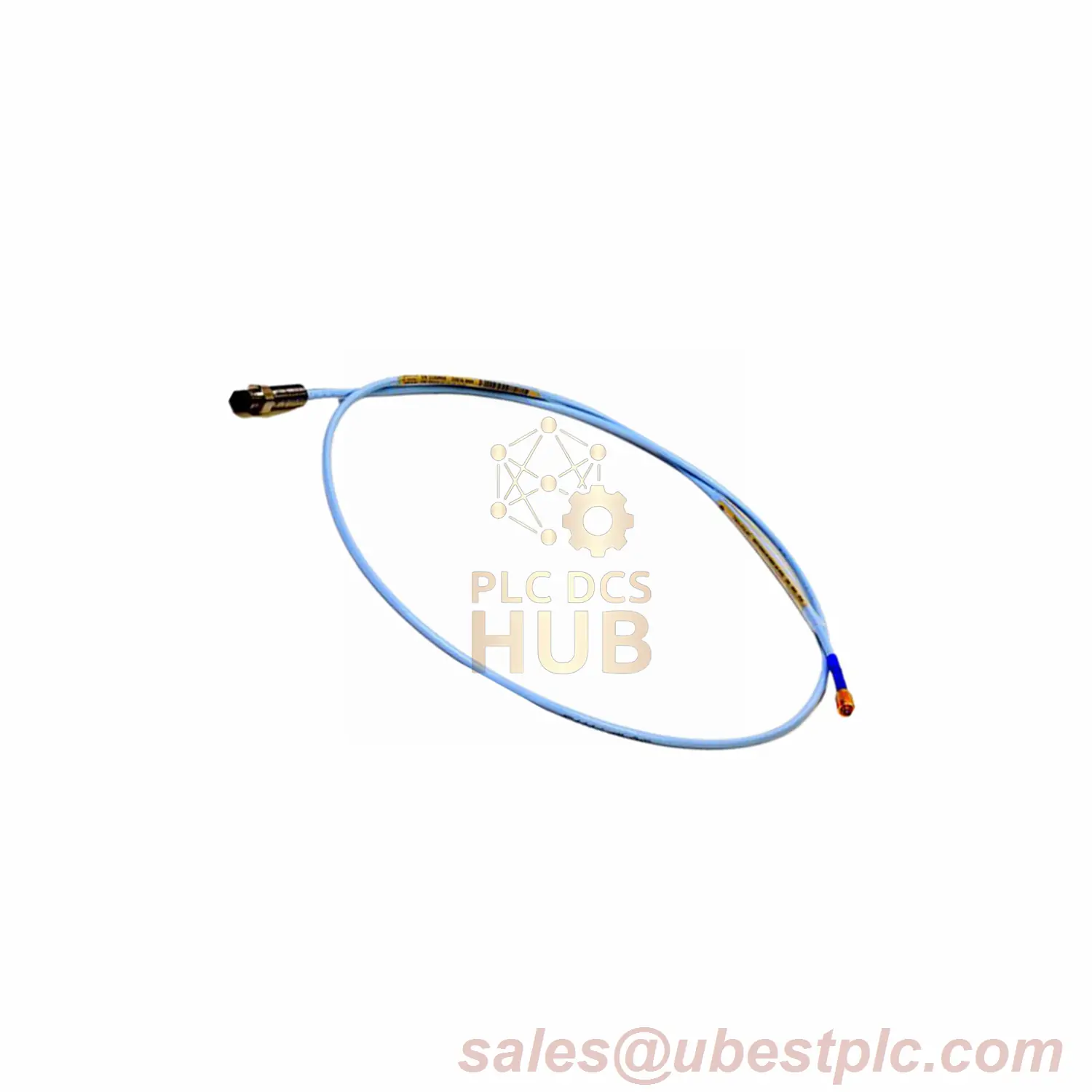

Bently Nevada 3300 XL 8mm Reverse Mount Probe with FluidLoc Technology
Core Specifications
| Manufacturer | Bently Nevada | Resistance | 7.45Ω ±0.50 |
| Full Model Number | 330106-05-30-05-12-00 | Thread Size | M10x1 |
| Cable Length | 0.5m (1.6 ft) | Max Thread Engagement | 15mm |
| Connector Type | Miniature ClickLoc with FluidLoc | Weight Density | 323 g/m (11.4 oz/ft) |
Suffix Decoder
- 330106: Probe series
- 05: Mounting configuration
- 30: Measurement range
- 05: 0.5m cable length
- 12: FluidLoc connector
- 00: No agency approvals
Performance Data
- Temperature Resilience:
- Standard: -52°C to +177°C
- Extended: +218°C tip / +260°C cable
- Humidity Endurance: <3% ASF change at 93% RH (IEC 68-2-3)
- Pressure Sealing: Viton® O-ring design (custom testing available)
- Tensile Strength: 330N at probe case
Construction Details
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Insulation | FEP (Standard) / PFA (High Temp) |
| Connector Finish | Gold-plated brass/beryllium copper |
Installation Notes
- Max cable pull force: 270N at connectors
- Critical temperature threshold: -34°C (seal protection)
- FluidLoc connector designed for immersion environments
Shipping & Support
- Includes probe and documentation
- 12-month performance warranty
- Global delivery: FedEx Priority, UPS Saver, DHL Express
Technical FAQ
Q: When is FluidLoc connector necessary?
A: Recommended for direct fluid exposure applications without protective sleeves
Q: Can I order armored cable?
A: Optional SST armor with FEP jacket available (specify when ordering)
Q: Minimum bend radius for cable?
A: 25mm continuous bend radius recommended
Q: Humidity impact on readings?
A: Certified <3% ASF variance after 56 days at 93% RH
