Description
Description

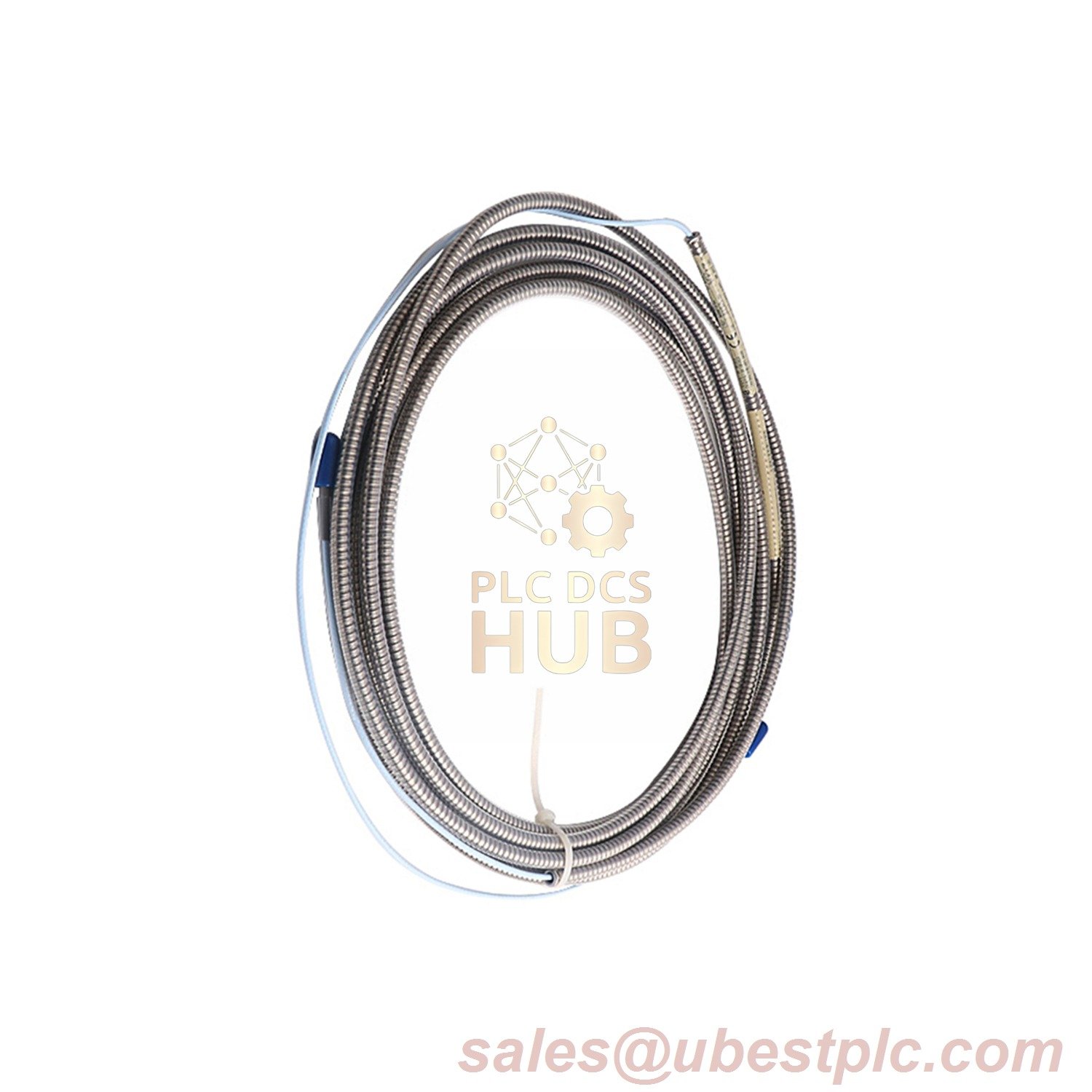

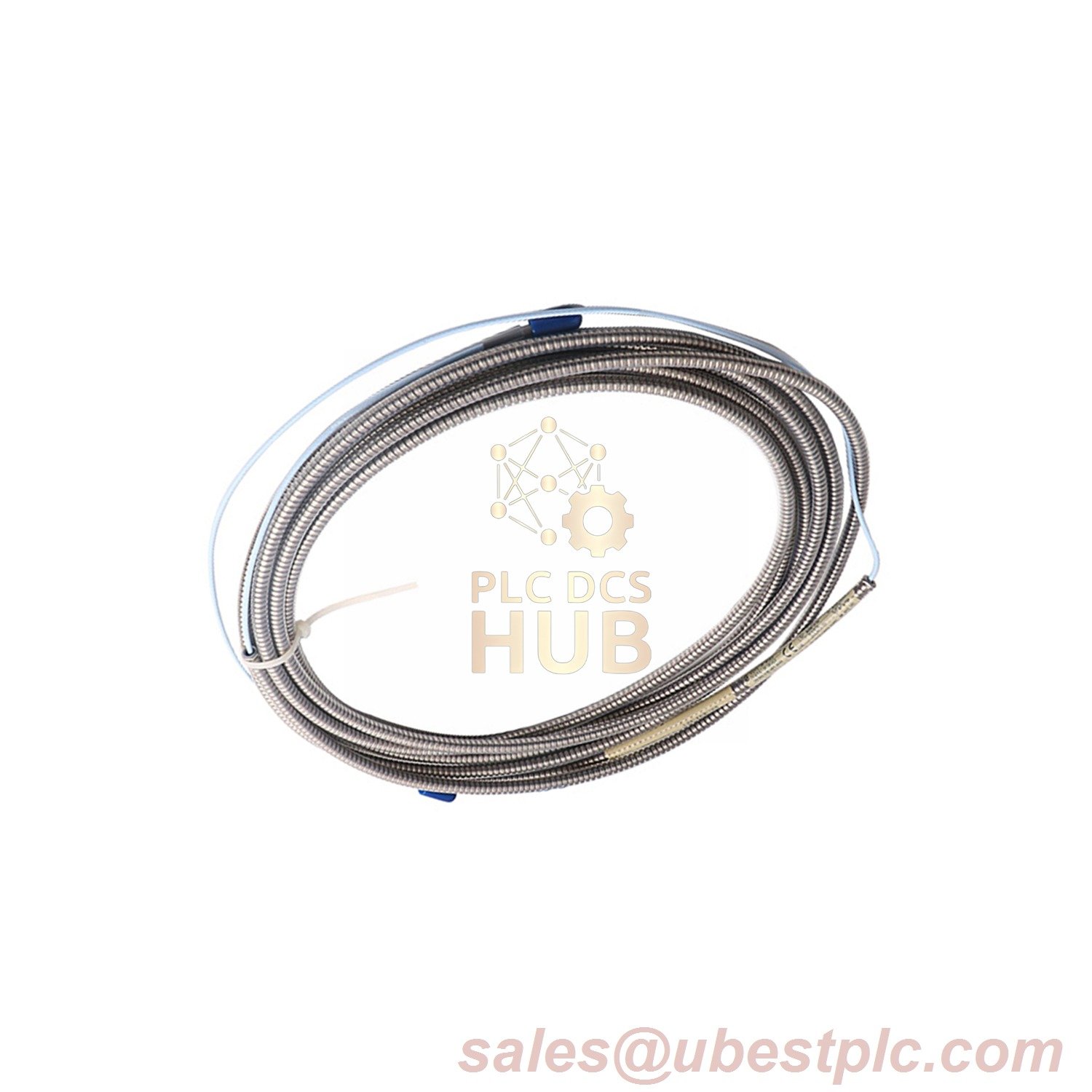

The Bently Nevada 330130-045-13-00 is a premium armored FluidLoc extension cable engineered for extreme industrial environments requiring oil resistance and mechanical robustness. Featuring 4.5 meters (14.8 feet) of 316L stainless steel armored FluidLoc cable with a built-in connector protector, this cable integrates patented CableLoc and FluidLoc technologies to deliver 330 N (75 lbf) pull strength, IP69K fluid resistance, and precision signal transmission. Designed for non-hazardous applications (suffix -00), it excels in oil, vibration, and temperature extremes.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-045-13-00 |
| Suffix Breakdown | -045 (4.5 m cable),
-13 (Armored FluidLoc + connector protector), -00 (no approvals) |
| Product Type | Armored FluidLoc Extension Cable with Connector Protector |
| Cable Length | 4.5 meters (14.8 feet) |
| DC Resistance (RCORE) | 0.99 ± 0.15 Ω (center-to-center conductor) |
| DC Resistance (RJACKET) | 0.30 ± 0.06 Ω (outer-to-outer conductor) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Insulation Resistance | ≥5 GΩ at 500 V DC (after 56 days at 93% humidity) |
Contact Information
For pricing or customization, email sales@ubestplc.com
Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
