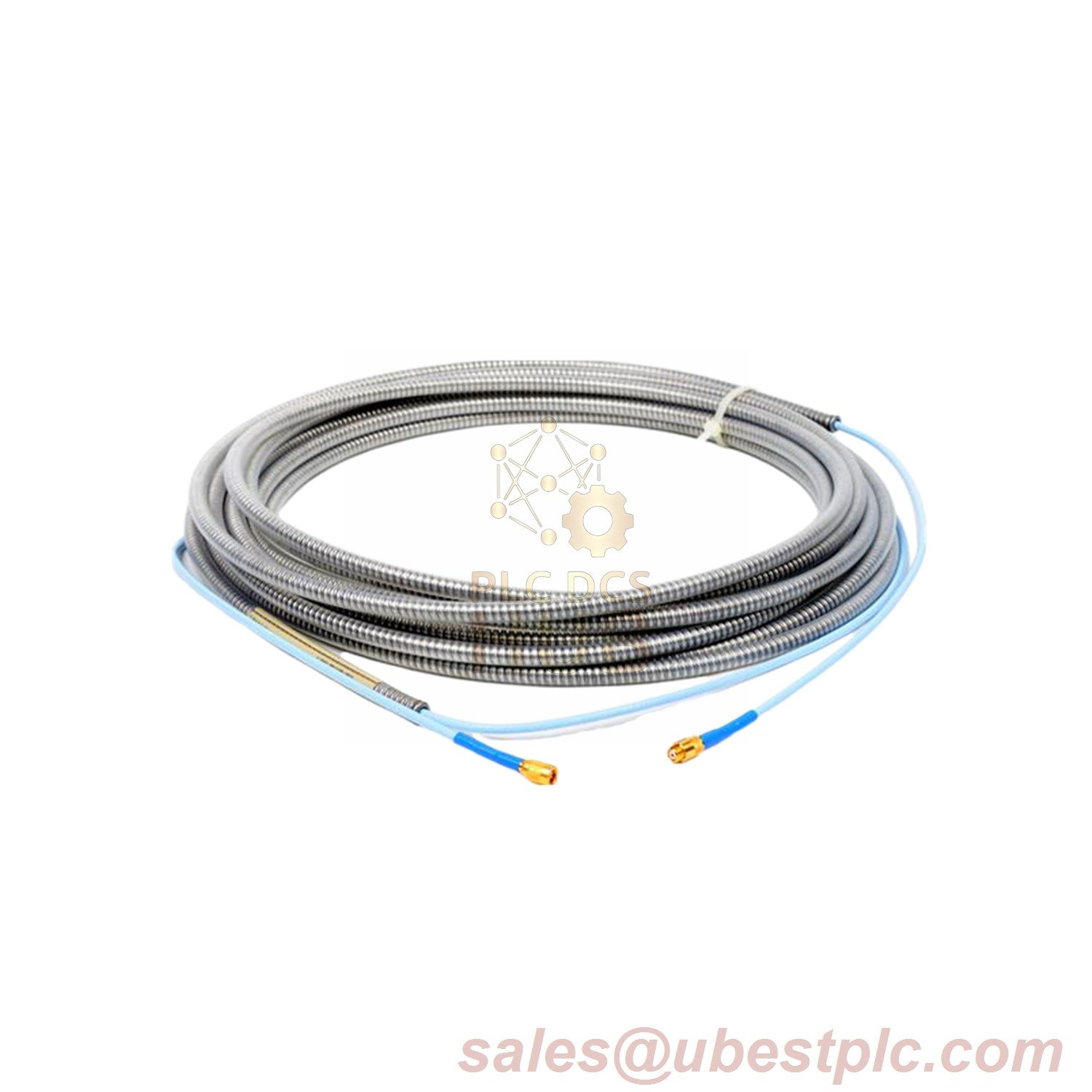

???? Bently Nevada 330130-080-01-05 Extension Cable – 8.0m | Armored | CSA, ATEX, IECEx
???? Product Description
The Bently Nevada 330130-080-01-05 is a high-quality extension cable from the 3300 XL series, engineered for reliable connectivity between Proximitor sensors and 8 mm proximity probes. It features armored protection, supports global approvals (CSA, ATEX, IECEx), and is designed to withstand harsh industrial environments.
???? Technical Specifications
- Brand: Bently Nevada
- Model: 330130-080-01-05
- Series: 3300 XL
- Type: Armored Extension Cable
- Cable Length: 8.0 meters (26.2 feet)
- Weight: 0.824 kg (1.82 lb)
- Cable Capacitance: 69.9 pF/m (typical)
- DC Resistance (Center): 1.76 Ω ± 0.26
- DC Resistance (Outer): 0.53 Ω ± 0.11
- Operating Voltage: -17.5 Vdc to -26 Vdc
- Current Consumption: Max 12 mA
- Output Resistance: 50 Ω
- Recommended Load: 10 kΩ
- Temperature Range: +18°C to +27°C
- Altitude: ≤ 2000 meters
- Humidity Resistance: < 3% change in ASF at 93% RH for 56 days (IEC 68-2-3)
- Approvals: CSA, ATEX, IECEx
???? Installation Guide
- Includes silicone tape as an alternative to connector protectors.
- Do not use silicone tape if exposed to turbine oil.
- Ensure total system length (probe + extension) equals Proximitor Sensor total length.
- Field wiring: 0.2–1.5 mm² (16–24 AWG), 3-conductor shielded triad recommended.
???? Packaging List
- 1 × Bently Nevada 330130-080-01-05 Extension Cable (8.0m)
- Silicone tape (for optional connector protection)
???? Shipping Methods
- FedEx
- UPS
- DHL
❓ FAQ
- Q: Can this cable be used with non-3300 XL systems?
A: No, it is designed only for 3300 XL 8 mm systems. - Q: Is the cable certified for hazardous environments?
A: Yes, it includes CSA, ATEX, and IECEx approvals. - Q: Can I request a Certificate of Origin?
A: Yes, we can provide a COO upon request. - Q: What is the warranty?
A: This product includes a 12-month warranty.
