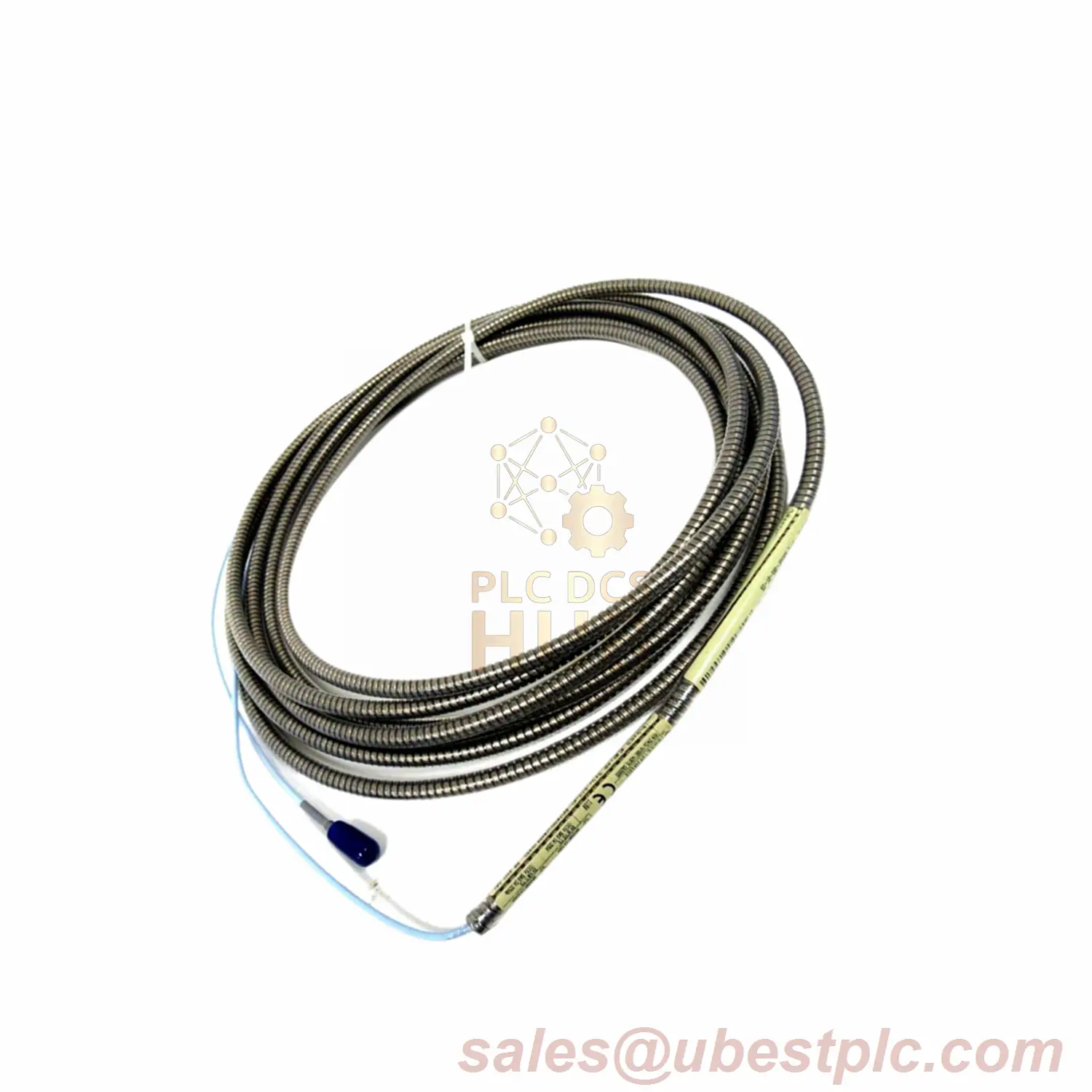

Bently Nevada Armored Extension Cable: High-Performance Connectivity for Industrial Sensors
Product Description
Precision-engineered extension cable (P/N: 330130-080-01-00) for Bently Nevada 3300 XL systems. Features armored construction for harsh environments and patented CableLoc technology with 330N (75 lbf) pull strength. Made in USA with optional COO certificate.
Key Features
- Armored cable protection (Code: 01)
- 8.0 meters length (Code: 080)
- FluidLoc option prevents oil leakage
- Includes silicone tape for connections
- No approval requirements (Code: 00)
Technical Specifications
| Brand | Bently Nevada |
| Model | 330130-080-01-00 |
| Resistance (RCORE) | 1.76Ω ± 0.26Ω |
| Resistance (RJACKET) | 0.53Ω ± 0.11Ω |
| Voltage Range | -17.5Vdc to -26Vdc |
| Linear Range | 2.0 mm (80 mils) |
| Weight (Armored) | 0.824 kg |
Installation Guide
- Probe + extension cable must equal total system length
- Use 3-conductor shielded triad cable (0.2-1.5mm²)
- Max field wiring: 305 meters
- Avoid silicone tape in turbine oil applications
FAQ
Q: Temperature operating range?
A: Performance verified at +18°C to +27°C (+64°F to +80°F)
Q: Shipping options?
A: FedEx, UPS, DHL express delivery
Q: Warranty included?
A: 12-month manufacturer warranty
Packaging Includes
- Extension cable with connectors
- Silicone tape kit
- Installation manual
