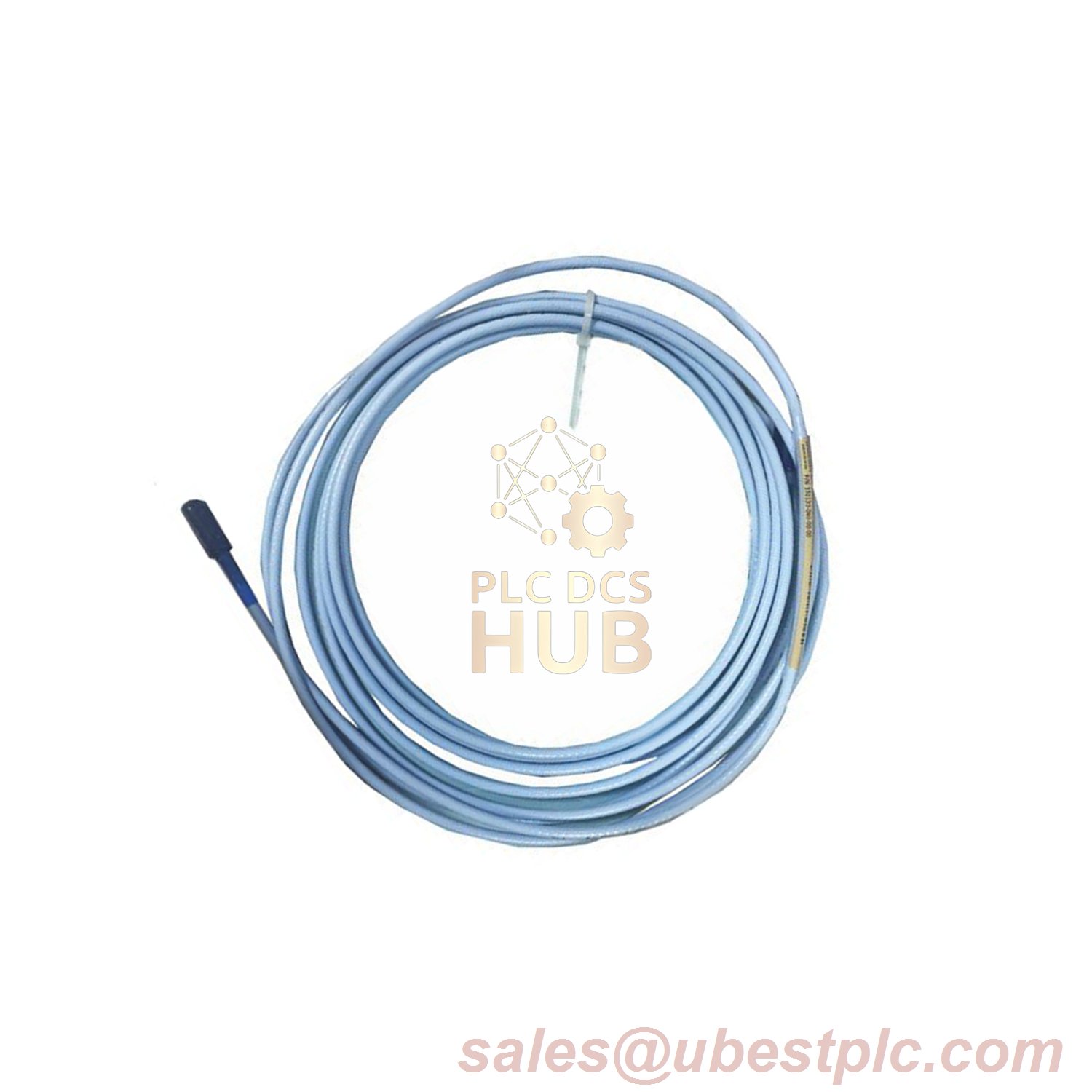

Bently Nevada 3300 XL FluidLoc® Extension Cable: Precision & Durability for Critical Machinery
Description
Industrial-grade extension cable for vibration/turbine monitoring. Made in USA with FluidLoc® sealing to prevent oil leakage. Includes silicone tape + connector protector. Add Certificate of Origin (COO) if required.
Technical Data
- Brand: Bently Nevada
- Model: 330130-080-12-00
- Series: 3300 XL
- Cable Length: 8.0m (26.2 ft)
- Cable Type: FluidLoc® with protector (Option 12)
- Weight: 0.272 kg
- DC Resistance (Core): 1.76Ω ±0.26Ω
- DC Resistance (Jacket): 0.53Ω ±0.11Ω
- Capacitance: 69.9 pF/m
Core Specifications
- Linear Range: 0.25–2.3mm (10–90 mils)
- Power Supply: -17.5Vdc to -26Vdc
- Output Resistance: 50Ω
- Operating Temp: +18°C to +27°C (64°F–80°F)
- Field Wiring: 0.2–1.5mm² (max 305m)
- Humidity Resistance: <3% deviation (93% RH, 56 days)
Installation Guide
- Total Length = Probe + Extension Cable
- Avoid silicone tape in turbine oil environments
- Use shielded triad cable (16–24 AWG)
- Patented CableLoc® withstands 330N (75 lbf) pull force
Troubleshooting
- Reduced linear range? → Ensure voltage ≥-23.5Vdc
- Signal interference? → Verify shielded wiring & max 305m length
- Oil leakage? → Use FluidLoc® seals (included)
Packaging List
- FluidLoc® extension cable (8.0m)
- Connector protector
- Silicone tape (backup)
- Shipping: FedEx, UPS, or DHL
FAQ
Q: Pressure rating for oil environments?
A: Viton® O-ring seals differential pressure (not pre-tested). Contact for custom validation.
Q: Compatible with non-3300 XL systems?
A: Specs apply only to full 3300 XL 8mm systems with AISI 4140 steel targets.
Q: Armored vs. standard cable?
A: Standard weight: 0.272kg (armored: 0.824kg). This model is non-armored.
