330140-08-50-01-05 Bently Nevada – 3300 XL 8 mm Proximity Probes

Description

Description

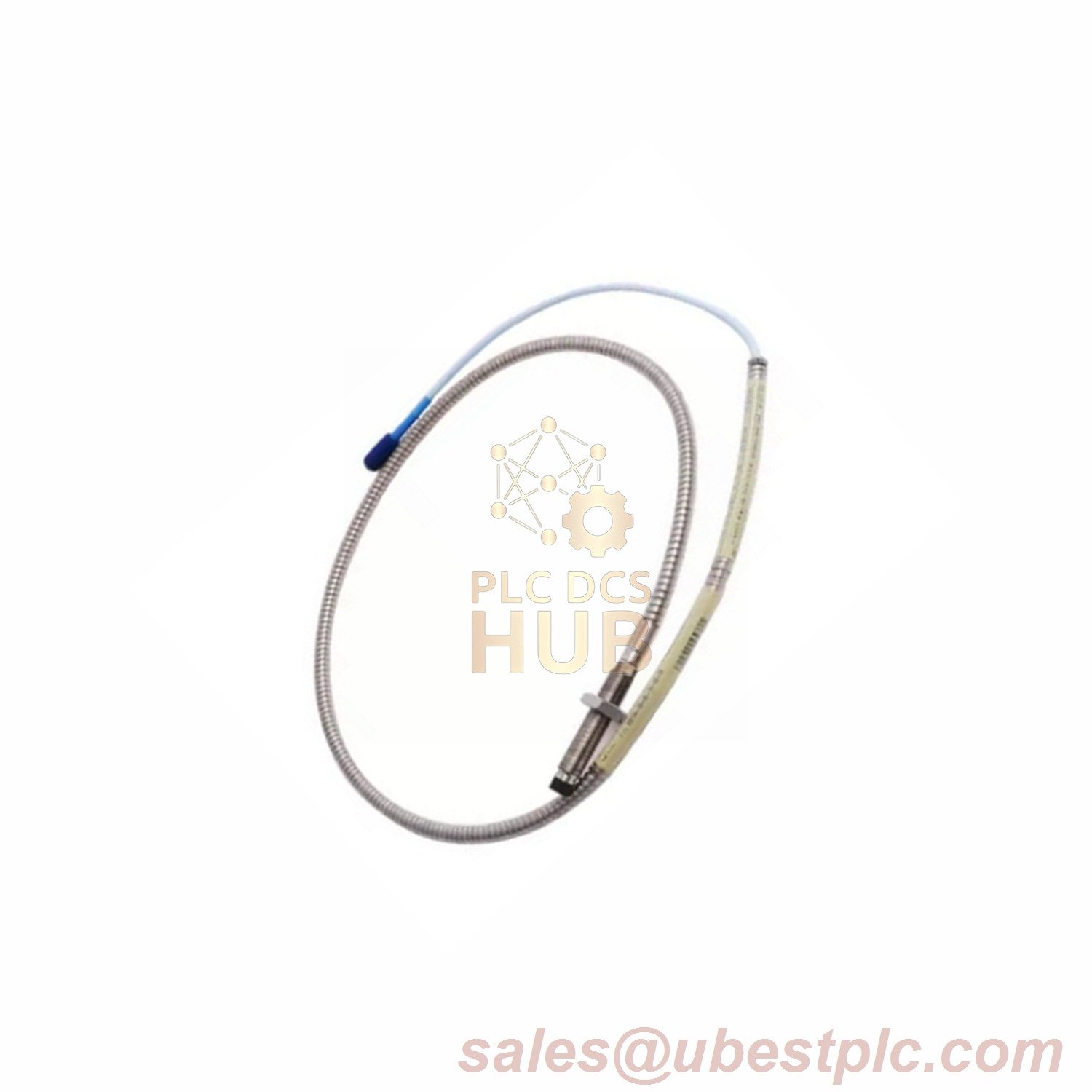

The Bently Nevada 330140-08-50-01-05 is a 3300 XL 8 mm Proximity Probe engineered for extreme industrial environments. Featuring a rugged 8 mm PPS tip and 5.0 m (16.4 ft) armored cable, this probe delivers precision vibration monitoring with enhanced durability. Certified for CSA/ATEX/IECEx compliance, it incorporates patented TipLoc™ and CableLoc™ technologies for superior mechanical integrity and resistance to physical stress.

Technical Specifications

• Model: 330140-08-50-01-05
• Part Number Breakdown:
  • -08: 0.8 in (20.32 mm) case length
  • -50: 5.0 m (16.4 ft) cable length
  • -01: ClickLoc™ connector with protector + standard cable
  • -05: CSA/ATEX/IECEx certified
• Electrical:
  • DC Resistance: 8.73 Ω ±0.50 (5.0m length)
  • Scale Factor (ISF):
    • 5m System: 7.87 V/mm (±5%)
    • 9m System: 7.87 V/mm (±6.5%)
    • Extended Temp: 7.87 V/mm (±6.5%)
  • Linearity (DSL):
    • 5m System: ±0.025 mm (±1 mil)
    • 9m/Extended Temp: ±0.038 mm (±1.5 mil)
• Mechanical:
  • Tip Material: PPS (8 mm rugged encapsulation)
  • Case Material: AISI 303/304 SST
  • Cable Strength: 330 N (75 lbf) pull resistance (CableLoc™)
  • Weight: 323 g/m (11.4 oz/ft)

Key Applications

• Heavy-duty turbomachinery in oil & gas facilities
• High-vibration environments requiring rugged probes
• ATEX/IECEx Zone 1/21 hazardous areas

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
