Description
Overview

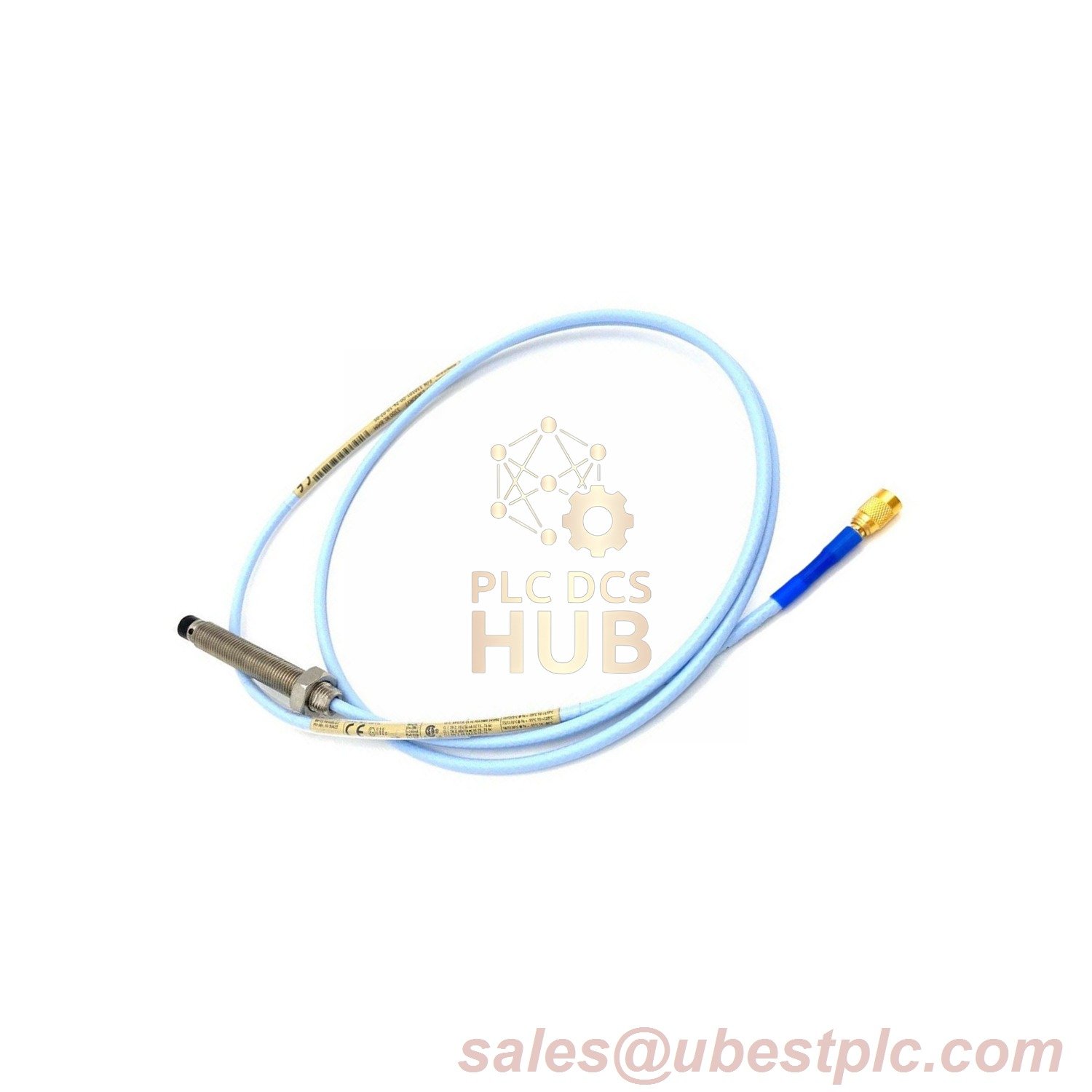

The Bently Nevada 330141 8 mm Probe (Product No. 330141-08-15-02-00) combines industrial-grade precision with armored protection for extreme conditions. Featuring a 1.5-meter cable and ClickLoc connector, it is built to withstand physical stress, vibration, and abrasion. The armored casing enhances durability, while the patented TipLoc and CableLoc technologies ensure secure connections. Ideal for machinery in high-impact or corrosive environments, this probe delivers reliable vibration and positional monitoring.
Technical Specifications
- Brand: Bently Nevada
- Model: 330141 8 mm Armored Probe
- 330141-08-15-02-00 Suffix Breakdown:
- 08: 0.8-inch armored case length
- 15: 1.5-meter cable (4.9 feet)
- 02: ClickLoc connector (no protector)
- 00: No certifications required
- DC Resistance: 7.78 Ω ±0.48 (1.5m cable)
- Scale Factor (ISF):
- Standard (1/5m): 7.84 V/mm ±4.6%
- Extended (9m): 7.84 V/mm ±6.2%
- Deviation from Straight Line (DSL):
- Standard (1/5m): < ±0.024 mm (±0.95 mil)
- Extended (9m): < ±0.036 mm (±1.42 mil)
- Materials: PPS tip, AISI 316L stainless steel armored case
- Temperature Range:
- Standard: -55°C to +180°C (-67°F to +356°F)
- Extended: -55°C to +220°C (tip); -58°C to +265°C (cable/connector)
- Weight: 330 g/m (11.6 oz/ft)
- Pull Strength: 340 N (76.4 lbf) via CableLoc
- Humidity Tolerance: < 2.5% ASF shift at 95% humidity (IEC 68-2-3, 57 days)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
