Description

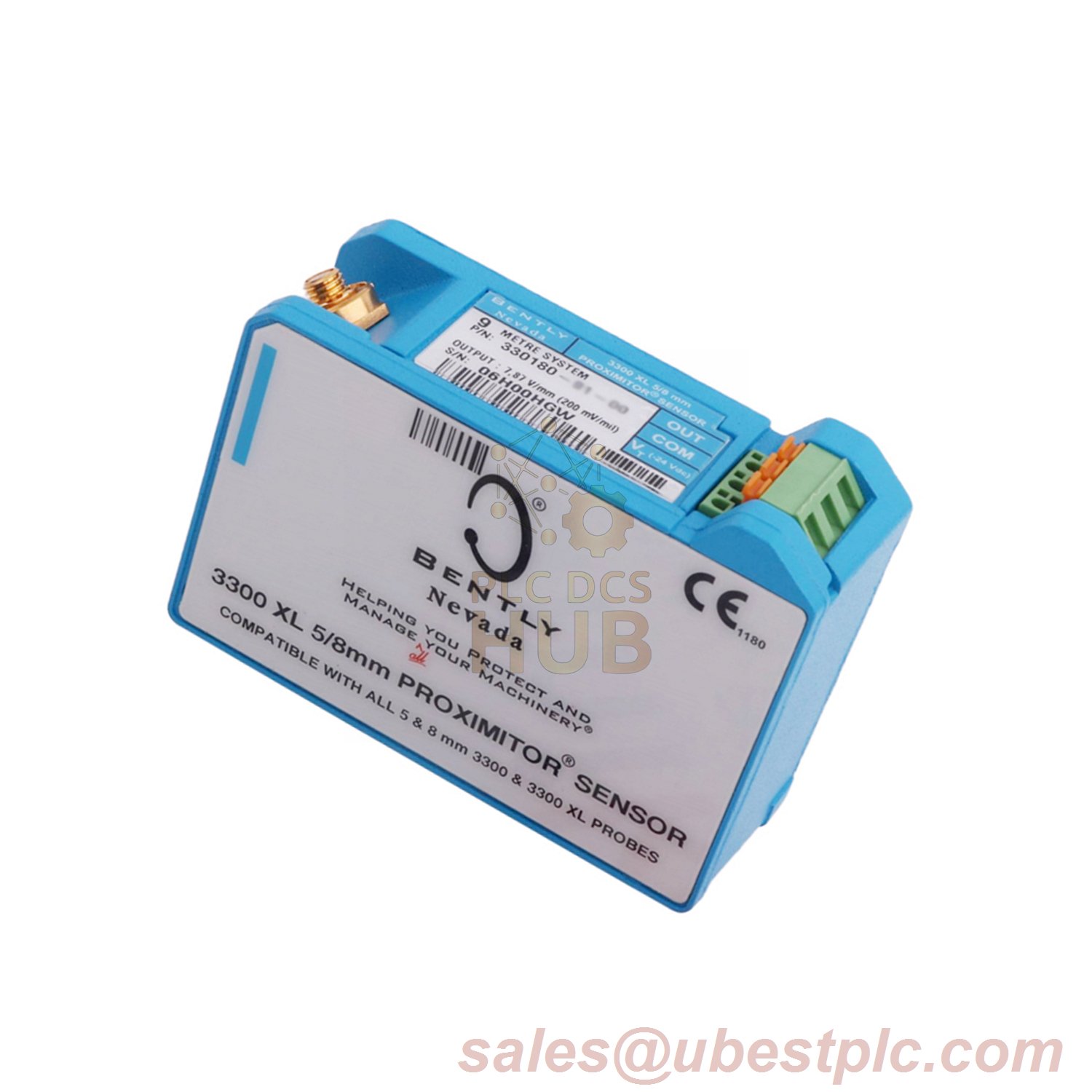

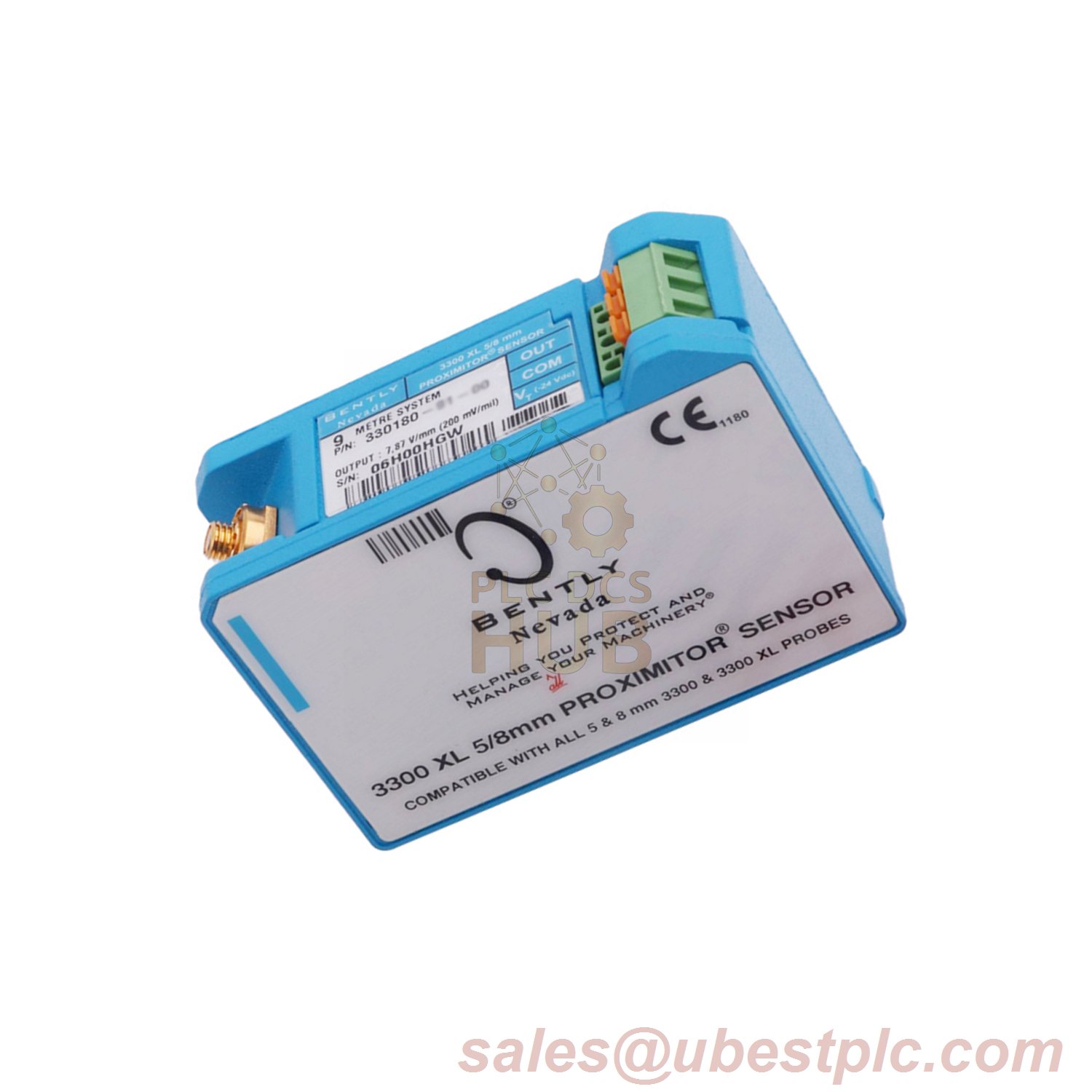

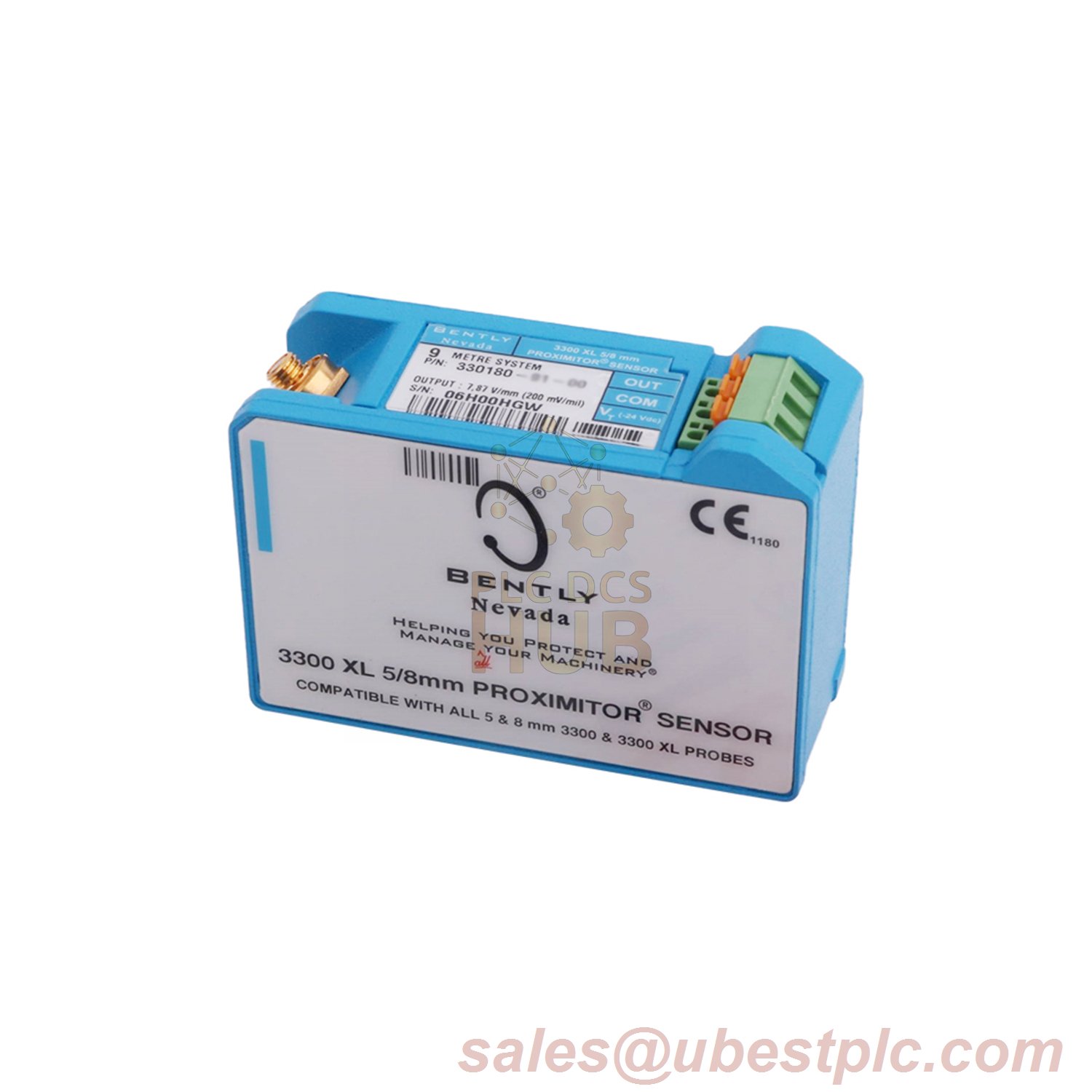

Bently Nevada 3300 XL Proximitor Sensor
Made in the U.S.A., the 3300 XL Proximitor Sensor 330180-91-00 offers a 9.0-meter DIN-rail mounted system for high-density industrial installations. Engineered with RFI/EMI immunity and SpringLoc terminals, it simplifies wiring in fiberglass enclosures while eliminating the need for shielded conduit.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330180-91-00 |
| Suffix Codes | 91: 9.0 m System Length, DIN Mount 00: No Agency Approvals Required |
| Input Compatibility | 3300-series 5 mm & 3300 XL 8 mm Probes |
| Power Requirements | -17.5 Vdc to -26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| Material | A308 Aluminum Housing |
| Weight | 246 g (8.67 oz) |
| Temperature Range | Operating: -52°C to +100°C Storage: -52°C to +105°C |
Contact Us: For technical support or customization, email sales@ubestplc.com.
