Description
Product Description

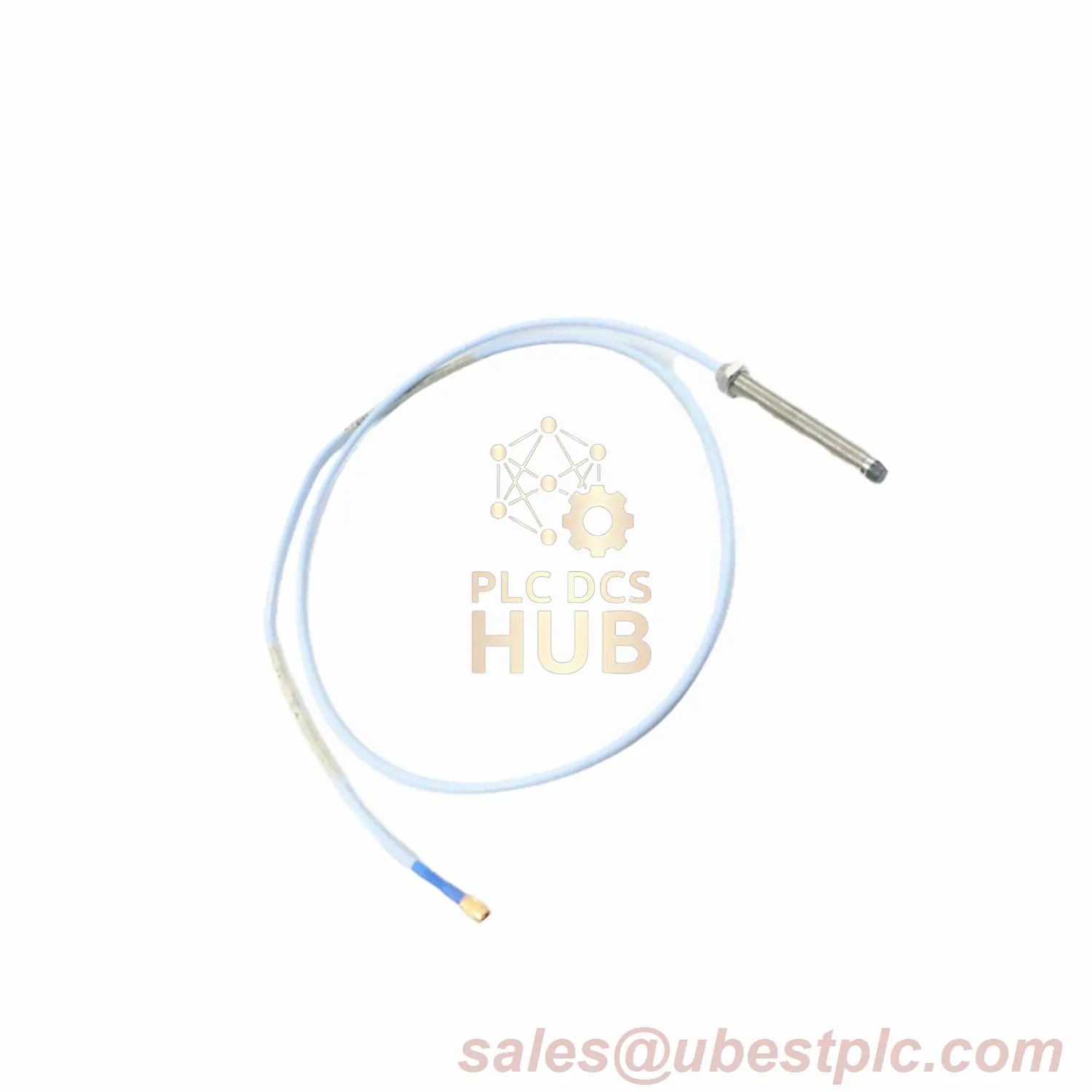

The Bently Nevada 3300 XL 8 mm ETR Probe (Part No. 330191-00-08-05-05) is a new, factory-sealed proximity sensor designed for rugged industrial environments. Featuring a 3/8-24 UNF thread and 0.5-meter cable, it offers enhanced durability with patented TipLoc and CableLoc designs for superior pull strength (330 N). Ideal for oil-sealed applications, optional FluidLoc prevents fluid leakage. Approved for hazardous areas with CSA, ATEX, IECEx certifications.
Technical Data
| Brand | Model | Output Signal | Accuracy | Operating Temp |
|---|---|---|---|---|
| Bently Nevada | 330191-00-08-05-05 | -17.5 to -26 Vdc | <2 mV/V | -55°C to +232°C |
Key Features
- Material: PPS probe tip, AISI 303/304 stainless steel case
- Cable: 75Ω triaxial (FEP/PFA insulation)
- Resistance: 7.45Ω ±0.50 (0.5m length)
- Certifications: CSA, ATEX, IECEx
Installation Guide
- Max torque: 0.565 N•m (5 in•lbf)
- Thread engagement: 0.563 in
- Use with Bently Nevada extension cables only
Compatibility
Works with BN Proximity Systems and certified barriers. Not compatible with 1-meter systems (no extension cable required).
Package & Warranty
- Factory-packed with 12-month warranty
- Includes Viton® O-ring seal
Applications
- Industrial machinery vibration monitoring
- Oil & gas equipment protection systems
- High-temperature rotating assets
Contact: For inquiries, email sales@ubestplc.com
