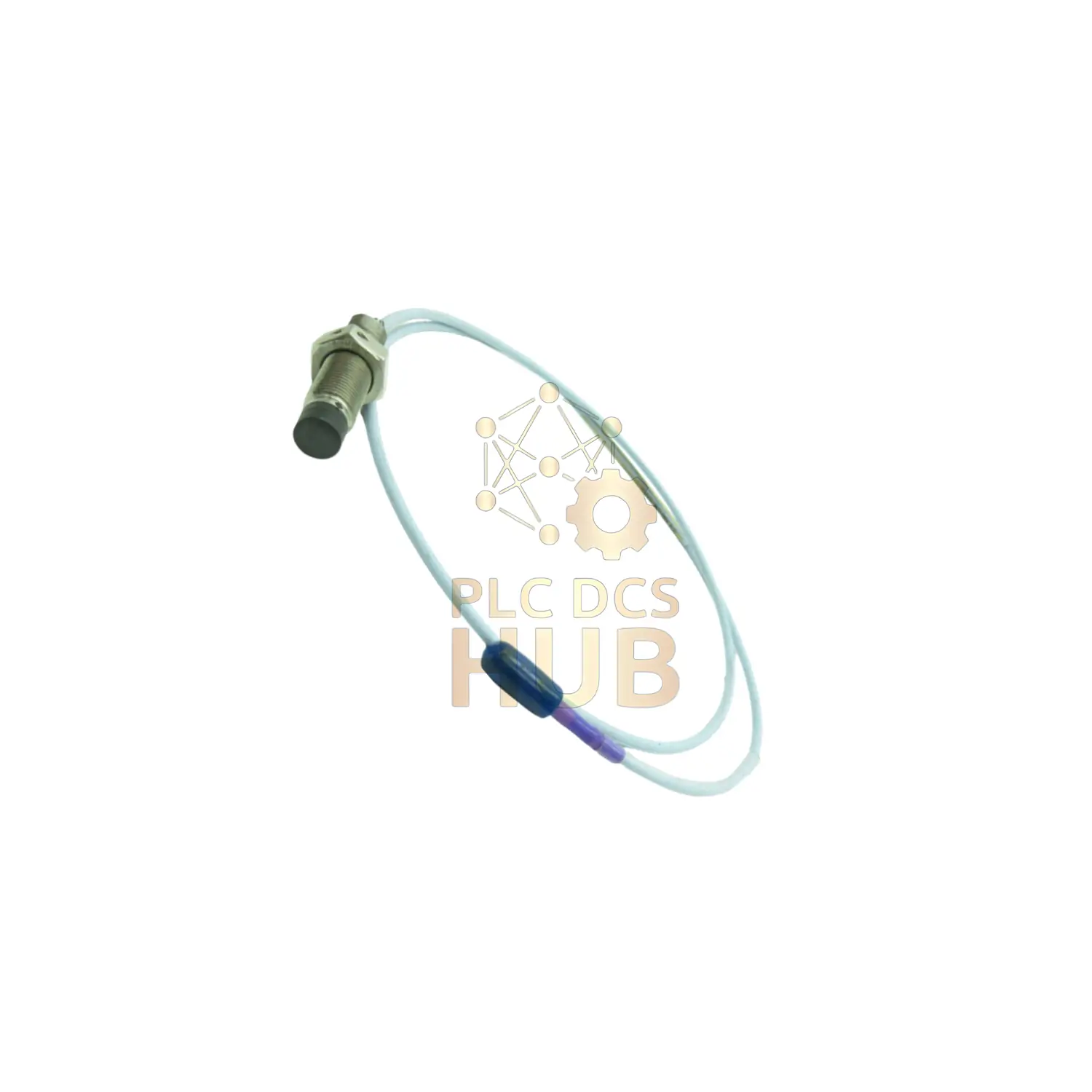

Bently Nevada 5m Proximity Probe: Essential Machine Health Monitor
Precision vibration sensor with connector protector for safer installations. Made in USA. Works with 5m Proximitor® systems only.
Complete Product Details
- Full Model: 330701-00-10-50-01-00
- 00: 0″ unthreaded section
- 10: 1.0″ case length
- 50: 5m cable length
- 01: ClickLoc connector with protector
- 00: No special approvals
- Key Measurements:
- Resistance: 7.2Ω ±0.8
- Min bend radius: 25.4mm (1 inch)
- Weight: 0.17kg (0.37 lbs)
- Durability Features:
- Case: 304 stainless steel
- Tip: Polyphenylene sulfide (PPS)
- Cable: FEP insulation
Installation Guide
- Max torque: 15.2 N•m (133 in•lb)
- Connector safety: Always use protector during install
- Temperature warning: Keep above -34°C (-30°F)
- Cable care: Avoid sharp bends near connector
Order Information
- Warranty: 12-month guarantee
- Shipping: FedEx • UPS • DHL (1-3 days)
- Origin: USA-made, COO available
Technical Questions
- Q: Does the connector protector need removal during use?
A: Yes – remove after installation to ensure proper connection - Q: What’s the maximum shaft speed it monitors?
A: Up to 20,000 RPM with proper calibration - Q: Can I use this in explosive environments?
A: No – not ATEX certified - Q: How often should probes be replaced?
A: Typically 3-5 years with normal use - Q: Is the cable oil-resistant?
A: Yes – FEP material resists most industrial oils
