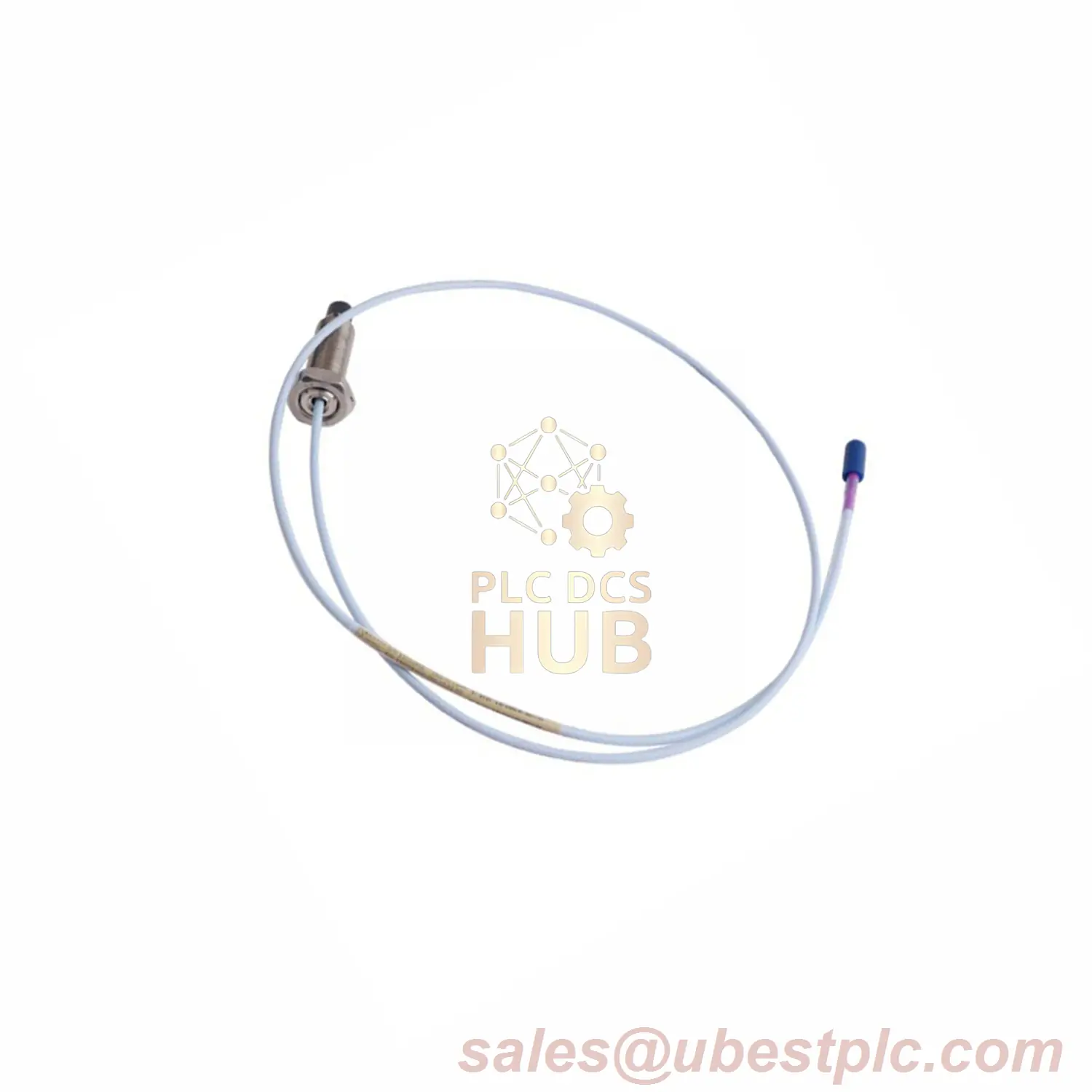

330701-00-10-90-01-00 Bently Nevada 3300 XL 11 mm Probe

Description

Bently Nevada 9m Sensor: Long-Distance Machine Guardian

Ultra-long 9-meter probe with built-in connector protection. Monitors distant equipment in extreme temperatures. Made in USA.

Product Identification

• Model: 3300 XL 11mm Proximity Probe
• Full Code: 330701-00-10-90-01-00
  • 330701: Base model
  • 00: No unthreaded section
  • 10: 1.0″ case
  • 90: 9m cable (29.5 ft)
  • 01: ClickLoc with protector
  • 00: Standard approval

Performance Specifications

• Electrical:
  • DC resistance: 8.5Ω ±1.1
  • Cable type: 75Ω triaxial FEP
• Mechanical:
  • Thread: 1/2-20 UNF
  • Min bend: 1 inch (25.4mm)
  • Weight: 0.17kg
• Environmental:
  • Temp range: -51°C to +177°C
  • Seal material: Viton O-ring
  • Tip material: PPS plastic

Installation Tips

• Keep connectors protected until final connection
• Apply max 15.2 N•m torque to case
• Maintain 1 inch cable bend radius
• Avoid below -34°C during storage

Order & Support

• Warranty: 12-month coverage
• Shipping: FedEx • UPS • DHL (2-5 days)
• Origin: USA-made,

Expert Answers

• Q: How far can signals travel through 9m cable?
  A: Up to 30m total system distance without signal loss
• Q: Does the protector work in wet conditions?
  A: Yes – shields connectors from moisture during install
• Q: What maintenance does this probe need?
  A: Annual visual inspection recommended
• Q: Can I use this near welding equipment?
  A: Yes – EMI resistant design
• Q: Is calibration included?
  A: Factory calibrated – ready for installation
