Description

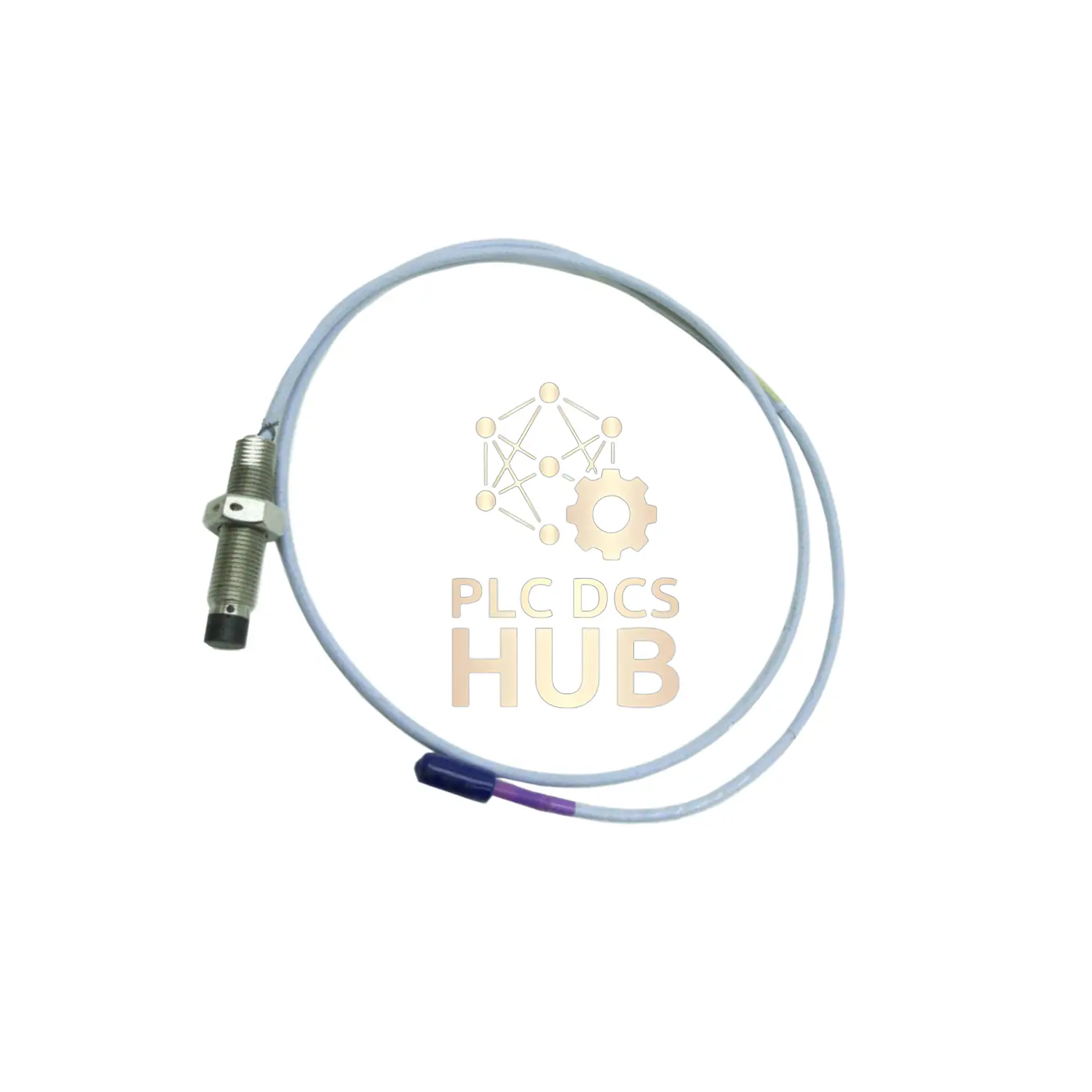

Bently Nevada 3300 XL FluidLoc Probe – Hazardous Environment Ready
Industrial-grade 11mm sensor with special FluidLoc cable for tough conditions. Made in USA. Works with 5m Proximitor systems. Multiple safety certifications.
Product Identification
| Manufacturer | Bently Nevada |
| Model Series | 3300 XL 11mm |
| Full Part Number | 330701-00-10-50-12-05 |
| Cable Length | 5.0 meters (16.4 ft) |
| Cable Type | FluidLoc |
Part Number Breakdown
- 330701 → Base Probe (11mm)
- 00 → 0″ Unthreaded Length
- 10 → 1.0″ Case Length
- 50 → 5.0m Cable
- 12 → FluidLoc Connector
- 05 → Multiple Certifications
Key Specifications
- Electrical Resistance: 7.2 ± 0.8 Ω
- Temperature Range: -51°C to +177°C
- Case Material: AISI 304 Stainless Steel
- Tip Material: PPS (Polyphenylene Sulfide)
- Thread Type: 1/2-20 UNF or M16x1.5
- Cable Insulation: FEP Fluoropolymer
- Min Bend Radius: 25.4mm (1.0 in)
- Seal Material: Viton O-ring
Installation Guide
- For 5m Proximitor systems only
- Recommended torque: 15.2 N•m
- Keep above -34°C during installation
- Finger-tight connector installation
Certifications & Support
- Multiple global safety approvals
- 12-month warranty
- Worldwide shipping: FedEx, UPS, DHL
- Weight: 0.17 kg
Expert Questions
Q: What makes FluidLoc cable special?
A: Resists oil penetration in wet environments
Q: Can this probe handle explosive areas?
A: Yes, multiple certifications for hazardous locations
Q: Is the cable replaceable?
A: No, permanently attached for maximum seal
Q: Pressure testing available?
A: Custom testing on request only
Q: Lead time for delivery?
A: Ships same day from US warehouse
