Description

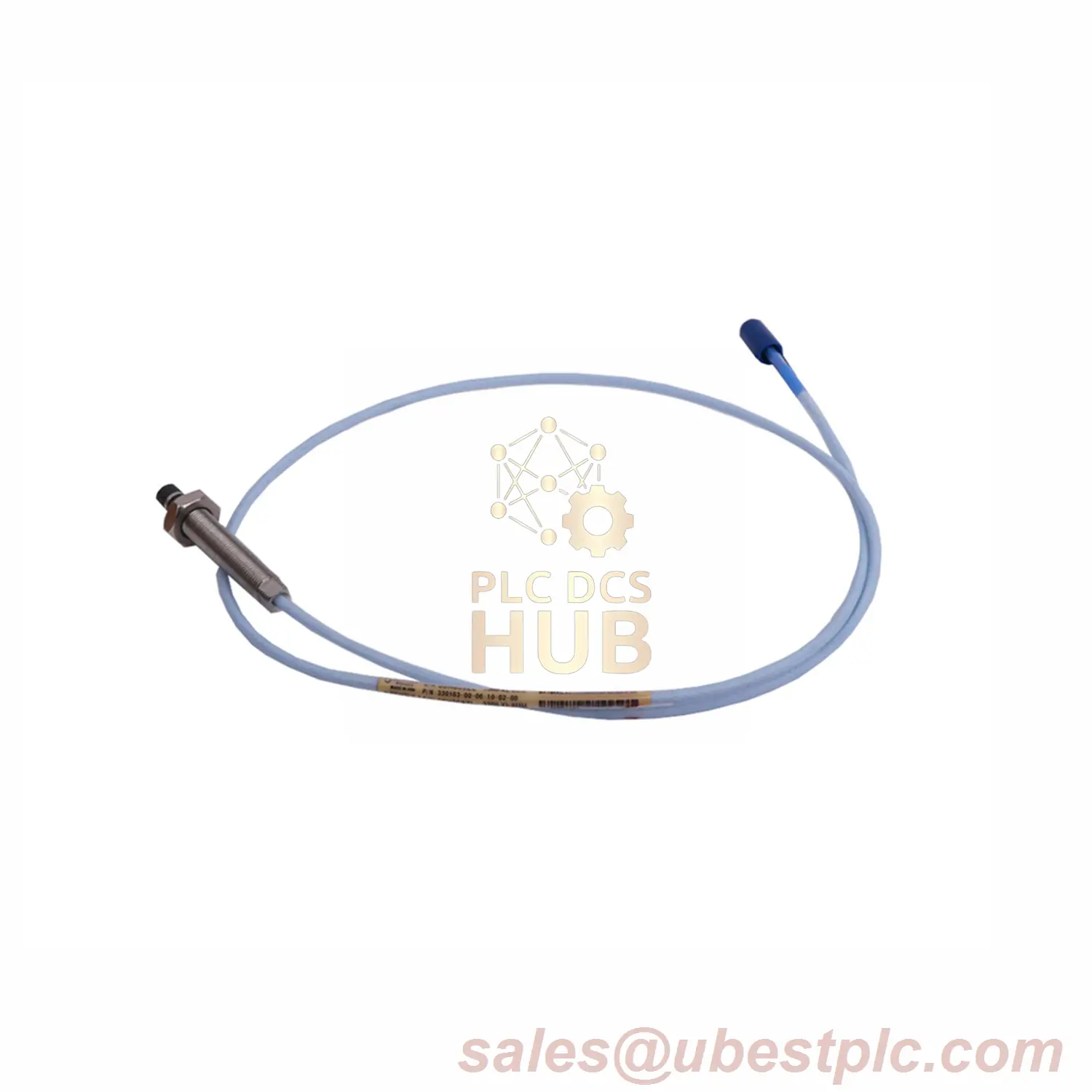

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Machinery Monitoring
Professional-grade vibration sensor for industrial equipment diagnostics. Made in USA with global certifications. Measures shaft vibration in turbines, compressors, and rotating machinery.
Core Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part Number: 330701-00-10-90-02-05
Complete Suffix Breakdown
- 330701: Base model (11mm probe)
- 00: Unthreaded length (0.0 in)
- 10: Case length (1.0 in)
- 90: 9.0 meter cable (29.5 ft)
- 02: Miniature coaxial ClickLoc connector
- 05: Multiple agency approvals
Key Technical Data
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 304 stainless steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Electrical Resistance (9m) | 8.5 ± 1.1 Ω |
| Temperature Range | -51°C to +177°C |
| Thread Type | 1/2-20 UNF |
| Max Thread Engagement | 0.750 in |
| Case Torque (Recommended) | 15.2 N•m (133 in•lb) |
| Connector Torque (Max) | 0.565 N•m (5 in•lb) |
| Bend Radius | 25.4 mm (1.0 in) |
Installation & Operation
- Sealing: Viton O-ring (pressure seal not factory tested)
- Avoid temperatures below -34°C to prevent seal damage
- Metric thread option: M16x1.5 (max engagement 24mm)
Compatibility & Approvals
- Works with Bently Nevada 3300 monitoring systems
- Multiple international certifications (suffix 05)
Shipping & Support
- Package: Probe unit with documentation
- Weight: 0.17 kg
- Carriers: FedEx, UPS, DHL worldwide
- Warranty: 12 months
Diagnostic Capabilities
- Shaft vibration detection
- Radial play measurement
- Rotor imbalance identification
Frequently Asked Questions
Q: Is this probe armored?
A: No, this model has no armor (suffix 00)
Q: Can pressure testing be performed?
A: Contact our custom design department for seal validation
Q: What approvals does it have?
A: Multiple global certifications (indicated by suffix 05)
