Description

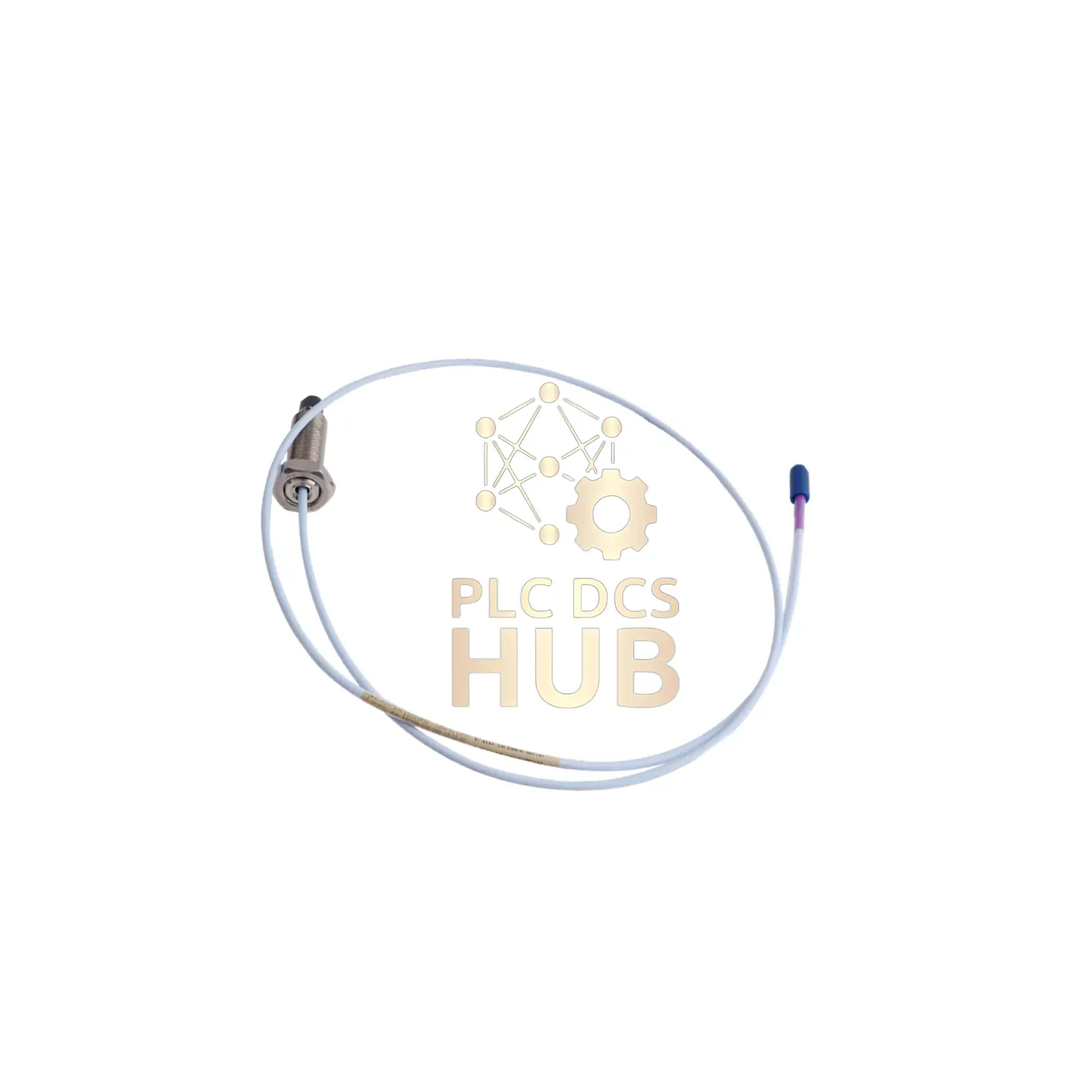

Bently Nevada 3300 XL 11mm Probe – 5m Armored Cable with ClickLoc
Authentic USA-made 3300 XL vibration sensor with 5m armored cable and 12-month warranty. Ships globally via FedEx/UPS/DHL. Certificate of Origin available.
Part Number Structure
[330707] 3300 XL 11mm Probe [00] Zero unthreaded length [10] 1.0" case length [50] 5.0m cable length [01] ClickLoc standard connector [05] Multiple agency approvals
Technical Specifications
- Electrical: 7.2Ω ±0.8Ω resistance (5m cable)
- Mechanical: 1/2-20 UNF thread (0.75″ max engagement)
- Torque: 15.2 N•m recommended (133 in-lb)
- Cable: 75Ω triaxial FEP, 1″ min bend radius
- Weight: 0.17kg (lightweight design)
- Materials: PPS tip + 304 stainless steel body
Technical FAQs
Q: What certifications does this model have?
A: Carries multiple international safety approvals (option -05).
Q: How does the armor protect the cable?
A: Stainless steel armor prevents crushing and abrasion damage.
Q: Can I use this in explosive environments?
A: With proper installation per approval certifications.
Q: What’s the cable’s flex life?
A: Rated for 1 million flex cycles at minimum bend radius.
Q: Is the connector dust-proof?
A: Yes, ClickLoc connector provides IP67 protection when mated.
Download Resources
- 3300 XL Probe Installation Guide
- ClickLoc Connector Specifications
- Multi-language Safety Manuals
