Description

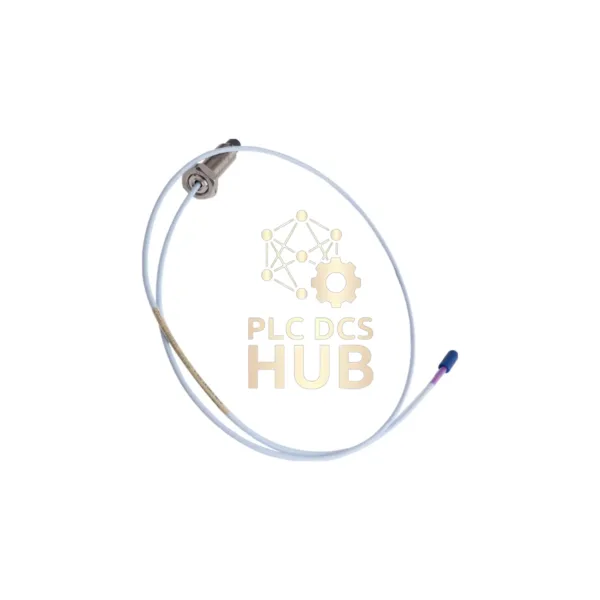

Bently Nevada 330707-00-10-50-11-00 Proximity Probe
Industrial-grade 5.0m armored sensor with FluidLoc cable for tough environments. Made in USA with quick global delivery.
Product Configuration
Brand: Bently Nevada
Model: 3300 XL 11mm Probe
Full ID: 330707-00-10-50-11-00
Part Number Details:
- Base: 330707 (1/2-20 UNF with armor)
- Unthreaded: 00 = 0 inch
- Case: 10 = 1.0 inch
- Cable: 50 = 5.0 meters
- Connector: 11 = ClickLoc + FluidLoc
- Approvals: 00 = Not required
Technical Specifications
- Cable type: Triaxial FEP insulated
- Resistance: 7.2Ω ±0.8Ω
- Temp range: -51°C to +177°C
- Weight: 0.17 kg
- Bend radius: 25.4mm min
- Thread torque: 15.2 N•m max
- Seal material: Viton O-ring
- Tip material: PPS polymer
- Case material: 304 stainless steel
- Cold limit: Do not expose below -34°C
Installation Guide
- Use with 5m Proximitor Sensor only
- Max thread engagement: 0.750 inch
- Connector torque: Finger tight (0.565 N•m max)
- Maintain 25.4mm cable bend radius
Package Contents
- New 3300 XL proximity probe
- Original factory packaging
- 12-month warranty certificate
Technical Questions
Q: FluidLoc cable advantage?
A: Superior chemical/oil resistance
Q: Minimum operating temperature?
A: -51°C but avoid below -34°C
Q: Armor material type?
A: 304 stainless steel casing
Q: Compatible with other sensors?
A: Designed for 5m Proximitor only
Q: Pressure testing available?
A: Custom service upon request
