Description

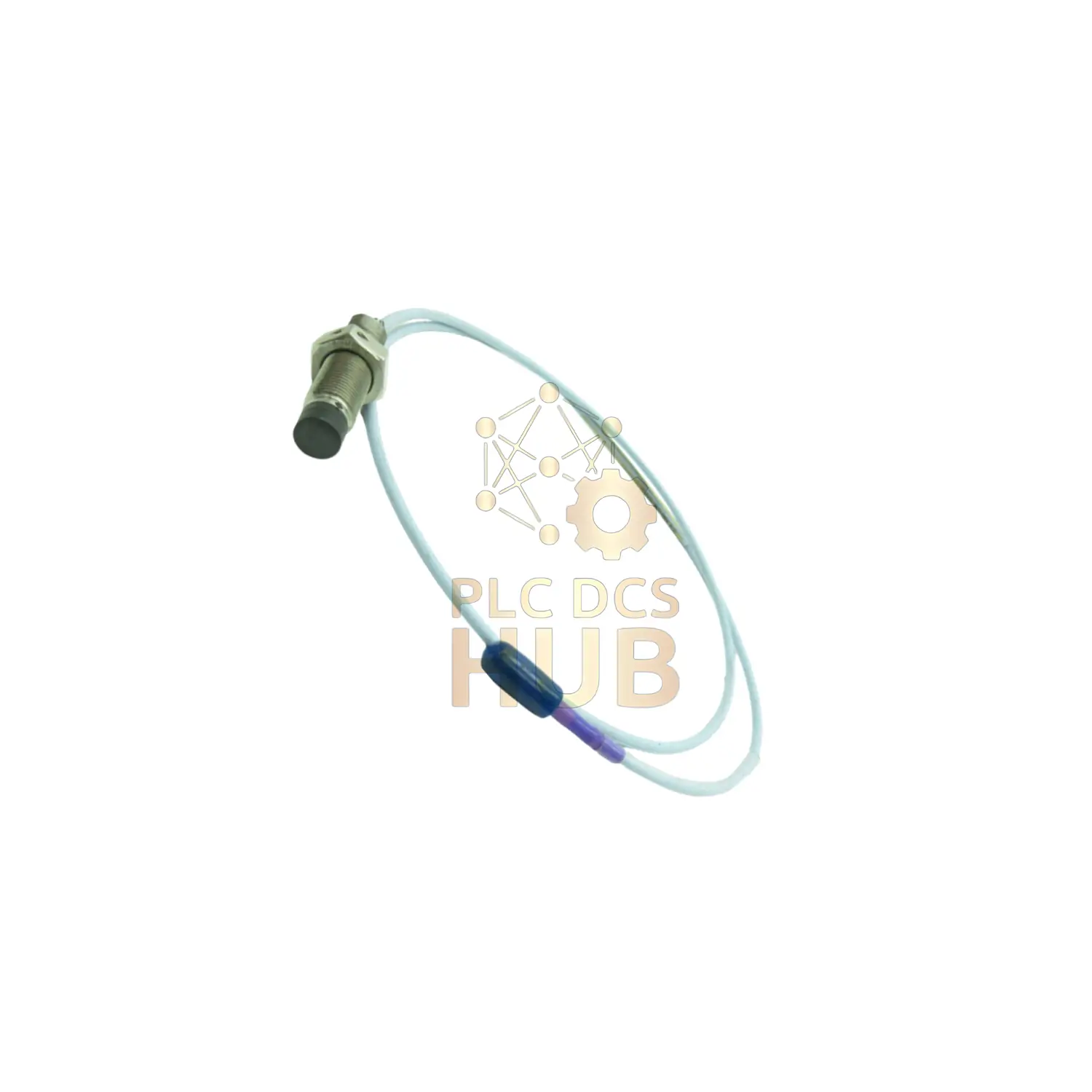

Bently Nevada 11mm Proximity Probe – Compact Industrial Sensor
Product Overview
Precision 11mm vibration sensor for machinery health monitoring. Made in USA with stainless steel body and FluidLoc cable for tough environments. Measures shaft vibration in pumps, motors, and turbines.
Key Specifications
- Model: 330708-00-10-50-11-00
- Brand: Bently Nevada
- Size: 11mm sensing tip
- Cable: 5.0 meters (16.4 feet)
- Case Length: 1.0 inch
- Connector: ClickLoc with FluidLoc cable
- Temp Range: -51°C to +177°C
- Resistance: 5.9 ± 0.5 Ω
Installation Details
Mounting Torque:
- Max: 400 in•lb
- Recommended: 133 in•lb
Min Bend Radius: 1.0 inch
Thread Engagement: 0.938 inch max
Technical Features
- Tip Material: PPS plastic
- Case Material: 304 stainless steel
- Cable Type: 75 Ω triaxial
- Seal: Viton O-ring
- Weight: 0.17 kg
Compatibility
Works with Bently Nevada 3300 monitoring systems. Fits standard 5/8-18 UNF mounting holes. FluidLoc cable resists oil and chemicals.
Package Contents
- 1x Probe sensor
- ClickLoc connector
- Connector protector
12-month warranty: Covers all defects
Shipping Options
Fast global delivery via FedEx, UPS, DHL. Ships from USA. Tracking included.
Important Questions
- Q: What does “00” in model number mean?
A: Agency approvals not required - Q: Minimum operating temperature?
A: Avoid below -34°C to protect seal - Q: Pressure testing available?
A: Contact us for custom pressure tests - Q: Cable length options?
A: Also available in 1m and 9m lengths
Get Full Documentation
Download complete installation guide and specs: 3300 XL 11 mm Proximity Transducer System Datasheet
