Description

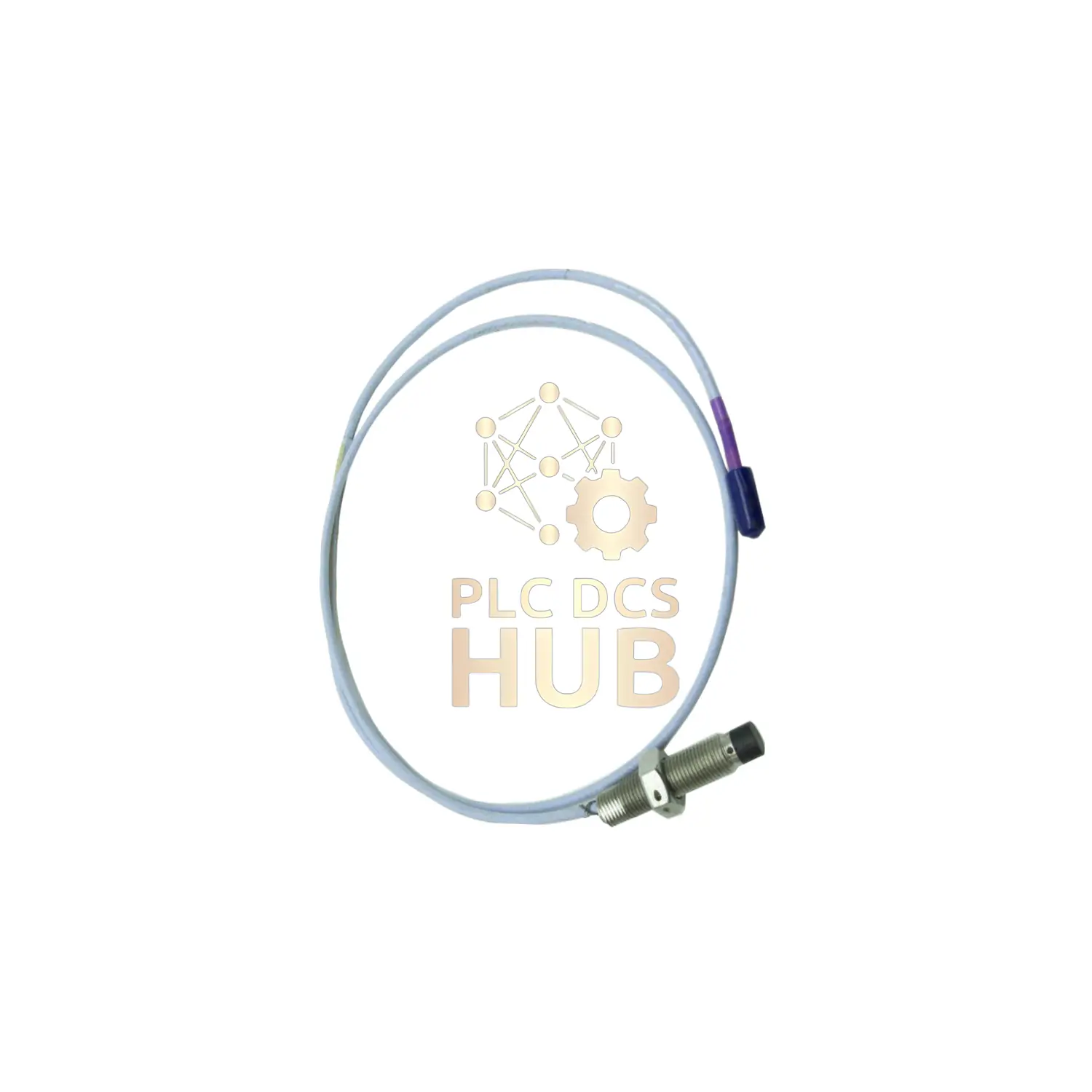

Bently Nevada 3300 XL 11mm Proximity Probe – Heavy-Duty Monitoring
U.S.-made industrial sensor with FluidLoc™ cable for challenging environments. Full model: 330708-00-10-50-01-05.
Product Code Explained
- 330708 – Base probe (11mm, no armor)
- 00 – 0″ unthreaded length
- 10 – 1.0″ case length
- 50 – 5.0m cable
- 01 – FluidLoc™ cable
- 05 – Multiple approvals
Key Specifications
| Measurement Range | 11mm |
| Cable Type | FluidLoc™ triaxial |
| Temperature Range | -51°C to +177°C |
| Electrical Resistance | 5.9Ω ±0.5Ω |
| Cable Length | 5.0m (16.4 ft) |
Physical Properties
- Thread size: 5/8-18 UNF
- Case material: 304 stainless steel
- Tip material: Chemical-resistant PPS
- Min bend radius: 25.4mm
- Seal material: Viton O-ring
Installation Details
- Max thread depth: 0.938″
- Recommended torque: 15.2 N·m
- Max torque: 45.2 N·m
- Connectors: Hand-tight only
Compatible Systems
- Bently Nevada 3300/3500 series
- GE Speedtronic™ systems
- Most industrial PLCs
Certifications
- Multiple global approvals (option 05)
- COO available on request
Package Contents
- 1 vibration probe
- Shipping weight: 0.17kg
Warranty & Delivery
- 12-month warranty
- FedEx/UPS/DHL express shipping
Common Questions
- Q: What makes FluidLoc™ cable special?
A: Enhanced protection against oils and chemicals - Q: Minimum operating temperature?
A: -51°C, but avoid below -34°C for seal safety - Q: Pressure rating?
A: Not tested – contact us for pressure validation - Q: Thread alternatives?
A: M16x1.5 (24mm depth) or M14x1.5 (21mm depth)
Download Manual
Get installation guide: 3300 XL 11 mm Proximity Transducer System Datasheet
Need help? Contact our engineers for setup advice.
