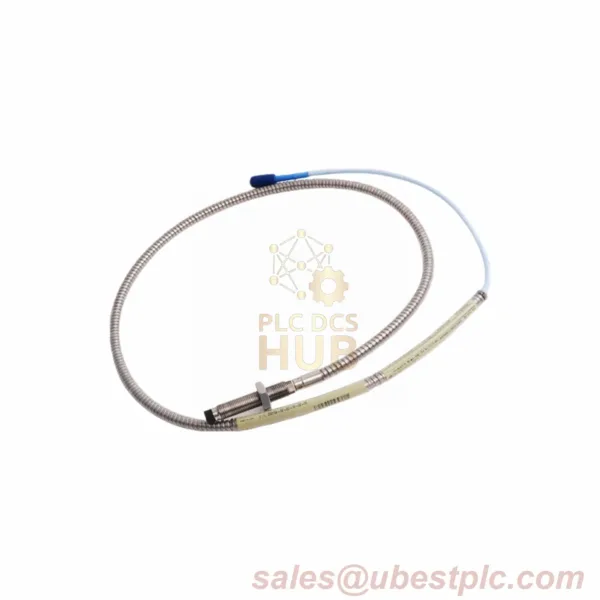

330708-00-24-50-02-05 3300 XL 11 mm Probe Bently Nevada

Description

330708-00-24-50-02-05 Bently Nevada 3300 XL Probe: Industrial Vibration Sensor

Heavy-duty 11mm proximity probe with triaxial cable for precision machinery monitoring. U.S.-made with multiple certifications.

Part Number Details

330708-

3300 XL 11 mm Probe, 5/8-18 UNF thread, without armor

00

Unthreaded: 0 inch

24

Case length: 2.4 inch

50

Cable: 5.0 meters

02

Connector: Standard ClickLoc

05

Approvals: Multiple certifications

Key Specifications

• Thread Type: 5/8-18 UNF
• Detection Range: 0-10kHz vibration
• Resistance: 7.2Ω ±0.8
• Cable Type: 75Ω triaxial FEP
• Weight: 0.17kg
• Temp Range: -51°C to +177°C

Installation Guide

• Max thread depth: 0.938 inch
• Recommended torque: 133 in-lb
• Max torque: 400 in-lb
• Min bend radius: 25.4mm
• Seal warning below: -34°C

Material Specifications

• Case: AISI 304 stainless steel
• Tip: PPS polymer
• Seal: Viton O-ring
• Insulation: FEP material

Compatibility

Works with 5m Proximitor Sensors only. Not compatible with other cable lengths.

Certifications

Multiple international approvals (Option 05). COO available on request.

Package Contents

• 1x Proximity probe
• Factory documentation
• 12-month warranty

Shipping

Global delivery via FedEx, UPS, DHL

FAQ

Q: What is triaxial cable?
A: Three-layer shielded cable for better noise protection.

Q: Can I use in freezing conditions?
A: Avoid sustained exposure below -34°C to protect seal.

Q: Pressure testing available?
A: Contact custom department for special requests.

Q: Different cable lengths?
A: Available in 1m, 5m or 9m versions.

Q: Warranty coverage?
A: 12 months for manufacturing defects.
