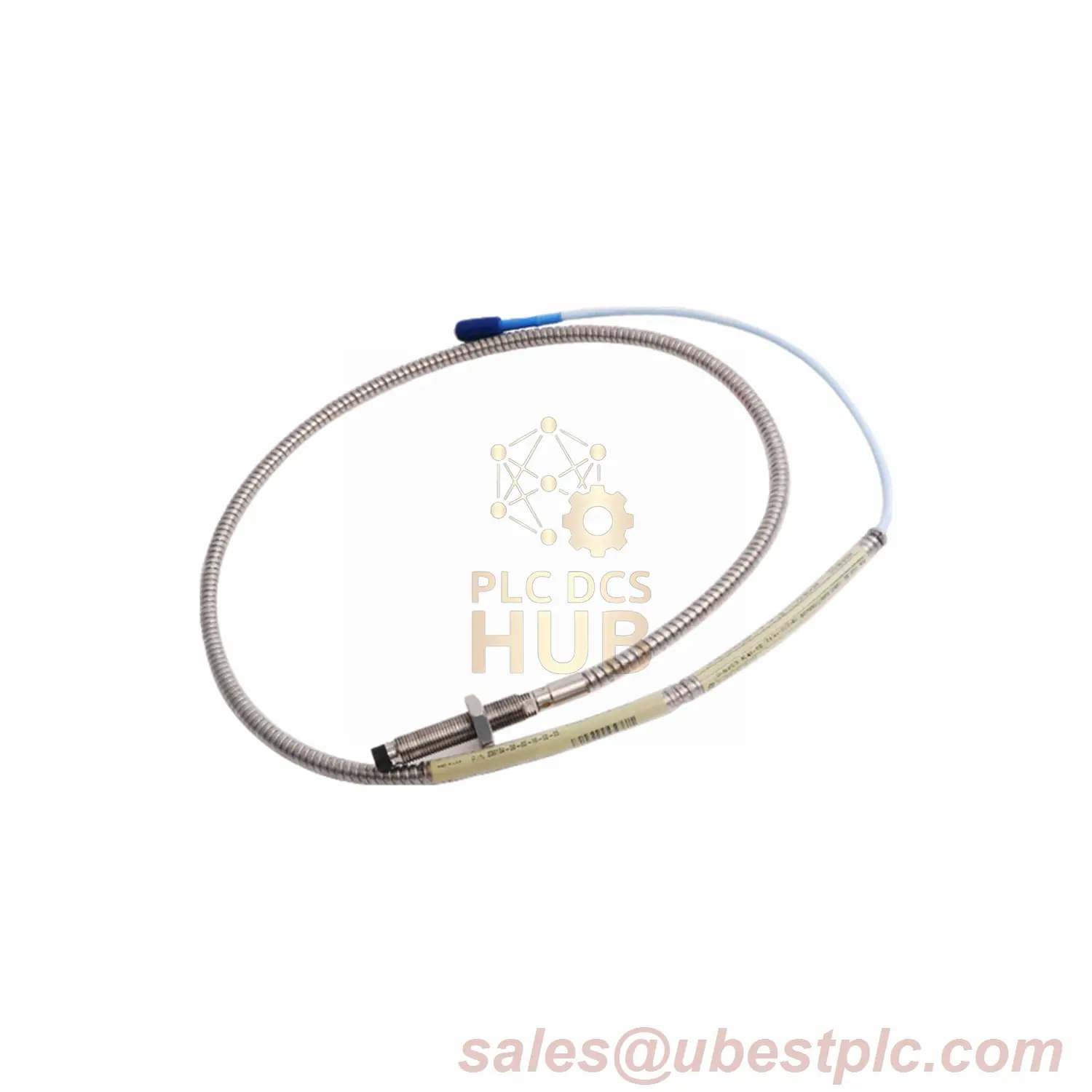

330708-00-24-50-12-05: Heavy-Duty Vibration Probe for Critical Machinery
U.S.-made Bently Nevada probe with 5/8-18 UNF threading and FluidLoc cable. Monitors turbines, compressors, and generators in extreme conditions.
ESSENTIAL SPECIFICATIONS
- Brand: Bently Nevada
- Model: 3300 XL 11mm Probe
- Full Suffix: 00-24-50-12-05
- Thread: 5/8-18 UNF (no armor)
- Case Length: 2.4 inches
- Cable: 5.0m FluidLoc (triaxial)
- Temp Range: -52°C to +177°C
- Resistance: 7.2Ω ±0.8
PERFORMANCE DATA
- Range: 11mm sensing diameter
- Accuracy: High-precision measurements
- Signal: 75Ω triaxial output
- Response: 0-10 kHz typical
INSTALLATION GUIDE
- Torque: Recommended 15.2 N•m (133 in•lb)
- Max Engagement: 0.938 inches
- Min Bend Radius: 25.4mm
- Install above -34°C to protect seals
COMPATIBILITY
Works with all Bently Nevada 3300 XL systems. Requires 5m Proximitor Sensor. Replaces older probes with better performance.
PACKAGE INCLUDES
- 1x Probe (330708-00-24-50-12-05)
- Documentation
- 12-month warranty
SHIPPING
Worldwide via FedEx, UPS, DHL. Weight: 0.17 kg. Ships in 24h.
KEY ADVANTAGES
- FluidLoc cable resists oils and chemicals
- 304 stainless steel withstands corrosion
- PPS tip handles high temperatures
FAQ
Q: Minimum install temperature?
A: Above -34°C (-30°F) to protect seals
Q: Compatible with 9m systems?
A: No – designed for 5m Proximitor Sensors only
Q: Pressure rating?
A: Viton seals handle differential pressure
