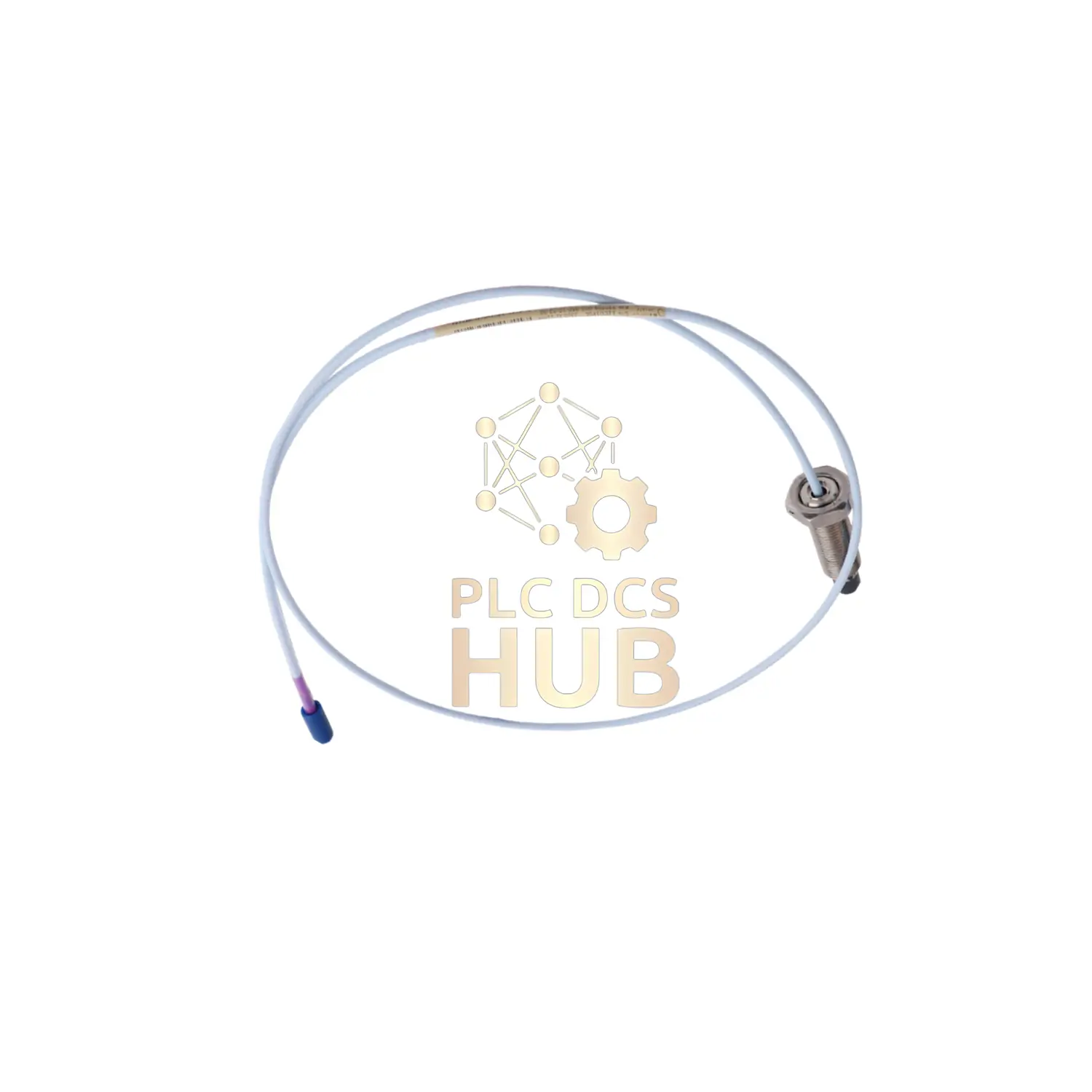

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Machinery Monitoring
Product Overview
Industrial-grade vibration sensor for critical equipment protection. Made in USA. Measures shaft position and vibration with ±1.1 ohms accuracy across extreme temperatures. Essential for predictive maintenance in power generation, oil/gas, and heavy industries.
Key Specifications
- Brand: Bently Nevada
- Full Model: 330708-00-24-90-11-00
- Measurement Range: 11mm sensing distance
- Accuracy: 8.5Ω ±1.1Ω resistance (9m cable)
- Signal Type: 75Ω triaxial output
- Temp Range: -51°C to +177°C (operating/storage)
- Cable: 9m FEP-insulated FluidLoc®
Technical Details
Physical Construction
- Probe Tip: PPS polymer
- Case: AISI 304 stainless steel
- Thread: 5/8-18 UNF (Max torque: 45.2 N•m)
Electrical Properties
- Cable Resistance: 8.5Ω ±1.1Ω (center to outer conductor)
- Connector: Miniature coaxial ClickLoc®
- Bend Radius: 25.4mm min
Installation Guide
- Torque Settings:
- Recommended: 15.2 N•m (133 in•lb)
- Maximum: 45.2 N•m (400 in•lb)
- Thread Engagement: 0.938 in max (5/8-18 thread)
- Warning: Temperatures below -34°C may damage pressure seal
What’s Included
- 1x Proximity Probe (330708-00-24-90-11-00)
- Connector protector
- 12-month warranty
Shipping & Delivery
Global express via FedEx, UPS, DHL. Weight: 0.17kg.
FAQ
- Q: Can I use this in high-pressure environments?
A: Probes seal differential pressure via Viton® O-ring but aren’t pressure-tested. Contact us for custom testing. - Q: Available cable lengths?
A: Standard: 1m, 5m, 9m. Custom lengths upon request. - Q: Is this explosion-proof?
A: Agency approval option 00 = not certified for explosive environments.
