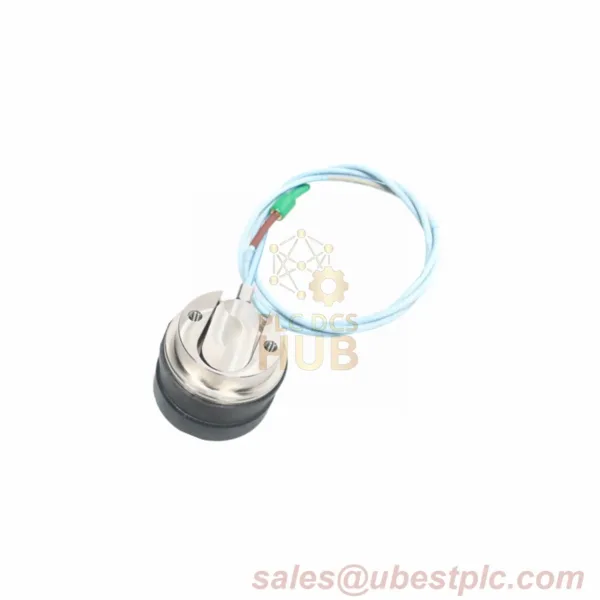

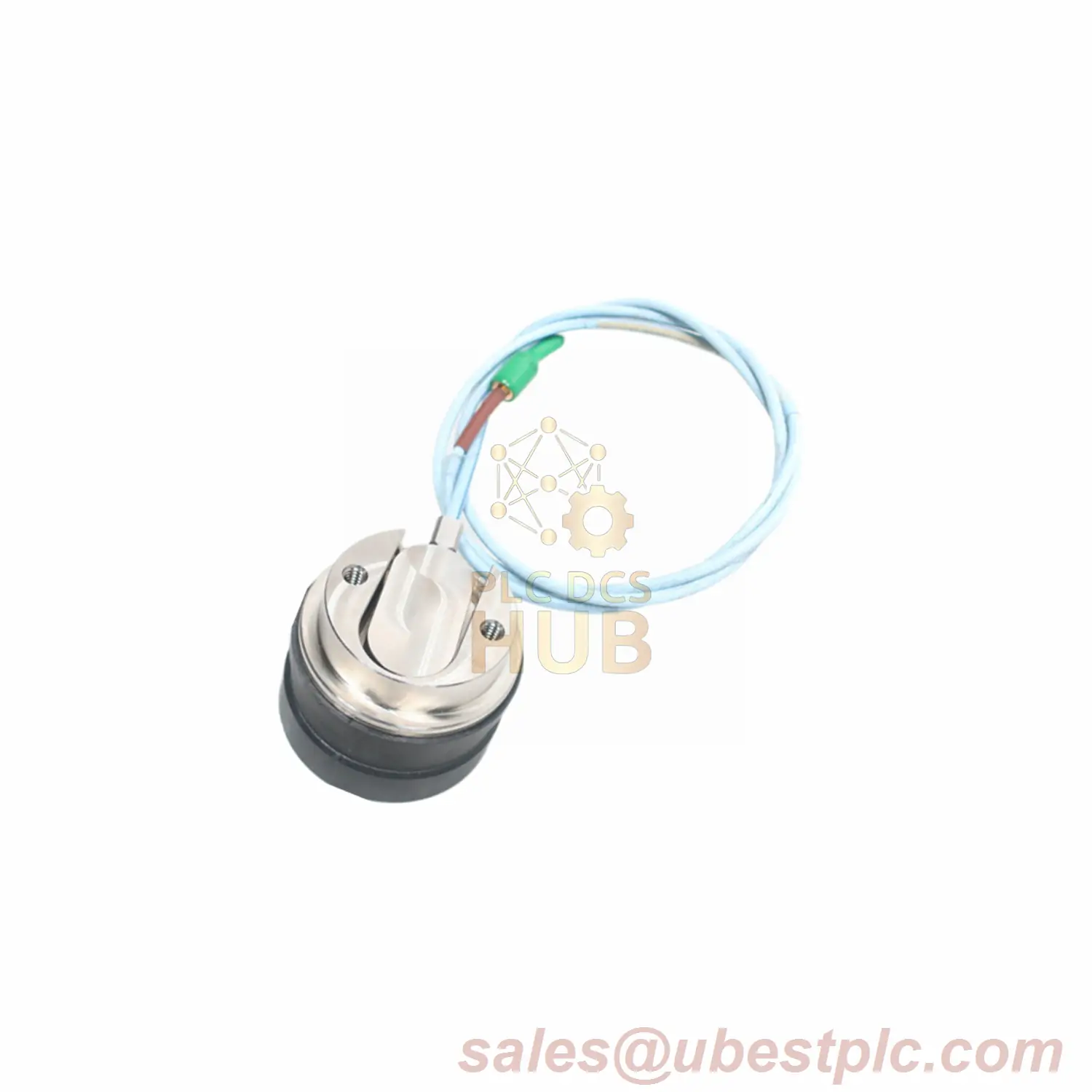

330876-01-50-00-CN | 3300 XL 50 mm Proximity Probe Bently Nevada

Description

Bently Nevada 50mm Turbine Probe – Industrial Precision

Product Highlights

New 330876-01-50-00-CN probe for extreme conditions. Works non-stop at 200°C and survives 250°C short bursts. Special seals block water and steam. Includes protective caps and installation tool.

Part Number Explained

Full model: 330876-01-50-00-CN

• → 330876: Base 50mm probe model
• → -01: Straight exit with ½-20 thread
• → -50: 5.0 meter cable length
• → -00: High Temp FluidLoc cable
• → -CN: Country specific approvals

Key Specifications

• DC Resistance: 7.6Ω ±0.8Ω (5m cable)
• Case Diameter: 1.99 inches
• Thread Size: ½-20 UNF
• Max Thread Depth: 0.750 inch
• Tip Material: PPS plastic
• Case Material: Stainless steel
• Continuous Temp: -35°C to +200°C
• Peak Temp: 250°C (max 24 hours)

Installation Notes

• Requires matching 5m Proximitor
• Use safety locknut with wire holes
• Removable collar for tight spaces
• Country-specific approvals included

Package Contents

New probe, connector protectors, installation tool, papers. 12-month warranty. Ships via FedEx/UPS/DHL worldwide.

Common Questions

Q: What countries have approval?
A: China-specific certifications included

Q: Resistance for 5m vs 1m?
A: 5m=7.6Ω (1m=6.4Ω) due to cable length

Q: Suitable for gas turbines?
A: Yes, ideal for high-heat turbine exhaust areas

Q: Cable armor type?
A: FluidLoc high-temperature without armor

Get Technical Documents

Download installation guide: 3300 XL 50 mm Proximity Transducer System Datasheet
