Description

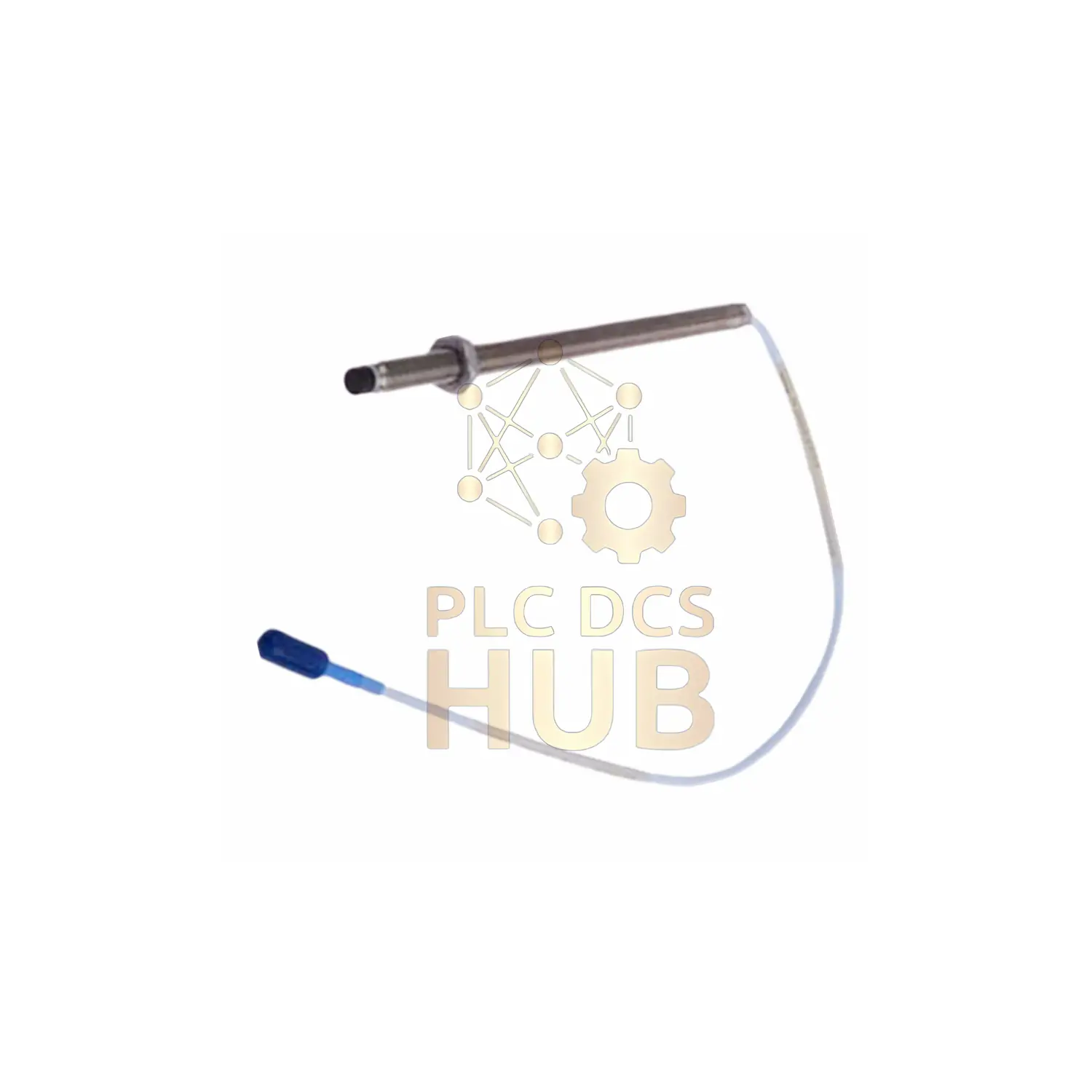

Bently Nevada 3300 NSv Proximity Probe – Precision Vibration Sensor
New factory-sealed probe with 12-month warranty. Perfect for industrial machinery monitoring.
Complete Part Number Details
Full Part Number: 330903-00-02-70-02-05
- Base Model: 330903 (NSv Probe M8X1 thread)
- -00-: 0mm unthreaded length
- -02-: 20mm overall case length
- -70: 7.0 meter cable (23 feet)
- -02: ClickLoc connector with standard cable
- -05: Multiple safety approvals
Technical Specifications
| Measurement Range | 1.5 mm (60 mils) |
| Accuracy | ±0.06 mm (±2.3 mils) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Cable Type | 75 Ω coaxial with FEP insulation |
| Probe Resistance | 5.9 Ω ± 0.9 Ω |
| Frequency Response | 0-10 kHz (±3 dB) |
Installation Guide
- Gap setting: 1.0 mm (40 mils) from target
- Mounting torque: Finger tight + max 0.56 N•m
- Cable bending: Minimum 25.4 mm radius
- Thread engagement: Max 12 mm for M8x1
Compatibility Notes
- Fits all 3300 XL NSv Proximitor Sensors
- Works with 3300 RAM probe systems
- Use with shielded triad field wiring
Package Contents
- 3300 NSv Probe
- Connector protector
- Factory documentation
Support & Delivery
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL worldwide
- Lead time: Usually ships in 1-3 days
Common Questions
Q: What cable length options exist?
A: Available in 0.5m, 1m, 5m, and 7m lengths
Q: Can this monitor small shafts?
A: Minimum target 8.9mm, recommended 13mm diameter
Q: Is pressure testing included?
A: Contact us for custom pressure seal testing
Q: What connectors does it use?
A: Miniature coaxial ClickLoc connector
