330904-00-10-70-01-00 | 3300 NSv Probe Bently Nevada

Description

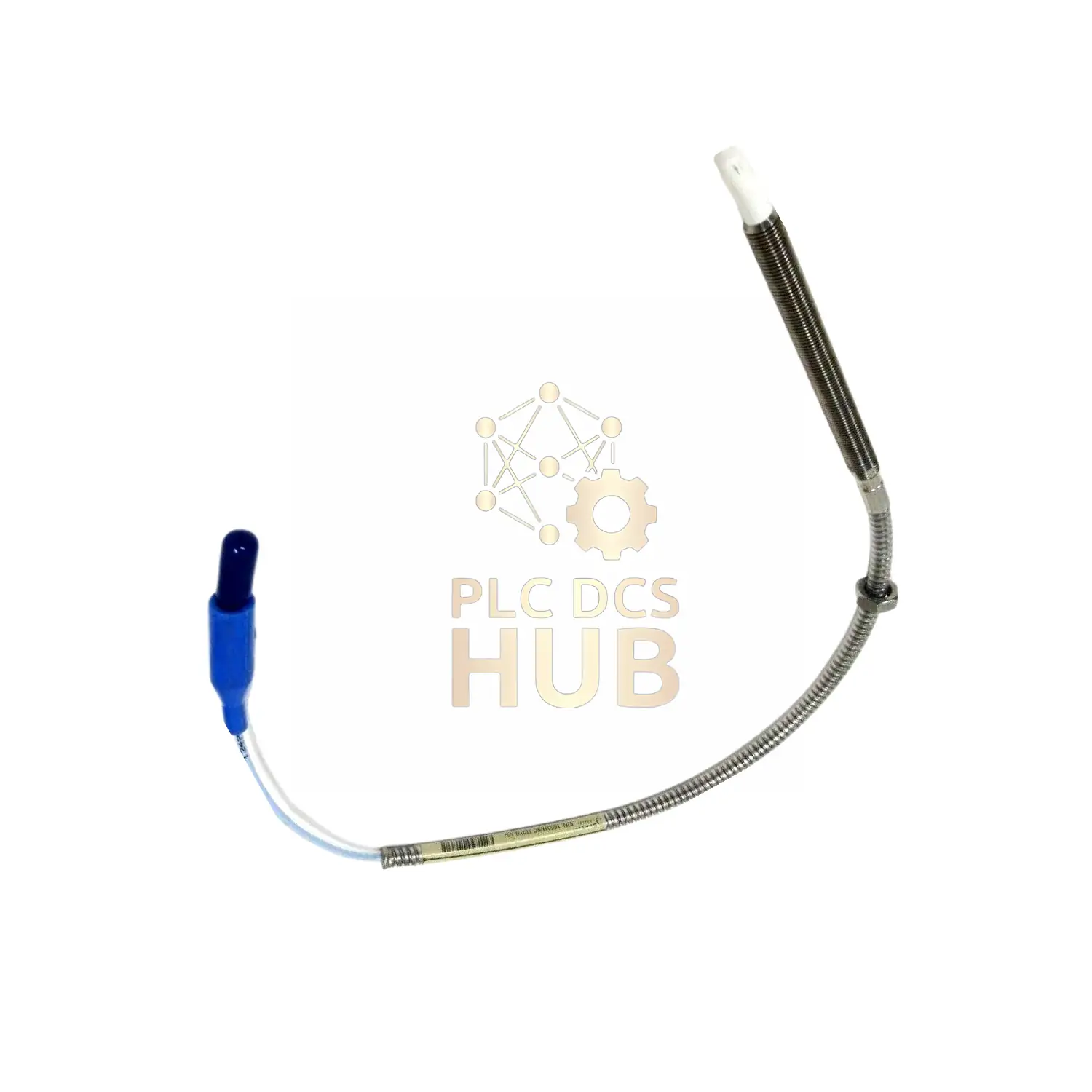

Bently Nevada 3300 NSv Proximity Probe with 7m Cable

New factory-sealed vibration sensor with extended 7-meter cable. Features M8X1 threaded armor and 12-month warranty for industrial reliability.

Complete Suffix Breakdown

• 330904 – Base model
• -00- Unthreaded length: 00 mm
• -10- Case length: 100 mm
• -70 Cable length: 7.0 meters
• -01 Connector: Miniature coaxial ClickLoc
• -00 Approvals: Not required

Key Technical Parameters

• Probe resistance: 5.9 Ω ±0.9 Ω (7m cable)
• Linear range: 1.5 mm (60 mils)
• Scale factor: 7.87 V/mm ±20%
• Frequency response: 0-10 kHz
• Temperature range: -62°F to +351°F
• Cable type: 75Ω coaxial FEP
• Max thread engagement: 12 mm

Installation Notes

• Set gap to 1.0 mm (40 mils)
• Use finger tight installation (max 0.56 N•m)
• Maintain minimum 25.4 mm bend radius
• For small shafts: Reduce gap below 13mm diameter

Package Contents

• One 3300 NSv proximity probe
• Connector protector
• Factory documentation
• Original packaging

Warranty & Shipping

Full 12-month warranty. Ships worldwide via FedEx, UPS or DHL in protective packaging.

Professional FAQ

• Q: How does cable length affect probe resistance?
  A: Longer cables increase resistance – 7m probes measure 5.9Ω vs 1m probes at 4.2Ω
• Q: Can this probe monitor thrust position?
  A: Yes, when properly gapped on shaft surfaces above 13mm diameter
• Q: What maintenance does the Viton seal require?
  A: None under normal conditions; contact us for pressure testing in special applications
• Q: How does temperature affect calibration?
  A: Stable performance across full operating range (-62°F to +351°F)
• Q: Can I use this with existing 3300 RAM monitors?
  A: Yes, fully compatible with all 3300 RAM system components

Request Documentation

Get installation diagrams and technical drawings: Download Spec Sheets
