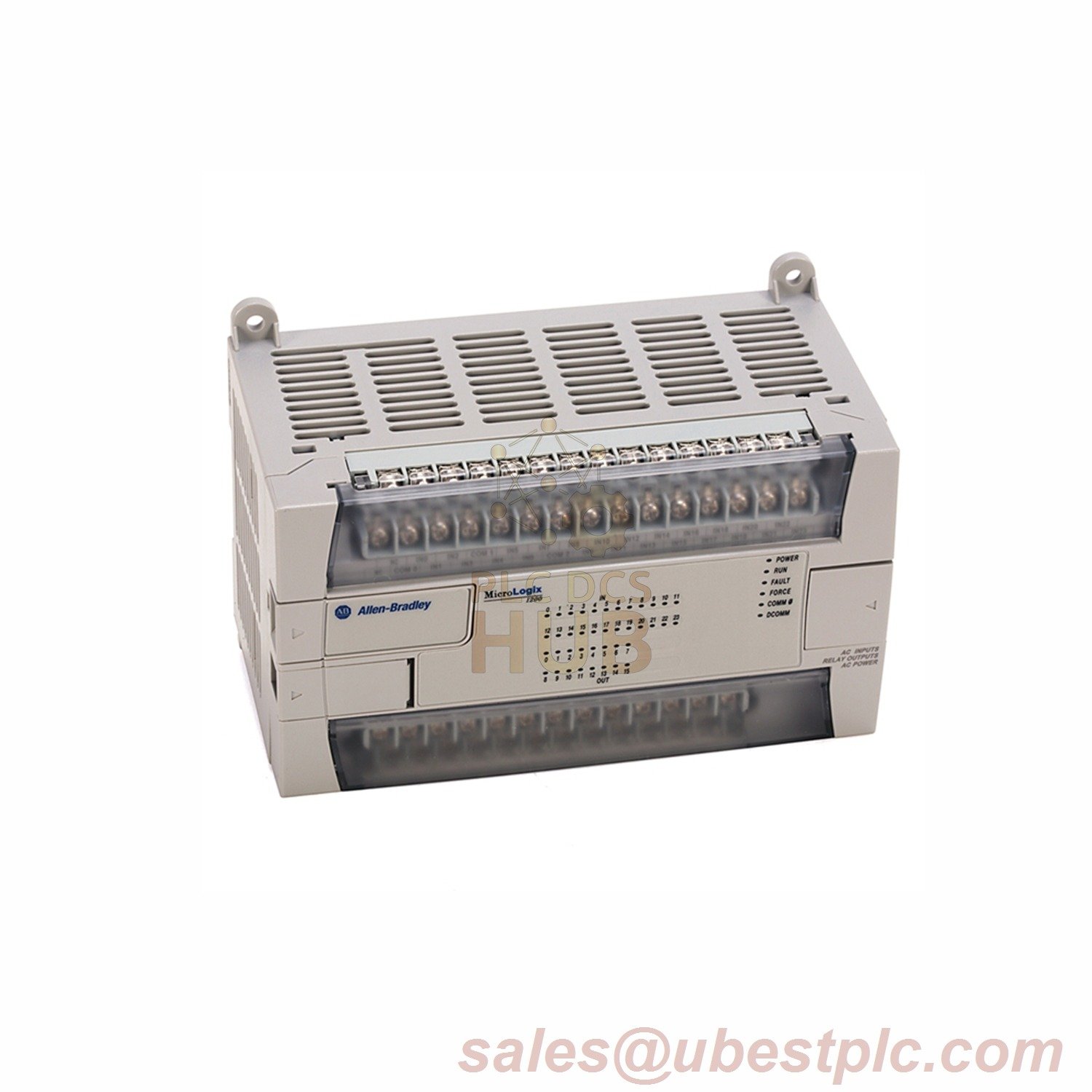

Allen-Bradley 1762-L40BWA | MicroLogix 1200 High-Density Controller
Get a quote today! This high-capacity PLC includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1762-L40BWA is a powerful programmable logic controller. It features 40 built-in I/O points with DC inputs and relay outputs. It is designed for applications requiring multiple DC inputs and robust relay control.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1762-L40BWA
- Product Line: MicroLogix 1200 Programmable Controller
- Input Power: 120-240V AC (47-63 Hz)
- Digital Inputs: 20 standard + 4 fast @ 24V DC
- Input Type: Sinking/sourcing compatible
- Fast Input Frequency: Up to 20 kHz
- Relay Outputs: 16 channels
- Contact Rating: 10A @ 120V AC, 5A @ 240V AC
- Max Load: 1440VA total
- Relay Life: 20 million mechanical cycles
- Communication: 8-pin mini-DIN RS-232 port
- Protocols: DF1, DH-485, MODBUS, ASCII
- Power Consumption: 82 VA maximum
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.54 x 6.3 x 3.43 in)
- Weight: 1.1 kg (2.4 lbs)
- Expansion Capacity: Up to 6 additional modules
Installation & Applications
The 1762-L40BWA mounts on DIN rail or panel. It is ideal for applications requiring multiple DC inputs and relay outputs like material handling, packaging systems, and industrial machinery control.
