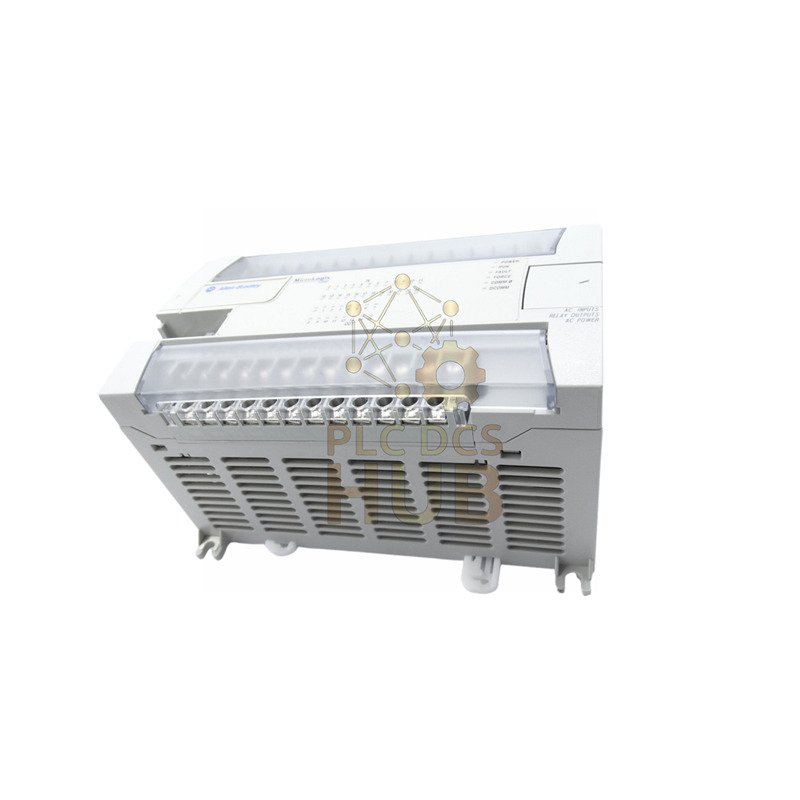

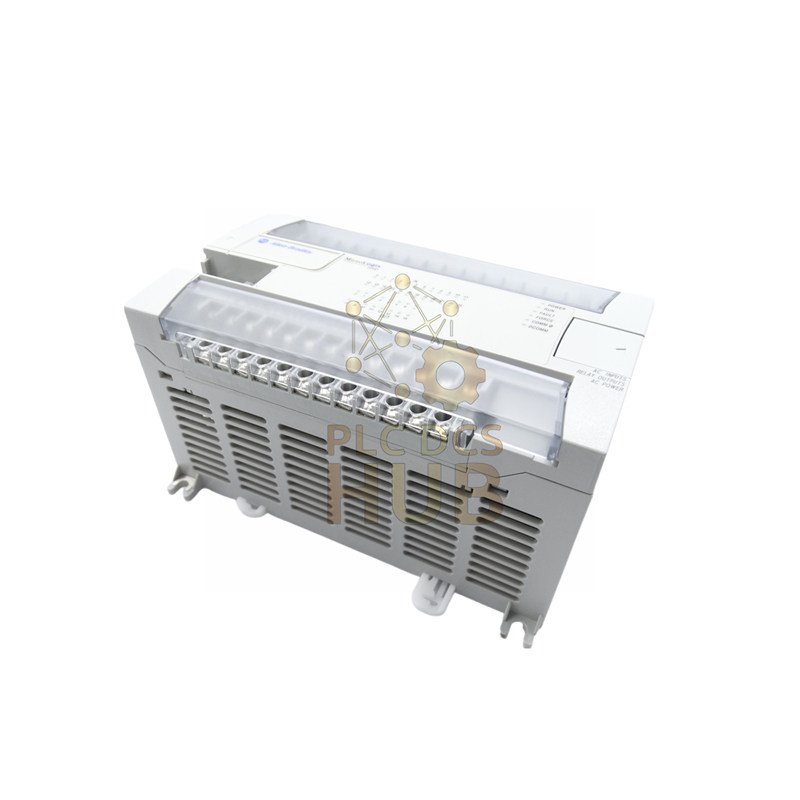

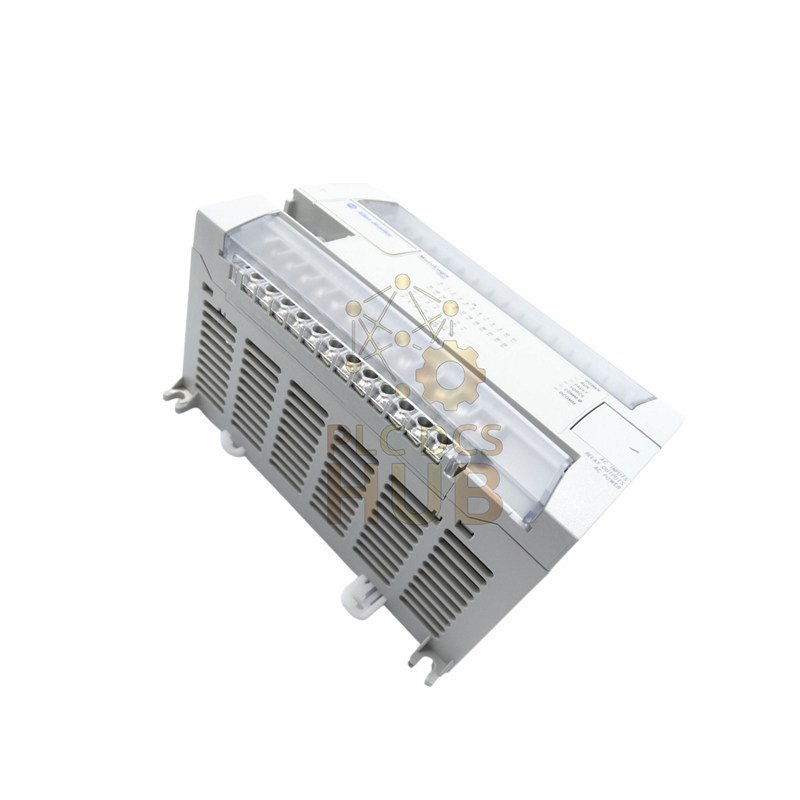

Allen-Bradley 1762-L40AWA | MicroLogix 1200 High-Density Controller
Get a quote today! This powerful PLC includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1762-L40AWA is a high-density programmable logic controller. It features 40 built-in I/O points for comprehensive control. It is designed for larger automation applications requiring multiple AC inputs and relay outputs.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1762-L40AWA
- Product Line: MicroLogix 1200 Programmable Controller
- Input Power: 100-240V AC (47-63 Hz)
- Digital Inputs: 24 channels @ 120V AC
- On-State Voltage: 79-132V AC
- Off-State Voltage: 0-20V AC
- Relay Outputs: 16 channels
- Contact Rating: 10A @ 120V AC, 5A @ 240V AC
- Max Load: 1440VA total
- Current per Group: 8A maximum
- Relay Life: 20 million mechanical cycles
- Communication: 8-pin mini-DIN RS-232 port
- Protocols: DF1, DH-485, MODBUS, ASCII
- Special Features: 2 trim potentiometers
- Power Consumption: 82 VA maximum
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.54 x 6.3 x 3.43 in)
- Weight: 1.1 kg (2.4 lbs)
Installation & Applications
The 1762-L40AWA mounts on DIN rail or panel. It is ideal for applications requiring multiple AC inputs and relay outputs like conveyor systems, packaging machines, and material handling equipment.
Frequently Asked Questions
Q1: What types of devices connect to the AC inputs?
A1: You can connect limit switches, push buttons, selector switches, and other 120V AC field devices.
Q2: What is the advantage of AC inputs?
A2: AC inputs are less sensitive to electrical noise and work well in industrial environments with long wire runs.
Q3: How do the trim potentiometers work?
A3: They allow manual adjustment of values that can be read by the program for calibration or operator control.
Q4: What is the maximum load per output group?
A4: Each output group common can handle up to 8A – do not exceed this rating to prevent damage.
Q5: Can I expand this controller with more I/O?
A5: Yes, you can add up to 6 expansion modules for additional input and output capabilities.
