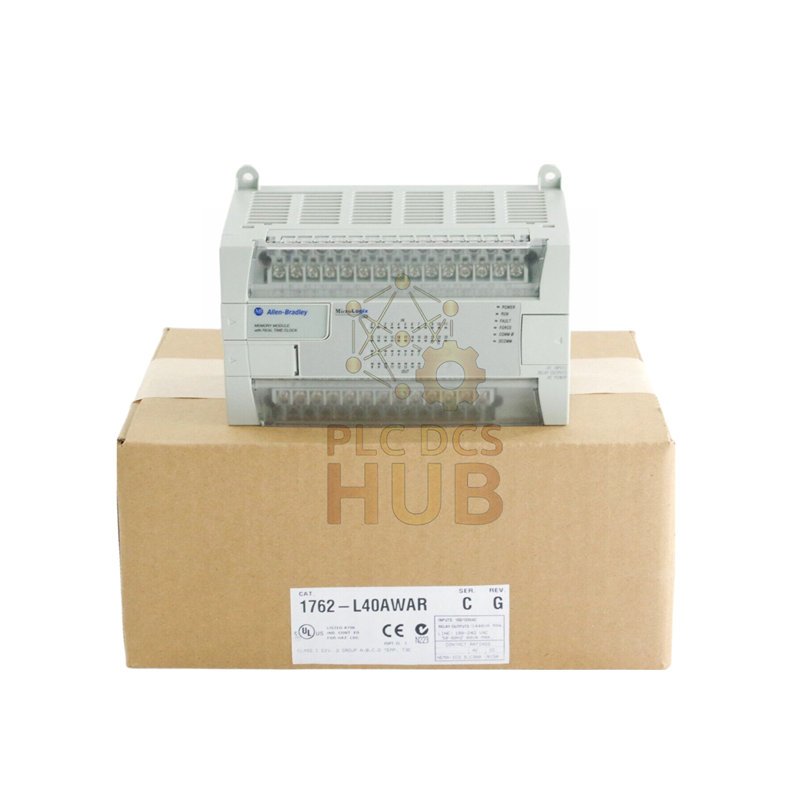

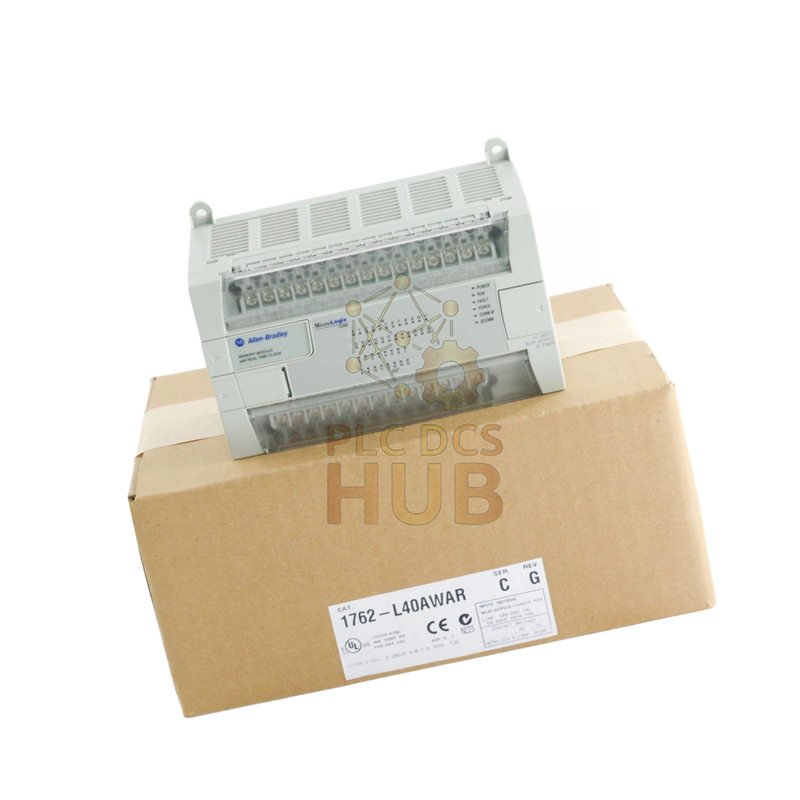

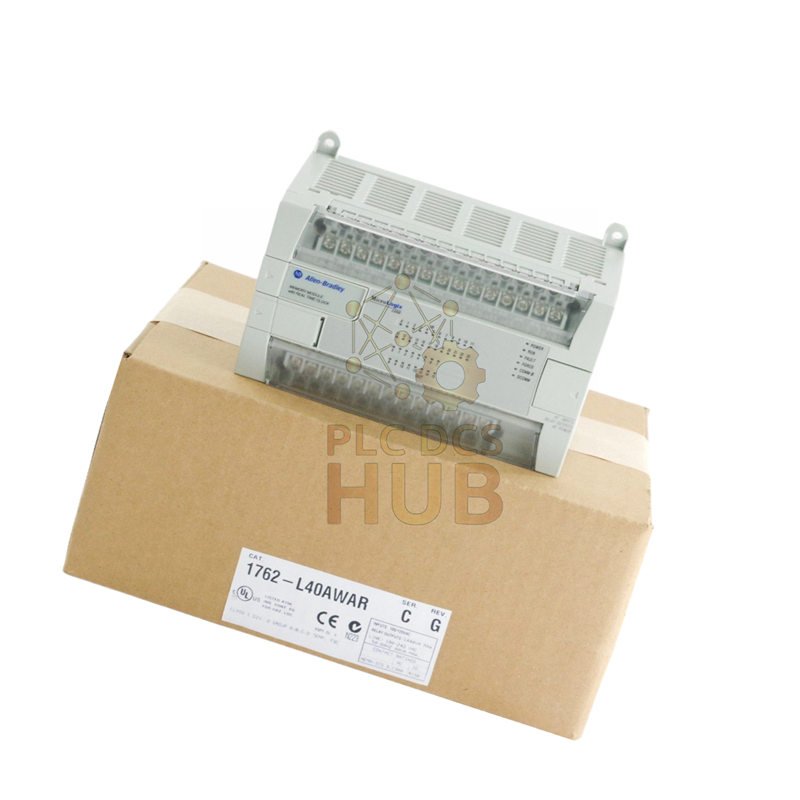

Allen-Bradley 1762-L40AWAR: MicroLogix 1200 Programmable Controller
The Allen-Bradley 1762-L40AWAR from Rockwell Automation is a powerful MicroLogix 1200 controller with extensive I/O capabilities. It features 24 AC inputs and 16 relay outputs for robust industrial automation applications. For complete technical specifications and programming guides, download the product manual here.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-L40AWAR
- Series: MicroLogix 1200
- Controller Type: Programmable Logic Controller
- Input Power: 120-240V AC (47-63 Hz)
- Digital Inputs: 24 channels @ 120V AC
- Input Voltage: 79-132V AC (on-state), 0-20V AC (off-state)
- Relay Outputs: 16 channels (Form C contacts)
- Output Rating: 2A @ 240V AC / 2A @ 125V DC
- Communication Ports: 2x 8-pin mini-DIN (programming & communication)
- Protocol Support: DF1, DH-485, ASCII, MODBUS Master/Slave
- Power Consumption: 82 VA maximum
- Mechanical Life: 20,000,000 cycles (relay outputs)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.54 x 6.30 x 3.43 in)
- Memory Capacity: 6K program words, 4K data words
Packaging Contents
- One 1762-L40AWAR MicroLogix 1200 controller
- Comprehensive installation and programming documentation
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- What types of devices can connect via MODBUS protocol?
Power meters, smart relays, sensors, and other MODBUS-compatible equipment. - Can I use both communication ports simultaneously?
Yes, one port can program while the other handles HMI communication. - What is the maximum load capacity for relay outputs?
Each relay handles 2A at 240V AC or 125V DC resistive loads. - Does this controller support expansion modules?
Yes, it supports connection of additional MicroLogix expansion I/O modules. - What cable types work with the mini-DIN ports?
Use Allen-Bradley 1761-CBL-PM02 or equivalent serial programming cables.
