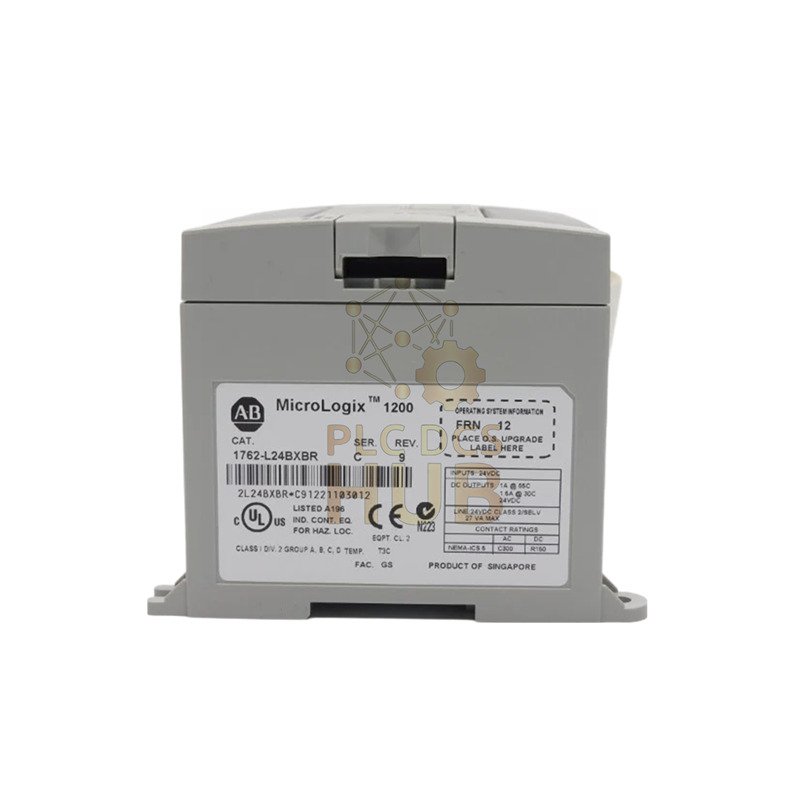

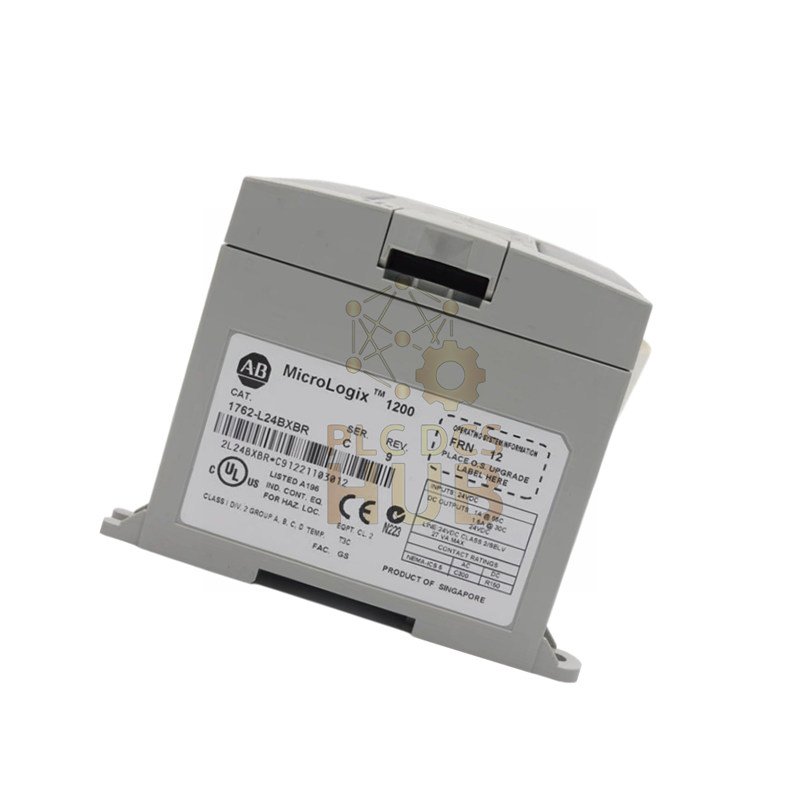

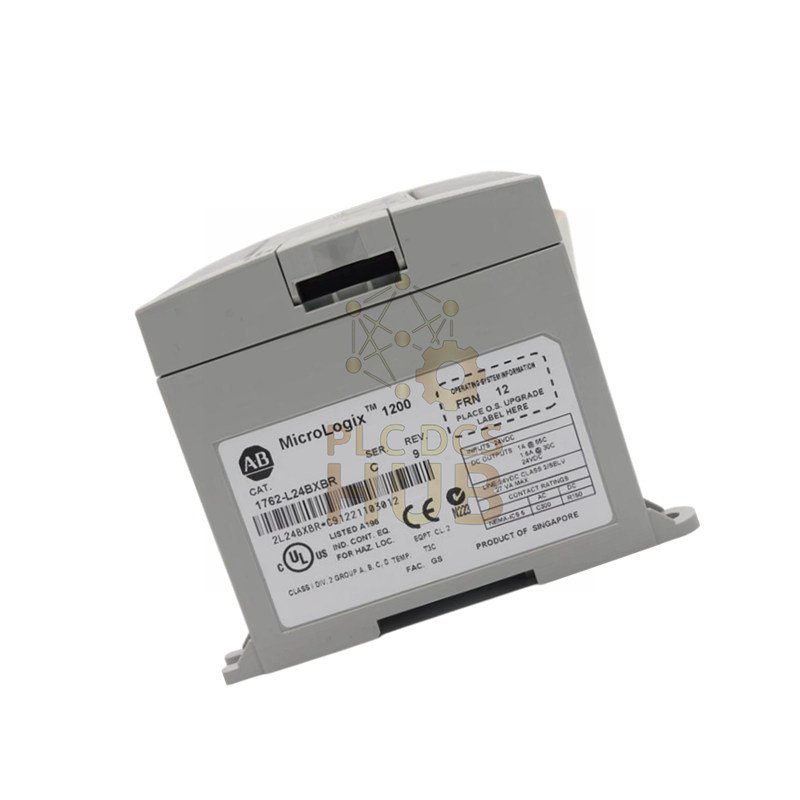

Allen-Bradley 1762-L24BXBR | MicroLogix 1200 Hybrid Controller
Get a quote today! This advanced PLC includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1762-L24BXBR is a versatile programmable logic controller. It combines multiple output types in one compact unit. It offers flexible control for complex automation applications.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1762-L24BXBR
- Product Line: MicroLogix 1200 Programmable Controller
- Input Power: 24V DC
- Digital Inputs: 10 standard + 4 fast @ 24V DC
- Fast Input Frequency: Up to 20 kHz (channels 0-3)
- Output Types: 5 relay, 4 FET, 1 high-speed FET
- Relay Rating: 10A @ 120V AC, 5A @ 240V AC
- Relay Life: 20 million mechanical cycles
- Communication: Two 8-pin mini-DIN RS-232 ports
- Protocols: DF1, DH-485, MODBUS, ASCII
- Special Features: Real-time clock, 2 trim potentiometers
- Power Consumption: 82 VA maximum
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.5 x 4.33 x 3.43 in)
- Weight: 1.1 kg (2.4 lbs)
- Expansion Capacity: Up to 6 additional modules
Installation & Applications
The 1762-L24BXBR mounts on DIN rail or panel. It is ideal for applications requiring mixed output types and high-speed counting. Maintain 50mm clearance on all sides for proper ventilation.
Frequently Asked Questions
Q1: What are the advantages of having multiple output types?
A1: You can control different devices optimally – relays for high power, FET for fast switching, and high-speed for precise timing.
Q2: What are the fast inputs used for?
A2: Fast inputs handle high-frequency signals like encoder pulses or rapid switch transitions.
Q3: Can I use both communication ports simultaneously?
A3: Yes, one port can be used for programming while the other communicates with HMIs or other devices.
Q4: What is the high-speed FET output capable of?
A4: It can generate precise pulse outputs for stepper motors, servo controls, or high-speed timing.
Q5: How do the trim potentiometers work?
A5: They allow manual adjustment of values that can be read by the program for calibration or operator control.
