Description

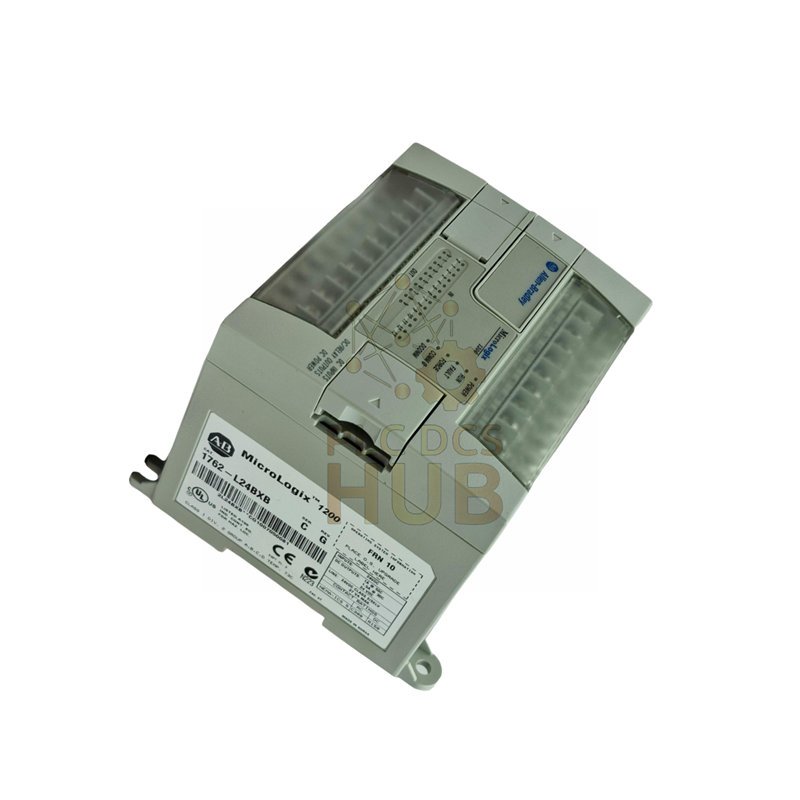

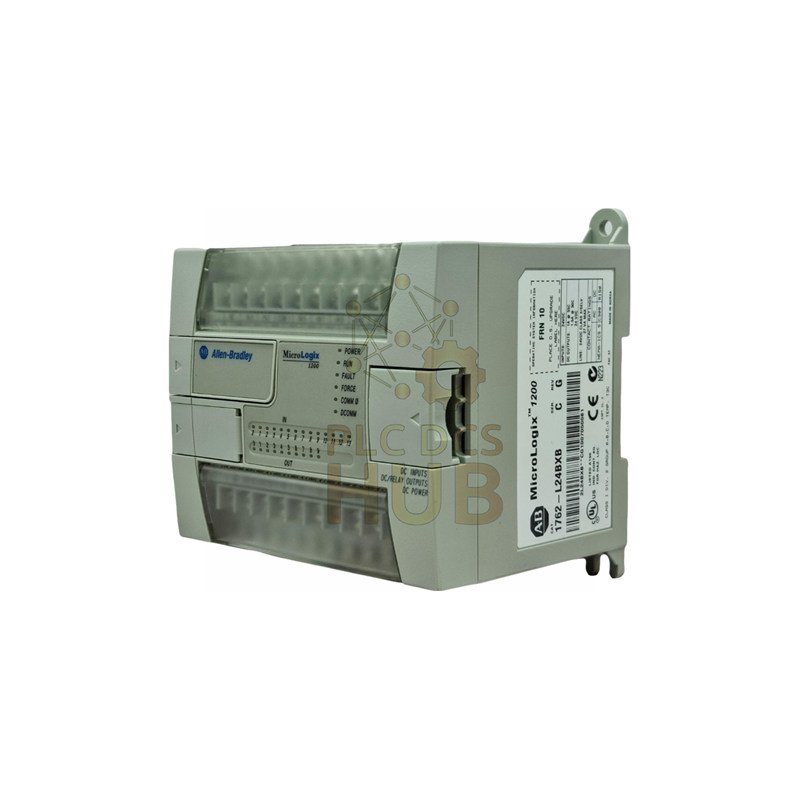

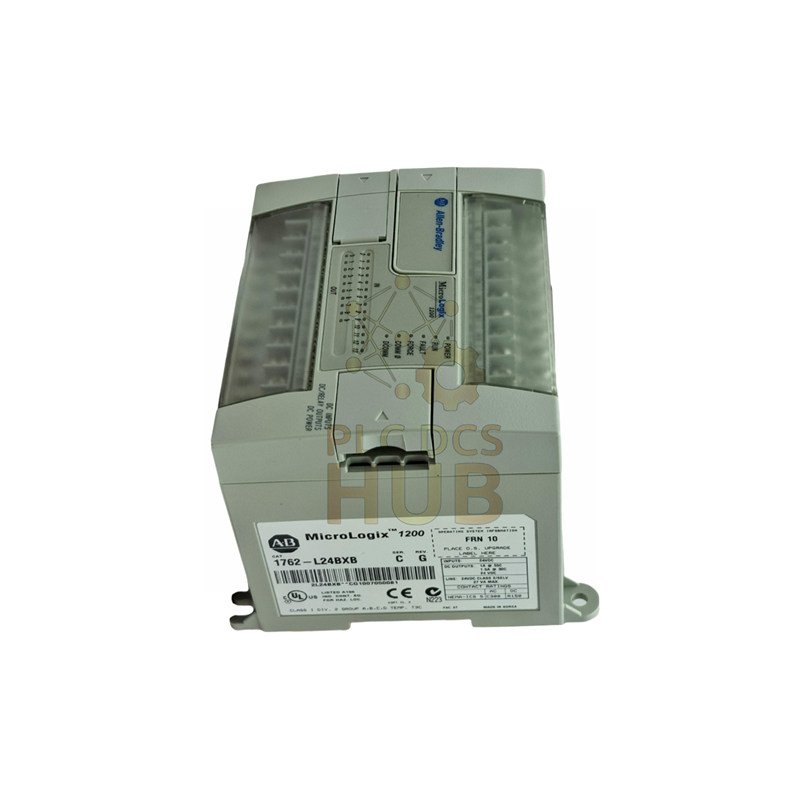

Allen-Bradley 1762-L24BXB: MicroLogix 1200 Programmable Controller
The Allen-Bradley 1762-L24BXB from Rockwell Automation is a versatile MicroLogix 1200 controller with mixed I/O capabilities. It combines digital inputs, relay outputs, and FET outputs in a compact design for various automation applications. For complete technical details and programming instructions, download the product manual here.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-L24BXB
- Series: MicroLogix 1200
- Controller Type: Programmable Logic Controller
- Input Power: 24V DC nominal
- Digital Inputs: 10 standard + 4 high-speed @ 24V DC
- Output Configuration: 5 relay + 4 FET + 1 high-speed FET
- Relay Ratings: 2A @ 240V AC / 2A @ 24V DC
- FET Output Current: 0.5A @ 24V DC per point
- Communication Port: 8-pin mini-DIN RS-232
- Protocol Support: DF1, DH-485, ASCII, MODBUS
- Power Supply Output: 400 mA @ 5V DC, 350 mA @ 24V DC
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.54 x 6.30 x 3.43 in)
- Memory Capacity: 6K program words, 4K data words
- High-speed Output: 0-20 kHz frequency capability
Packaging Contents
- One 1762-L24BXB MicroLogix 1200 controller
- Comprehensive installation and programming documentation
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- What is the difference between relay and FET outputs?
Relay outputs handle AC/DC loads, while FET outputs only switch DC loads. - Can I use the high-speed output for PWM applications?
Yes, the 20 kHz output supports pulse width modulation functions. - What communication cables work with the mini-DIN port?
Use Allen-Bradley 1761-CBL-PM02 or equivalent serial programming cables. - How many expansion modules can I connect?
This controller supports up to 6 additional MicroLogix expansion modules. - What is the maximum load for relay outputs?
Each relay output handles 2A at 240V AC or 24V DC resistive loads.
