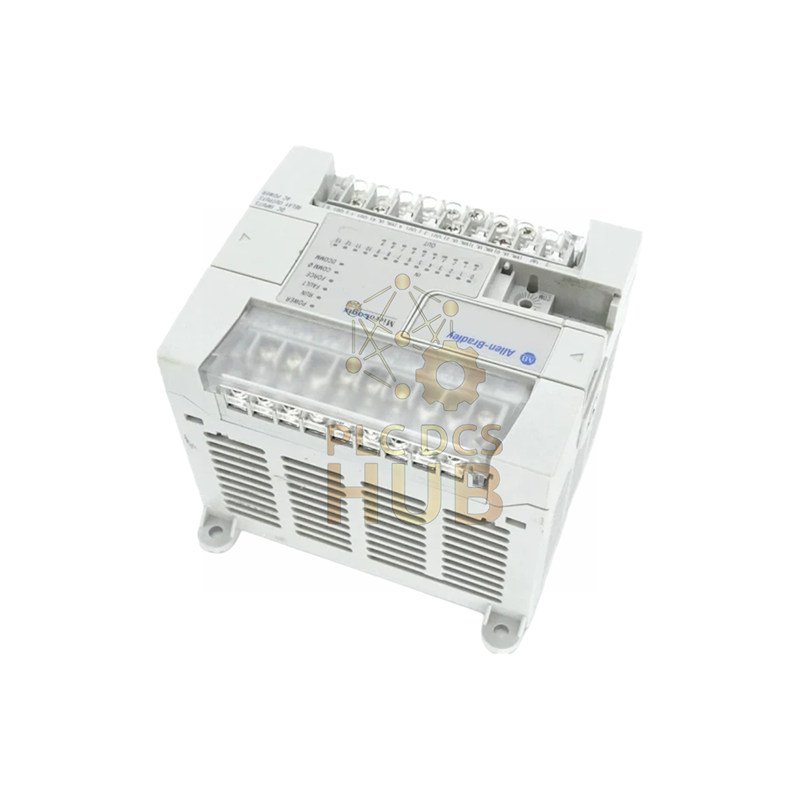

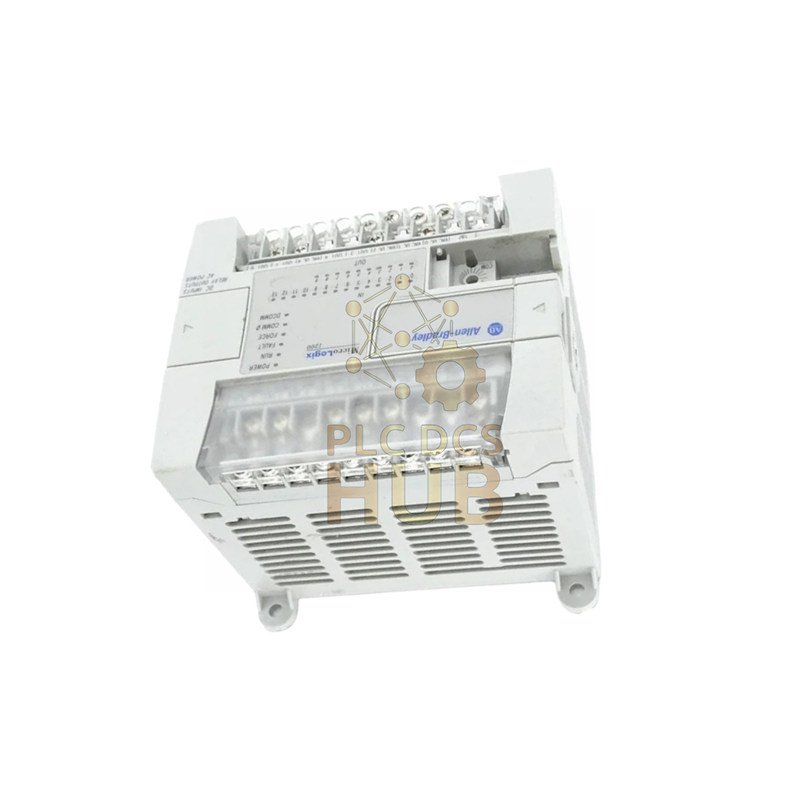

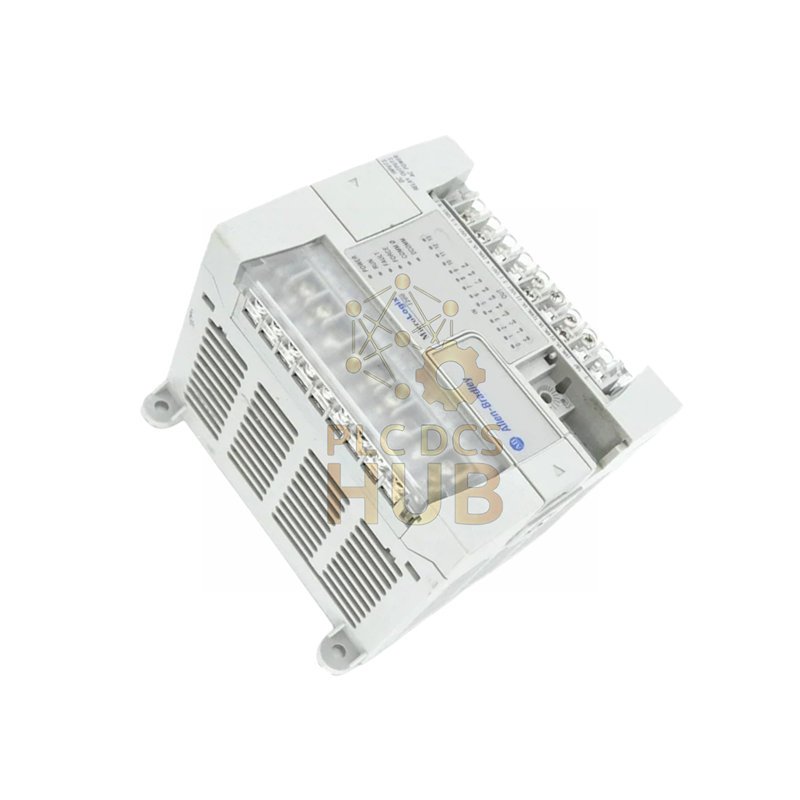

Allen-Bradley 1762-L24BWAR: MicroLogix 1200 DC Controller
The Allen-Bradley 1762-L24BWAR from Rockwell Automation is a compact programmable controller with embedded I/O. It combines 14 DC inputs and 10 relay outputs for flexible industrial control applications. For complete technical specifications and wiring diagrams, download the product manual here.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-L24BWAR
- Series: MicroLogix 1200
- Controller Type: Programmable Logic Controller
- Input Power: 120-240V AC (47-63 Hz)
- Digital Inputs: 10 standard + 4 high-speed @ 24V DC
- Input Voltage Range: 10-30V DC (on-state), 0-5V DC (off-state)
- Input Current: 2-12 mA (depending on input type)
- Response Time: 0-20 Hz (inputs 0-3), 0-1 kHz (inputs 4-13)
- Relay Outputs: 10 channels (Form C contacts)
- Output Rating: 2A @ 30V DC / 2A @ 250V AC
- Communication Port: RS-232 Programmer/HMI port
- Protocol Support: DF1 Full-Duplex, DH-485
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 89 x 110 x 87 mm (3.5 x 4.33 x 3.43 in)
- Memory Capacity: 6K program words, 4K data words
Packaging Contents
- One 1762-L24BWAR MicroLogix 1200 controller
- Comprehensive installation and programming documentation
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- What is the difference between standard and high-speed inputs?
High-speed inputs (0-3) handle frequencies up to 1 kHz for fast events. - Can I use the sensor supply for output devices?
No, the sensor supply only powers input devices like switches and sensors. - What programming software is compatible?
Use RSLogix 500 or Connected Components Workbench software. - How many expansion modules can I connect?
You can add up to 6 expansion modules for additional I/O capacity. - What communication protocols does it support?
It supports DF1 Full-Duplex and DH-485 communication protocols.
