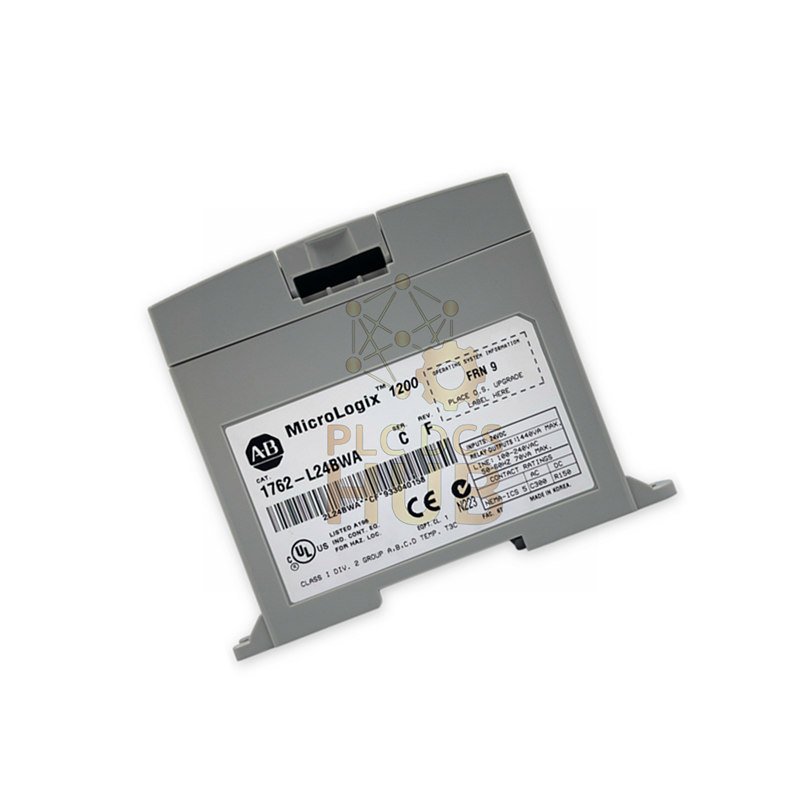

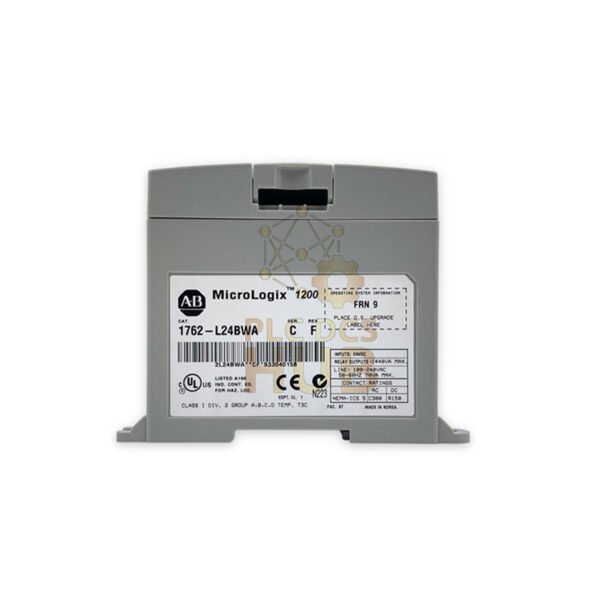

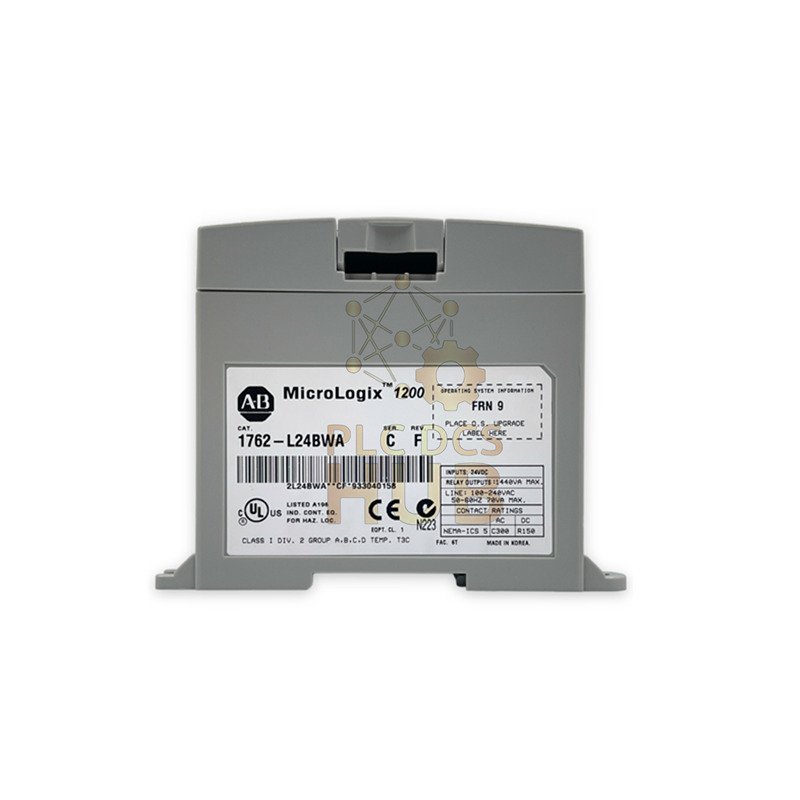

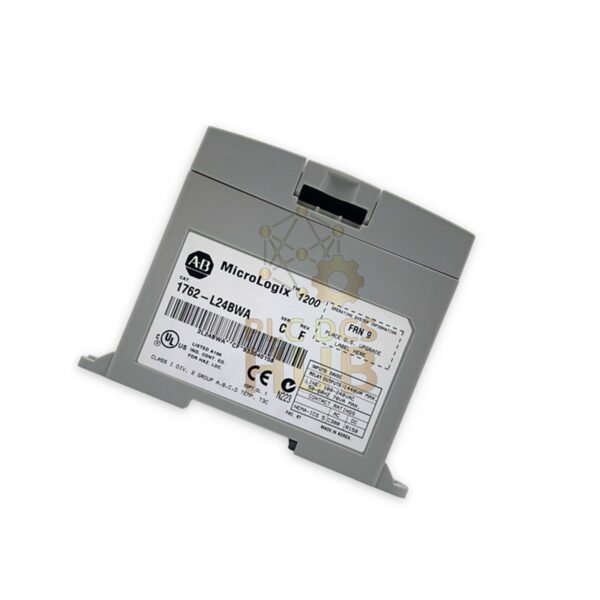

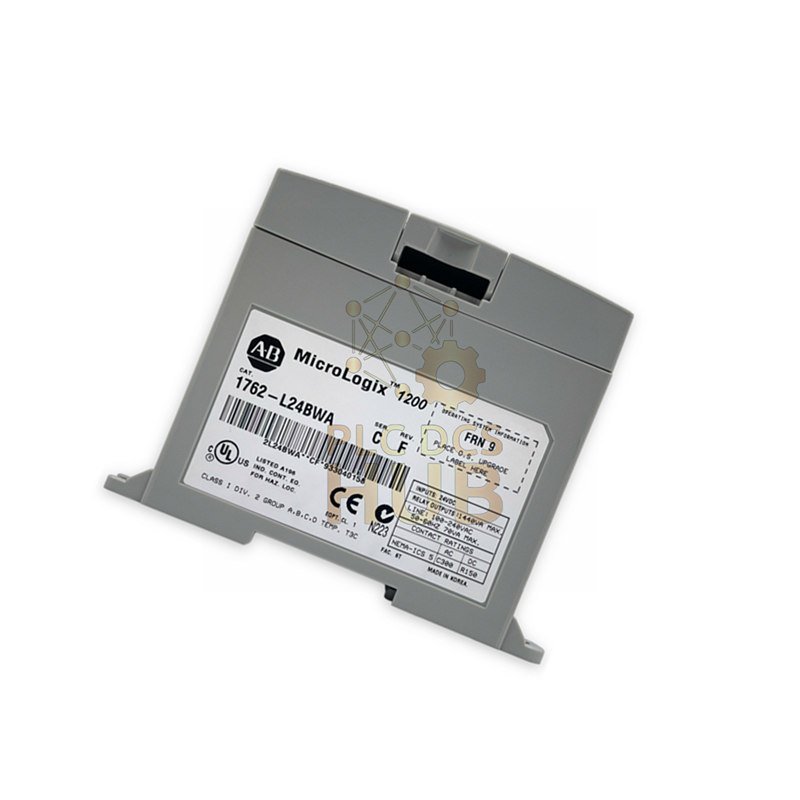

Allen-Bradley 1762-L24BWA | MicroLogix 1200 PLC Controller
Get a quote today! This versatile PLC includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1762-L24BWA is a compact programmable logic controller. It features 24V DC inputs and relay outputs in one unit. It is ideal for various industrial automation applications.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1762-L24BWA
- Product Line: MicroLogix 1200 Programmable Controller
- Input Power: 120-240V AC (47-63 Hz)
- Digital Inputs: 14 channels @ 24V DC (sink/source)
- Relay Outputs: 10 channels
- Contact Rating: 10A @ 120V AC, 5A @ 240V AC
- Relay Life: 20 million mechanical cycles
- Communication: 8-pin mini-DIN RS-232 port
- Protocols: DF1, DH-485, MODBUS Master/Slave, ASCII
- Heat Dissipation: 15.7W maximum
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 110 x 87 mm (3.54 x 4.33 x 3.43 in)
- Weight: 0.9 kg (2.0 lbs)
- Special Features: 2 built-in potentiometers for analog simulation
- Expansion: Supports up to 6 additional I/O modules
Installation & Applications
The 1762-L24BWA mounts on DIN rail or panel. It is perfect for machine control, packaging equipment, and material handling systems. Install in clean, dry industrial environments.
Frequently Asked Questions
Q1: What is the advantage of 24V DC inputs?
A1: 24V DC inputs are common in industrial settings and work well with proximity sensors and switches.
Q2: Can I connect this PLC to an HMI?
A2: Yes, through the RS-232 port or using protocol converters for network connectivity.
Q3: What are the built-in potentiometers for?
A3: They allow analog value simulation for testing and calibration without additional equipment.
Q4: How many expansion modules can I add?
A4: You can connect up to 6 expansion modules for additional I/O capabilities.
Q5: What programming software is required?
A5: Use Rockwell’s RSLogix 500 software to program this MicroLogix controller.
