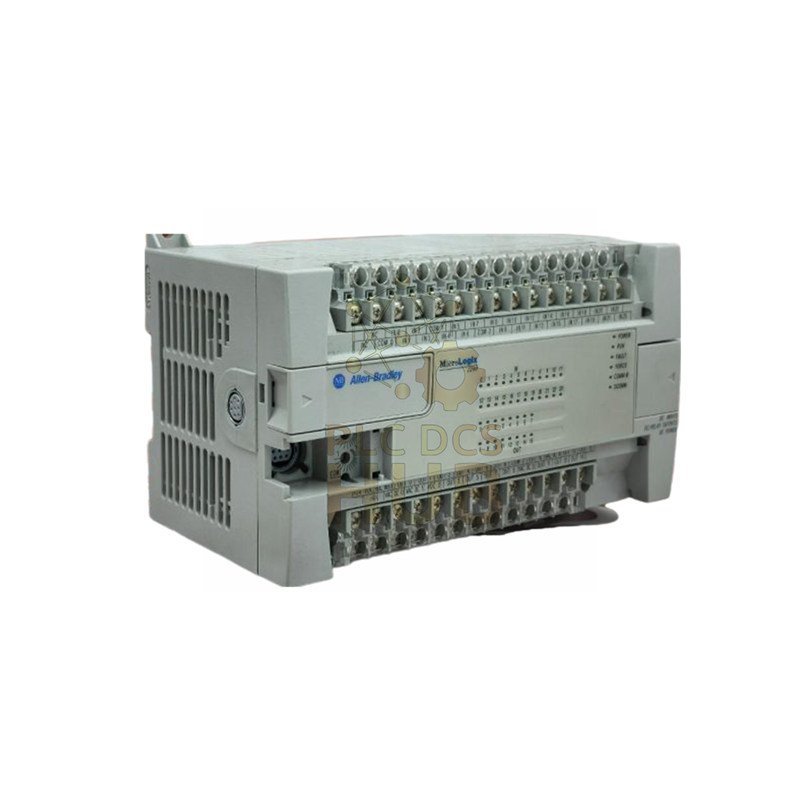

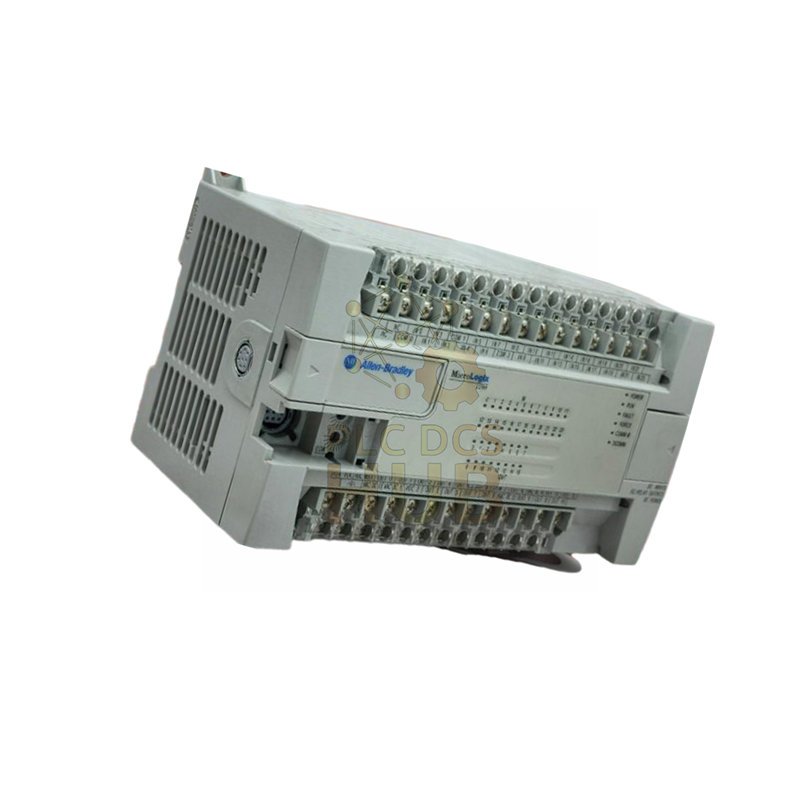

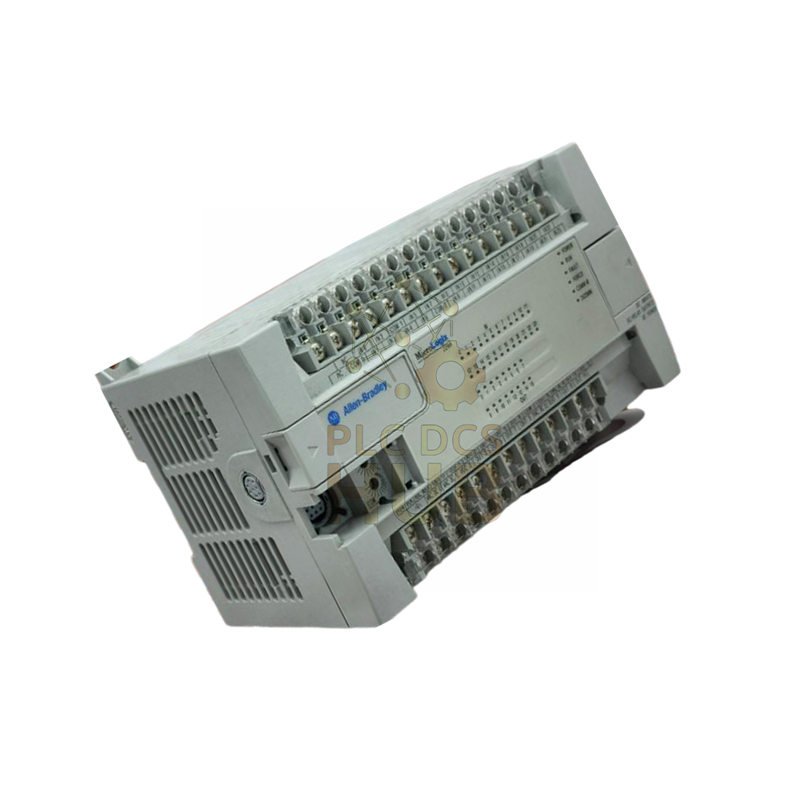

Allen-Bradley 1762-L24AWAR: MicroLogix 1200 Programmable Controller
The Allen-Bradley 1762-L24AWAR from Rockwell Automation is a versatile programmable logic controller for industrial automation. It combines 14 AC inputs and 10 relay outputs in a compact design. For complete programming and installation guidelines, download the product manual here.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model: 1762-L24AWAR
- Series: MicroLogix 1200
- Controller Type: Programmable Logic Controller (PLC)
- Input Power: 120-240V AC (47-63 Hz)
- Digital Inputs: 14 channels @ 120V AC
- Input Voltage: 79-132V AC (on-state), 0-20V AC (off-state)
- Input Current: 5-16 mA (on-state), 2.5 mA max (off-state)
- Relay Outputs: 10 channels (Form C)
- Output Rating: 2A @ 120V AC / 1A @ 240V AC
- Communication Port: RS-232 Programmer/HMI port
- Protocol Support: DH-485, DF1 Full-Duplex
- Isolation Voltage: 1500V AC (input to output)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 89 x 110 x 87 mm (3.5 x 4.33 x 3.43 in)
- Memory: 6K words (program), 4K words (data)
Packaging Contents
- One 1762-L24AWAR MicroLogix 1200 controller
- Installation documentation and quick start guide
- Express shipping via FedEx, UPS, or DHL available
- All products include 12-month performance warranty
Frequently Asked Questions
- What programming software works with this controller?
Use RSLogix 500 or Connected Components Workbench software. - Can I expand the I/O capacity of this controller?
Yes, you can add up to 6 expansion modules for additional I/O. - What types of loads can the relay outputs handle?
The outputs control resistive, inductive, and lamp loads up to 2A. - Is this controller suitable for motor control applications?
Yes, it can control motors through contactors or motor starters. - What communication protocols are supported?
It supports DH-485 and DF1 Full-Duplex protocols.
