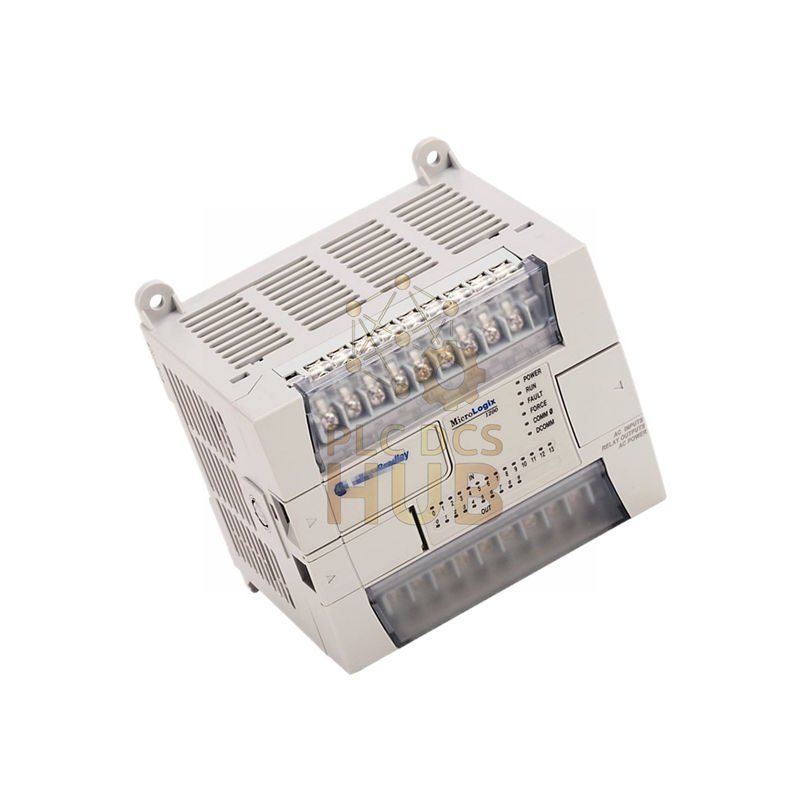

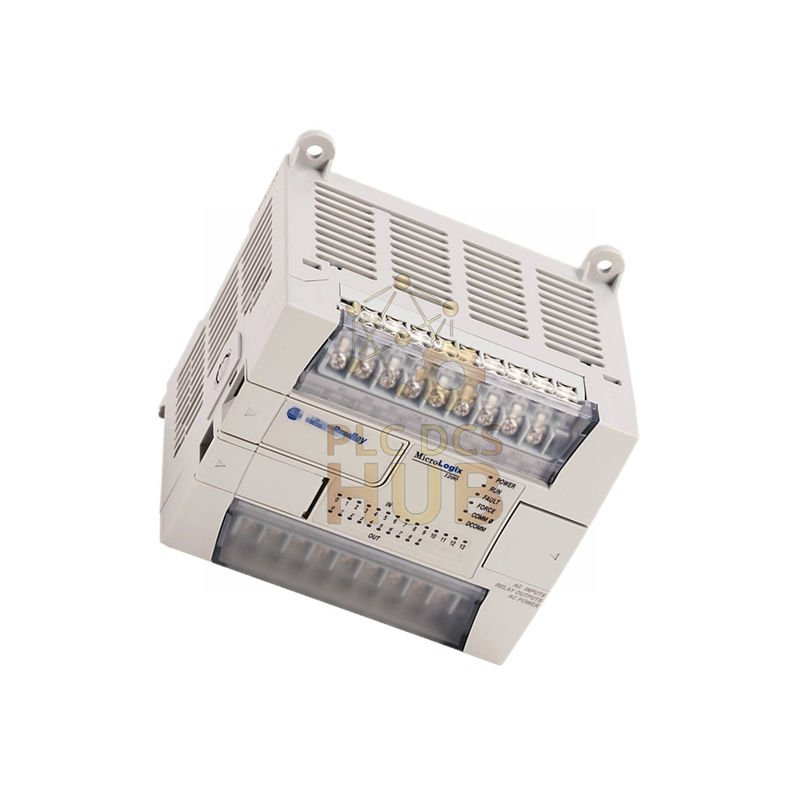

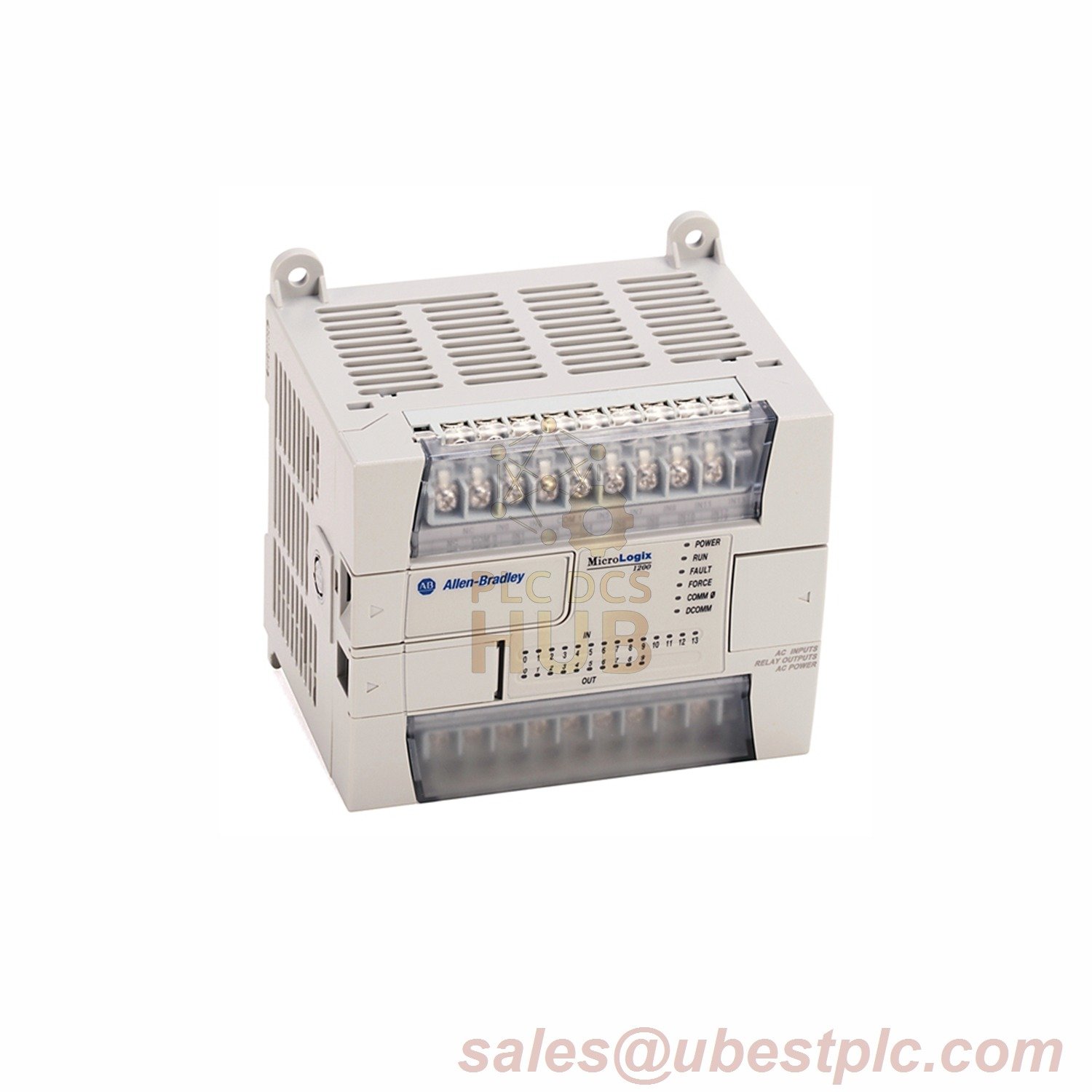

Allen-Bradley 1762-L24AWA | MicroLogix 1200 PLC Controller
Get a quote today! This reliable PLC includes our 12-month warranty and ships fast worldwide via FedEx, UPS, or DHL.
Product Overview
The Allen-Bradley 1762-L24AWA is a compact programmable logic controller. It has built-in inputs and outputs for complete control. It is perfect for small to medium automation applications.
Key Features & Benefits
- Built-in I/O: 14 AC inputs and 10 relay outputs in one unit.
- Flexible Power: Works with 100-240V AC power supply.
- Multiple Protocols: Supports DF1, DH-485, ASCII, and MODBUS.
- Robust Relays: 10A relay contacts handle various load types.
- Compact Design: All-in-one controller saves panel space.
Detailed Technical Specifications
- Brand & Model: Allen-Bradley 1762-L24AWA
- Product Line: MicroLogix 1200 Programmable Controller
- Input Power: 100-240V AC (47-63 Hz)
- Digital Inputs: 14 channels @ 120V AC
- On-State Input: 79-132V AC
- Input Current: 5-16 mA (depending on voltage)
- Relay Outputs: 10 channels
- Contact Rating: 10A @ 120V AC, 5A @ 240V AC
- Max Load: 1440VA per controller
- Relay Life: 20 million mechanical cycles
- Communication: 8-pin mini-DIN serial port
- Protocols: DF1, DH-485, ASCII, MODBUS
- Power Consumption: 68 VA maximum
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 90 x 160 x 87 mm (3.54 x 6.3 x 3.43 in)
- Weight: 0.9 kg (2.0 lbs)
- Certifications: UL, cUL, CE
Frequently Asked Questions
Q1: What types of loads can the relay outputs control?
A1: The relays can control motors, solenoids, contactors, and lights up to 10A @ 120V AC.
Q2: Can I expand this controller with additional I/O?
A2: Yes, you can add up to 6 expansion modules for more inputs and outputs.
Q3: What programming software is required?
A3: Use Rockwell’s RSLogix 500 software to program this MicroLogix controller.
Q4: What is the advantage of AC inputs?
A4: AC inputs are less sensitive to electrical noise and work well in industrial environments.
Q5: Can this controller communicate with other devices?
A5: Yes, the serial port supports multiple protocols for communication with HMIs, drives, and other devices.
