330905-00-12-10-02-05 Bently Nevada – Proximity Probe

Bently Nevada-logo
Categories: , , , , , , , , SKU: 330905-00-12-10-02-05 Tag:

$145.00 $256.00

0 reviews

Reviews Summary by AI:

10 in stock

Description

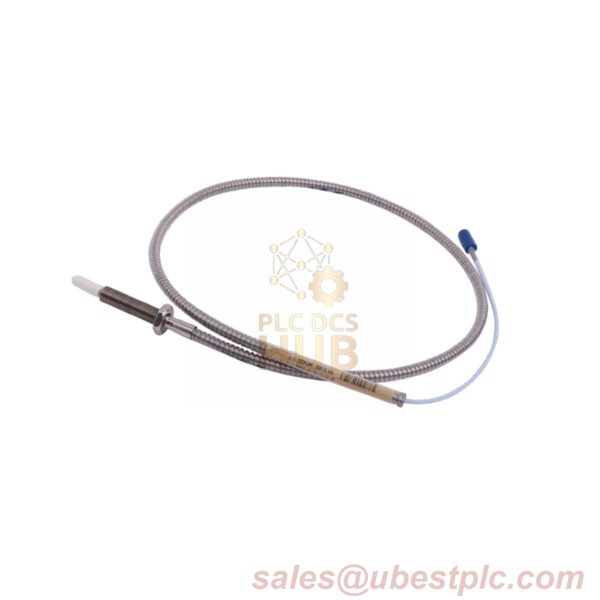

Bently Nevada 3300 NSv Proximity Probe

New & Original with 12-month factory warranty. This multi-certified probe features a 120mm stainless steel case, 1.0-meter armored cable, and Viton® O-ring sealing. Engineered for hazardous environments, 330905-00-12-10-02-05 combines global compliance, precision measurement, and backward compatibility with 3300 RAM systems.

Technical Specifications

ParameterDetails
Part Number330905-00-12-10-02-05
Suffix Code Breakdown
000mm unthreaded (fully threaded M10X1)
12120mm case length
101.0m FEP-insulated triaxial cable
02ClickLoc™ miniature coaxial connector
05ATEX/IECEx/CSA certifications
Electrical
  • DC Resistance (1.0m): 4.2Ω ±0.5
  • Scale Factor: 7.87 V/mm (±12.5%/-20%)
  • Frequency Response: 0–10 kHz (±3dB)
Mechanical
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Case Material: AISI 304 SST with M10X1 threads
  • Max Torque: 33.9 N·m (300 in·lb)
  • Bend Radius: ≥25.4mm (1.0″)
Environmental
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (avoid sustained < -34°C)
  • Min Target Size: 8.9mm diameter (13mm recommended)

Contact Us: For COO, datasheets, or technical support, email sales@ubestplc.com.

Additional information

Weight0.15 kg
Dimensions300 × 330 × 60 mm
