Description
Bently Nevada 3300 NSv Proximity Probe
Product Overview

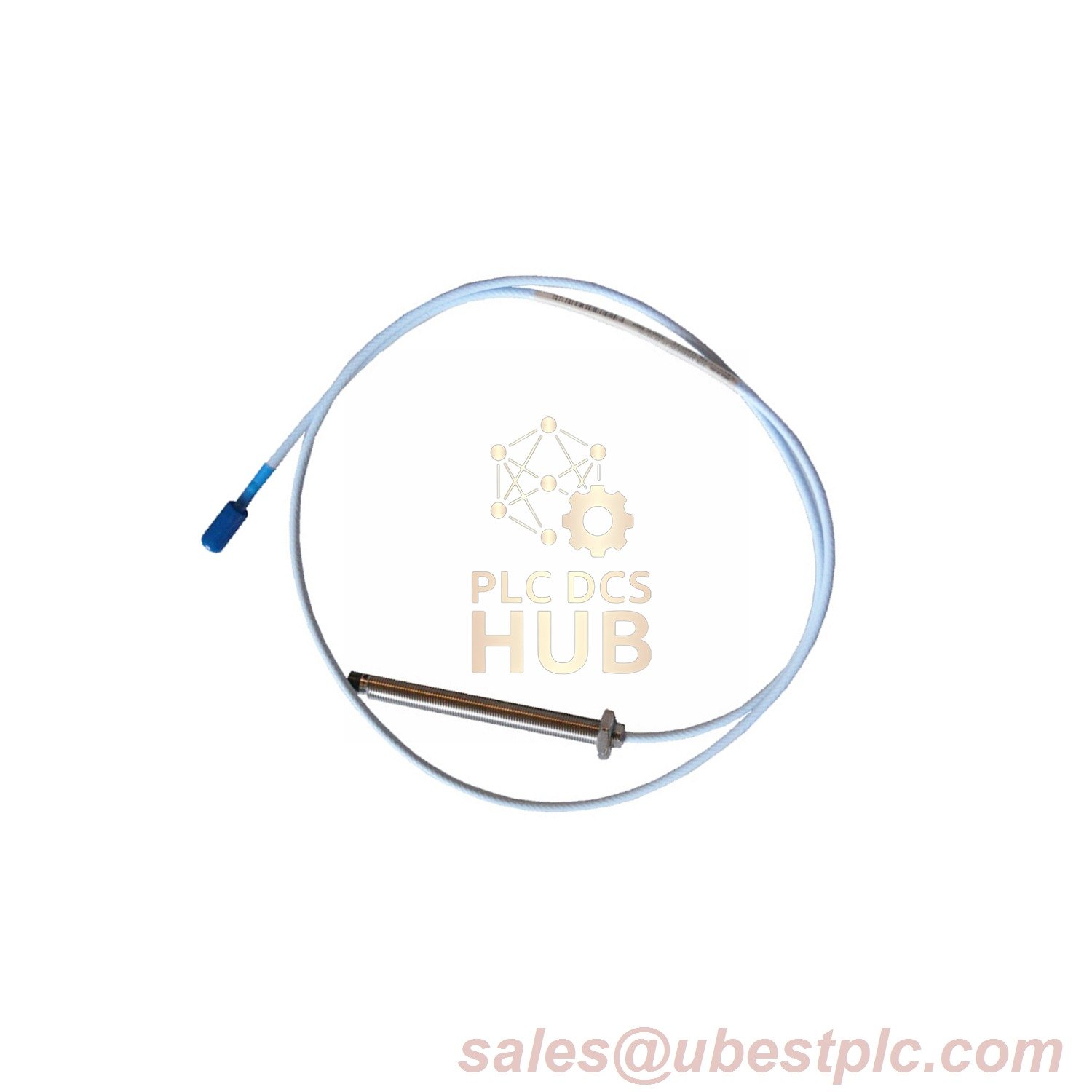

The 330905-00-18-05-02-05 is an ATEX/IECEx/CSA-certified vibration probe designed for explosive environments. Featuring a 180mm deep-mount case and 0.5m armored cable, this industrial sensor operates from -52°C to +177°C, delivering reliable performance in harsh chemical and high-pressure applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 330905-00-18-05-02-05 |
| Configuration Code | 00(Full Thread)-18(180mm Case)-05(0.5m)-02(ClickLoc)-05(Multi-Cert) |
| Electrical Resistance | 4.0Ω ±0.5 @ 0.5m |
| Measurement Range | 0.25-1.75mm (±0.06mm accuracy) |
| Pressure Rating | 15 bar (Viton® O-ring) |
| Certifications | ATEX II 1/2G, IECEx, CSA |
Key Advantages
- 50% deeper installation capability vs standard probes
- Gold-plated ClickLoc™ connectors with MIL-STD-1344 vibration resistance
- PPS tip resists H₂S concentrations up to 15,000 ppm
Why Choose This Model?
- Maintains ±3dB signal integrity at 10 kHz over 305m
- Triple-certified for global hazardous area compliance
- 316L stainless steel armor withstands 50G shock
Contact Information
For certification documents and technical support:
Email: sales@ubestplc.com
