Description
???? Product Overview

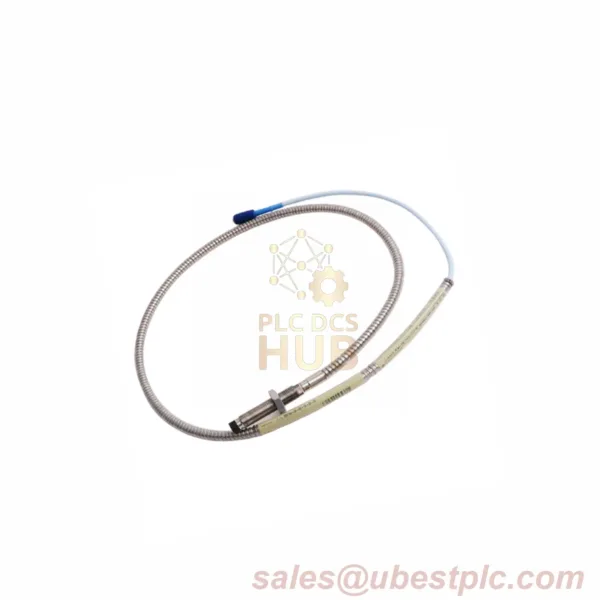

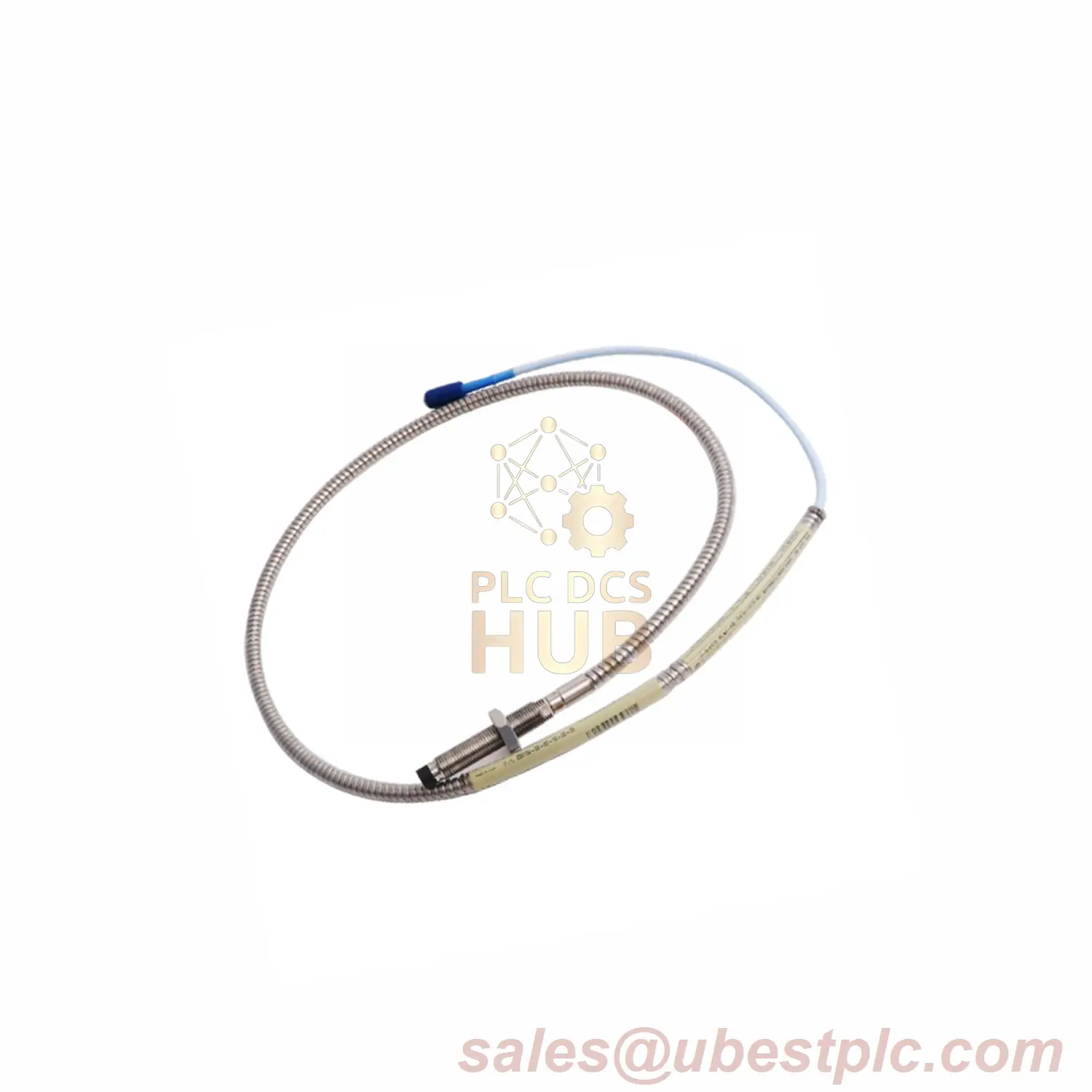

Bently Nevada 330905-00-25-05-12-00 is a 3300 NSv Proximity Probe designed for precision vibration and position monitoring in industrial machinery. NEW & ORIGINAL in factory packing with 12-month warranty.
???? Key Specifications
Probe Type: M10X1 Thread, Unarmored
Total Length: 0.5m (20″) with 4.0Ω ±0.5Ω DC Resistance
Connector: Miniature Coaxial ClickLoc + FluidLoc Cable
Linear Range: 0.25mm–1.75mm (10–70 mils) | 7.87 V/mm ISF
Temp Range: -52°C to +177°C | Max Torque: 0.56 N•m
⚡ Performance Features
Frequency Response: 0–10 kHz (±3dB) with 305m Field Wiring
Target Compatibility: Min 8.9mm Diameter | Recommended 13mm+
Pressure Seal: Viton O-Ring | Case Material: AISI 304 SST
Cable Capacitance: 69.9 pF/m | Shield Resistance: 0.066Ω/m
???? Package Details
Thread Engagement: Max 15mm | Bend Radius: 25.4mm
Chemical Resistance: Enhanced PPS Tip Material
Interchangeable: Compatible with 3300 RAM Probes
Certification: Agency Approval Not Required (-00)
