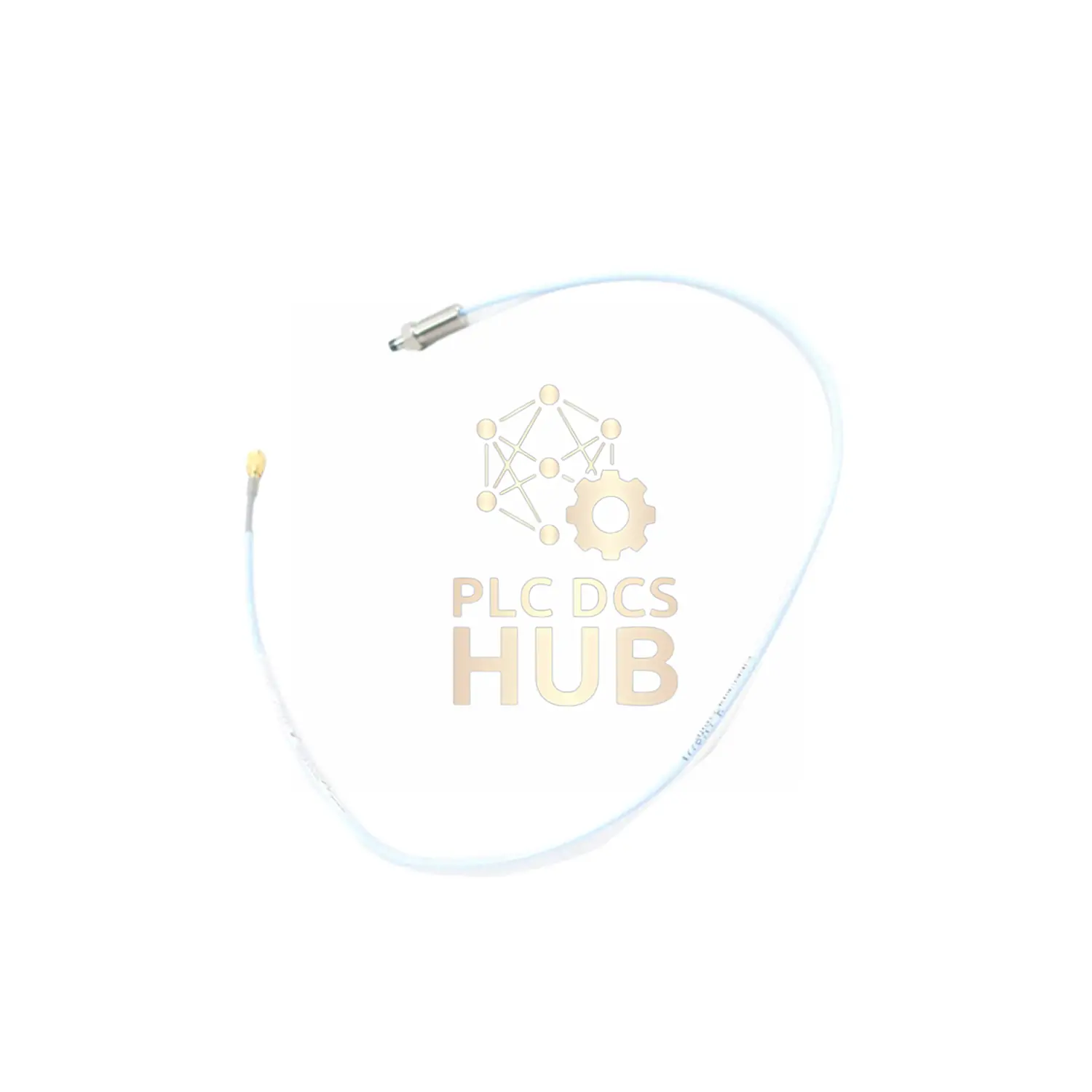

330906-02-12-05-02-05 Bently Nevada 3300 NSv Reverse Mount Probe

Description

Bently Nevada 3300 NSv Reverse Mount Probe: Superior Vibration Monitoring

Product Description

Upgrade your industrial monitoring with the Bently Nevada 330906-02-12-05-02-05 reverse mount vibration probe. Engineered in the U.S.A. for harsh environments, this 3/8-24 UNF threaded probe delivers enhanced chemical resistance and superior side-view performance versus standard probes. Ideal for process compressors, its gold-plated ClickLoc connectors and patented TipLoc molding ensure reliable, long-term operation in extreme conditions.

Technical Data

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Full Suffix: 330906-02-12-05-02-05
• Range: 1.5 mm (60 mils)
• Output Signal: -1 to -13 Vdc
• Accuracy: ±0.5 ohms probe resistance
• Temp Range: -52°C to +177°C (-62°F to +351°F)
• Thread: 3/8-24 UNF (Reverse Mount)
• Cable: 0.5m with ClickLoc connector

Installation Guide

• Max torque: 7.5 N•m (66 in•lb)
• Optimal gap setting: 1.0 mm (40 mils)
• Max wiring distance: 305 meters (shielded triad cable)

Packaging Includes

• 1x Probe assembly (AISI 304 stainless steel body)
• PPS polymer tip with Viton O-ring seal
• Note: Certificate of Origin (COO) available upon request

Shipping Options

Global delivery via FedEx, UPS, or DHL. 12-month manufacturer warranty included.

FAQ

Q: What cable length options exist?
A: Standard 0.5m (20″), other lengths configurable via suffix codes

Q: Minimum operating temperature?
A: Avoid sustained use below -34°C (-30°F) to prevent seal damage

Q: Thread compatibility?
A: Reverse mount version supports 3/8-24 UNF or M10x1 threads
