Description

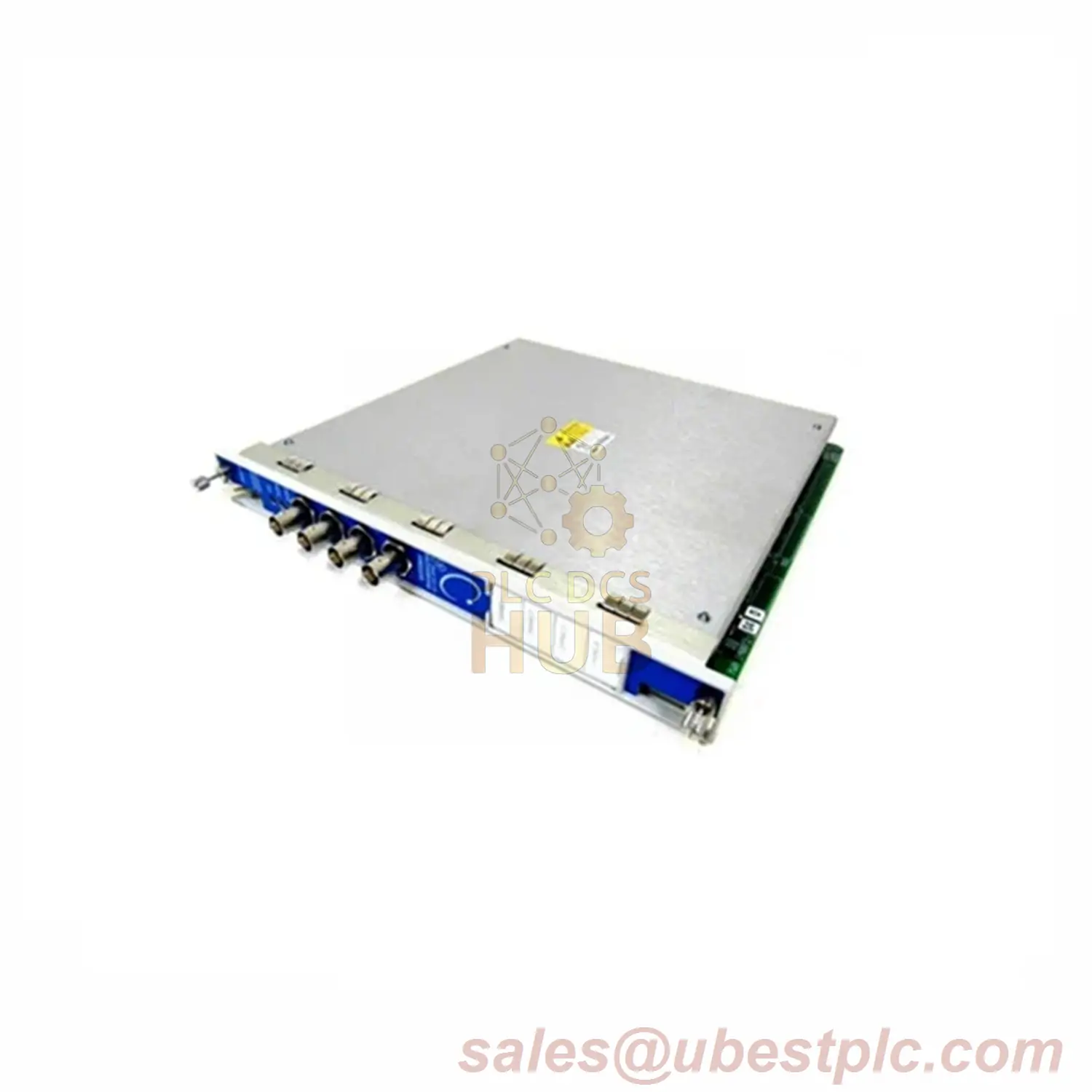

Bently Nevada 4-Channel Relay Module
3500/32-01-02: Full-height industrial relay module for advanced alarm logic in machinery protection systems. Features programmable voting logic and epoxy-sealed relays for harsh environments.
Core Specifications for 3500/32-01-02
- Channels: 4 independent relay outputs
- Logic Programming: AND/OR gate configurations via 3500 Rack Software
- Contact Rating: 5A @ 250VAC / 30VDC
- Relay Life: 100,000 cycles @ 5A load
Performance Details
- Power Draw: 6W (typical operation)
- Environmental: -30°C to +65°C operational | 95% humidity
- Arc Suppression: 250Vrms integrated
- Configuration: Normally De-energized/Energized selectable
Physical Configuration
- Main Module: 241×24.4x242mm | 0.7kg
- I/O Module: 241×24.4×99.1mm | 0.4kg
- Rack Space: 1 front + 1 rear slot (full-height)
Diagnostic Indicators
- ● OK LED (Module health)
- ● TX/RX LED (Data comms)
- ● CH ALARM LED (Per-channel status)
Industrial Application
Implemented in offshore gas compressor protection systems, executing 32-step voting logic to prevent surge events with <0.5ms response latency.
Package Contents
- Main relay module
- I/O interface module
- Mounting hardware kit
- Configuration guide
