Description

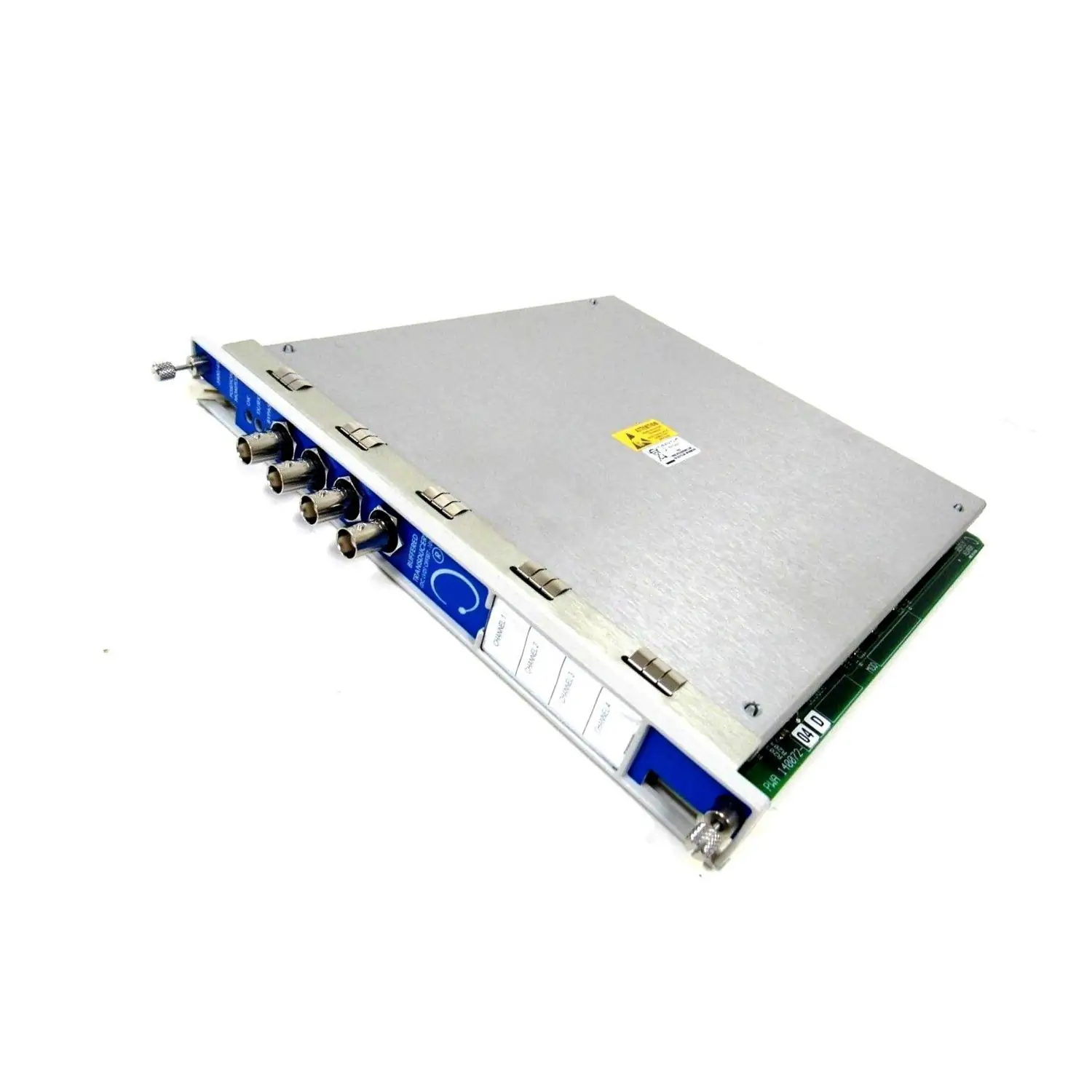

Bently Nevada 3500/91 EGD Gateway
The 161204-01 is an **Ethernet Global Data (EGD) gateway** designed to integrate Bently Nevada’s 3500 Machinery Protection System with plant-wide control networks. It enables real-time data sharing for enhanced operational visibility and predictive maintenance in industrial environments.
Technical Data
- Brand: Bently Nevada
- Part No.: 161204-01
- Suffix Breakdown:
- 161204: Base Model (3500/91 EGD Gateway)
- -01: Configuration Code
- Protocol: Ethernet Global Data (EGD)
- Voltage Input: 18–36V DC
- Speed: 10/100 Mbps (TCP/IP)
- Power: 7.5W
- Operating Temp: 0°C to +60°C
- Data Rate: Up to 100 Mbps
- Dimensions: 241.3mm x 24.4mm x 241.8mm
- Weight: 0.79kg (1.75 lbs)
Features
- **Seamless integration** with 3500 Series monitoring systems
- Front-panel **LED indicators** (Power, Link, Activity)
- Robust design for industrial Ethernet networks
Installation
- Mounting: Rack-mounted in 3500 Series racks
- Compatibility: Works with Ethernet TCP/IP networks and 3500/92 Web Interface Module
Certifications
- Complies with industrial communication standards (e.g., IEEE 802.3).
Applications
Deployed in wastewater treatment plants to centralize pump vibration and temperature data. Case Study: Integrated into a mining conveyor system, reducing data latency by 40% and enabling remote diagnostics.
Contact: For quotes or support, email sales@ubestplc.com.
