Description
Multi-Channel Temperature Monitoring System

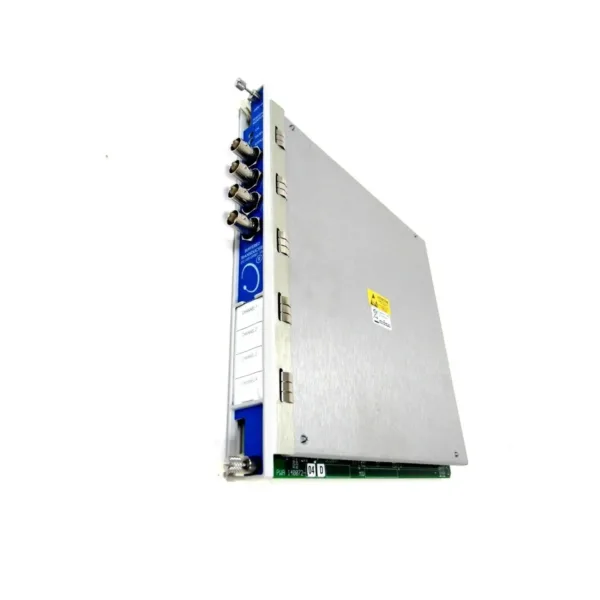

The Bently Nevada 3500/60-01-01 provides 6-channel temperature supervision for critical industrial processes, supporting both RTD (Pt100, Pt200) and Thermocouple (J/K/T types) inputs. This module enables real-time monitoring with configurable alarm thresholds via 3500 Configuration Software.
Core Specifications for 3500/60-01-01
Input Characteristics
- Channel Capacity: 6 simultaneous inputs
- Input Isolation: 1500 Vrms channel-to-channel
- Lead Resistance Compensation: Auto-correct up to 20Ω
Output Performance
- Current Source Stability: ±0.01%/°C drift
- Recorder Output: 4-20mA ±0.25% F.S.
- Update Rate: 500ms per channel
Advanced Technical Parameters
| Category | Specification |
|---|---|
| Signal Conversion | 24-bit ADC resolution |
| RTD Excitation | 925μA ±15μA @25°C |
| Thermocouple Compensation | ±1.5°C accuracy (CJC) |
Environmental Compliance
- ▶ Operating Humidity: 5-95% non-condensing
- ▶ Vibration Resistance: 5g RMS (5-500Hz)
- ▶ Altitude Rating: 2000m operational
Mechanical Configuration
Monitor Module: 241.3×24.4×241.8mm | 0.91kg
I/O Module: 241.3×24.4×99.1mm | 0.45kg
Barrier I/O: 241.3×24.4×163.1mm | 0.46kg
Certification Ready
- Designed to meet IEC 61000-6-2/4 EMC standards
- Complies with ANSI/ISA-12.12.01 nonincendive requirements
Typical Applications
- ???? Power Generation: Turbine bearing temp monitoring
- ???? Chemical Processing: Reactor jacket temp control
- ???? HVAC Systems: Chiller plant supervision
Configuration Support: Contact sales@ubestplc.com for DIN rail mounting kits.
