Description
Product Overview

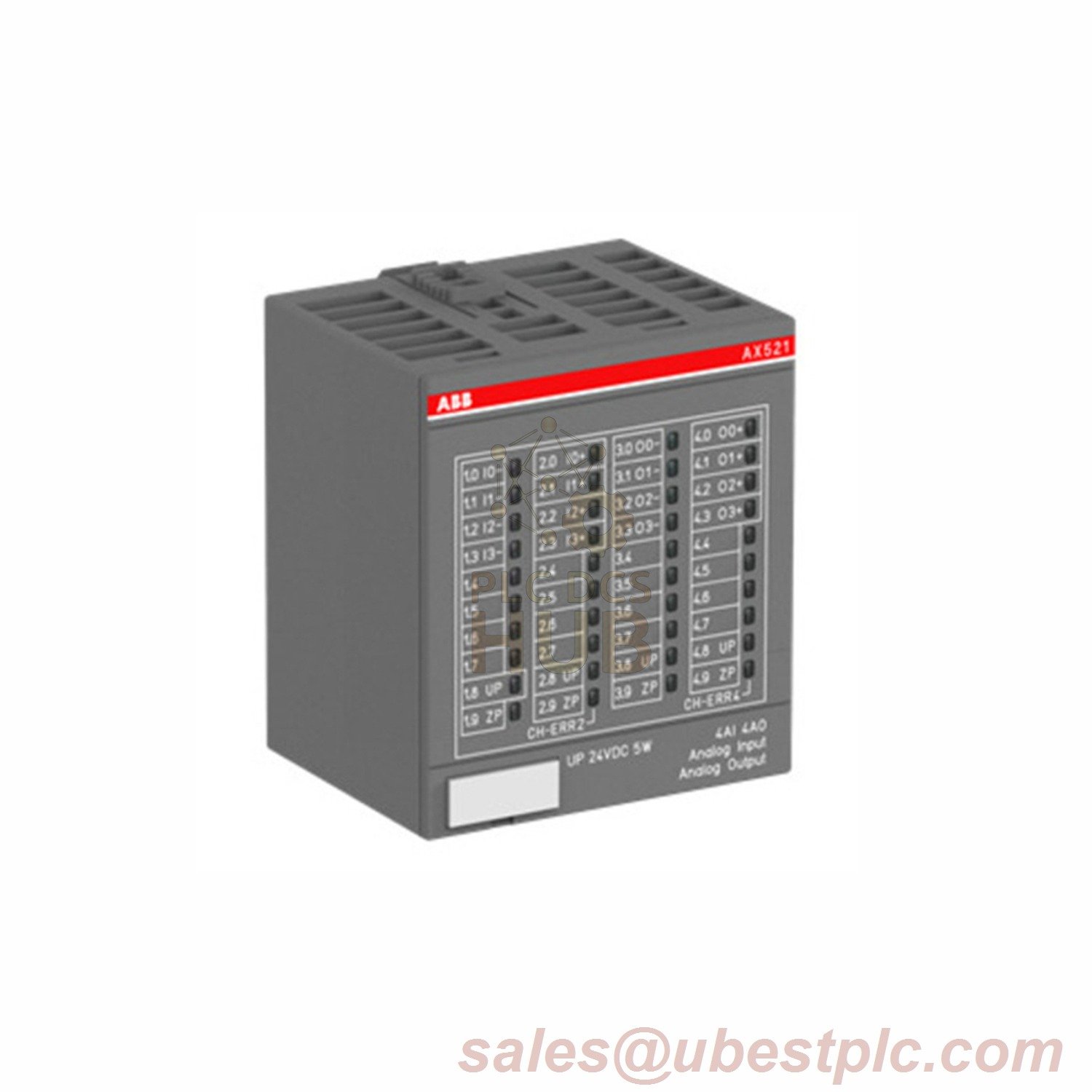

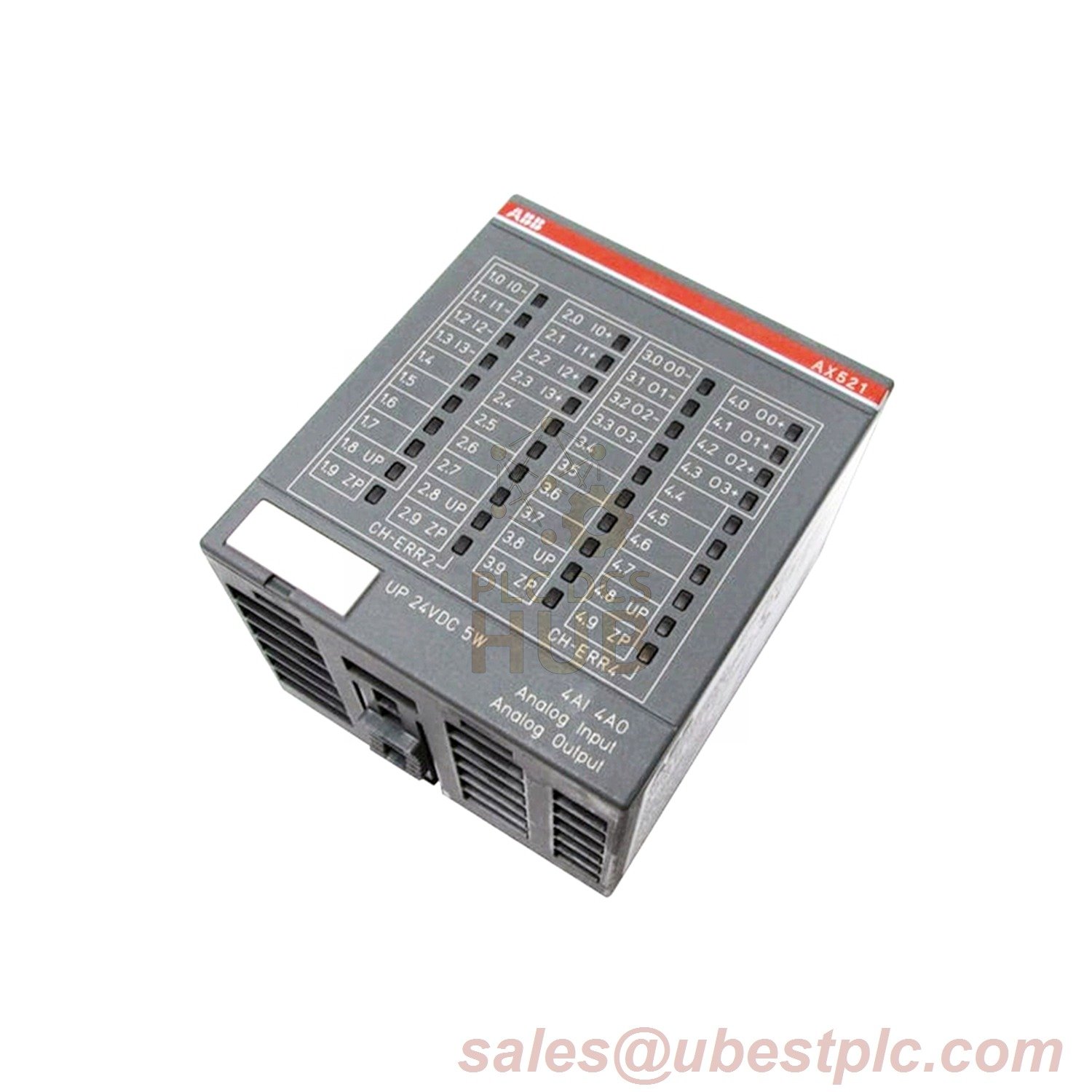

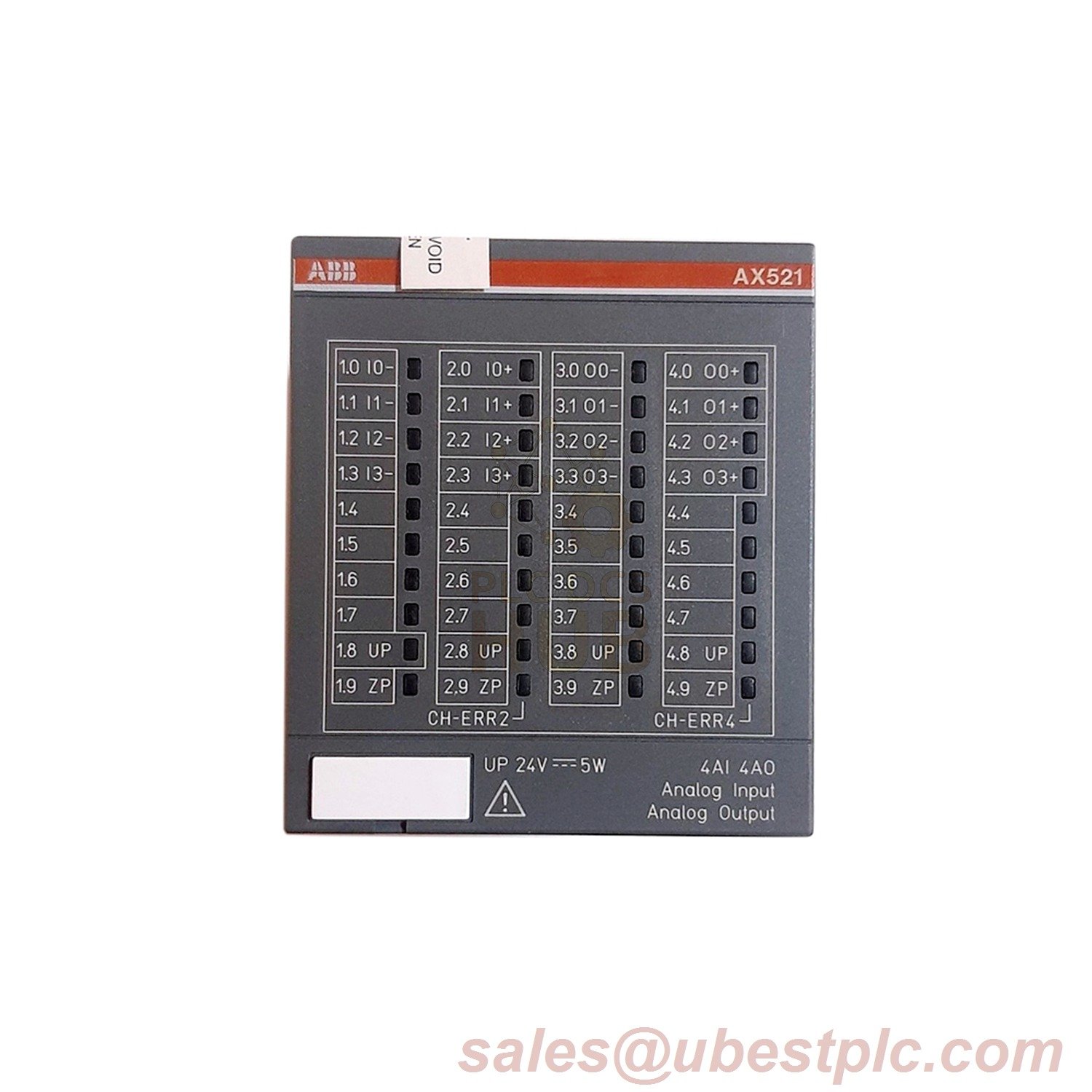

The ABB AX521 analog input/output module delivers versatile signal processing for the S500 series and AC500 PLCs, combining 4 analog inputs (U, I, RTD) and 4 analog outputs (U, I) in a compact, 1-wire configuration. Designed for precision automation, it supports 12-bit resolution across all channels, ensuring accurate data acquisition and control in industrial environments. With a lightweight design (62x76x67.5 mm, 0.129 kg) and IP00 protection, it is ideal for integration into controlled cabinets or panels.
Technical Specifications
- Brand: ABB
- Model: AX521 (3ABD10066541)
- Input Channels: 4 AI (U, I, RTD)
- Output Channels: 4 AO (U, I)
- Resolution: 12-bit
- Wiring: 1-wire configuration
- Power Supply: Not specified (compatible with S500/AC500 systems)
- Operating Temperature: 0°C to +60°C
- Dimensions (LxHxW): 62 mm x 76 mm x 67.5 mm
- Weight: 0.129 kg (net), 0.153 kg (gross)
- Protection Rating: IP00 (for controlled environments)
- Certifications:
- UNSPSC: 32151700 (PLC I/O modules)
- WEEE Compliance: Not in scope
Contact Information
For technical inquiries or orders, contact sales@ubestplc.com
