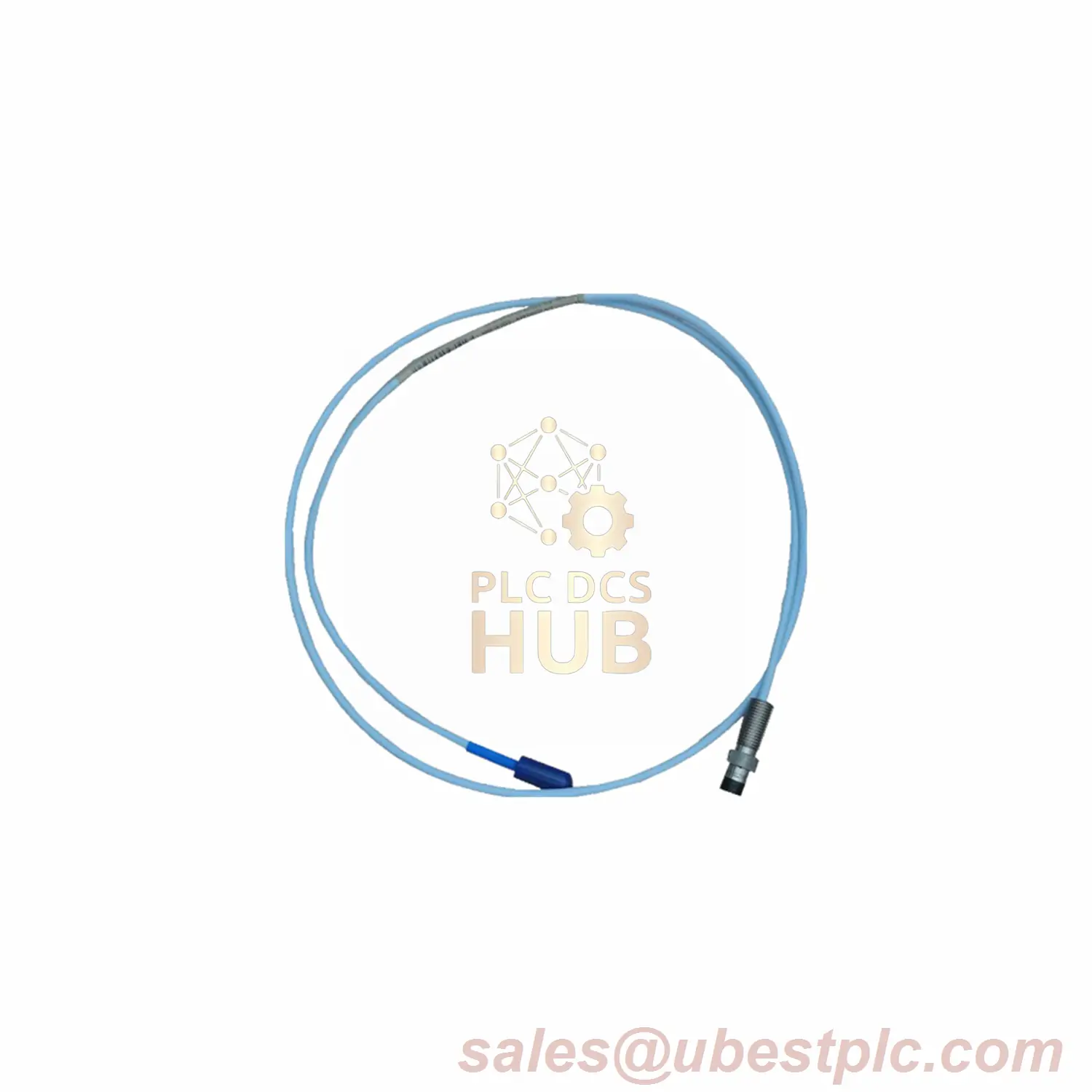

Bently Nevada 330171-00-20-90-02-00 Vibration Probe
Product Overview
New 5mm vibration probe from Bently Nevada. 1/4-28 UNF thread design for industrial machinery monitoring. Made in USA. Includes optional Certificate of Origin (COO).
Technical Specifications
Brand: Bently Nevada
Full Model: 330171-00-20-90-02-00
Key Parameters:
- Measurement System: 3300 Series
- Probe Diameter: 5mm
- Thread Type: 1/4-28 UNF
- Cable Length: 9.0 meters (29.5 ft)
- Temperature Range: -35°C to +177°C (-31°F to +351°F)
- Power Requirement: -17.5Vdc to -26Vdc
- Output Resistance: 50 Ω
Model Suffix Details
- 00: 0 inch unthreaded length
- 20: 2 inch case length
- 90: 9.0 meter total length
- 02: Miniature coaxial ClickLoc connector
- 00: No agency approval required
Installation Guide
Use #3 or larger tap drill for 1/4-28 mounting. Apply 5.1 N·m (45 in·lb) torque to probe case. Maintain minimum 25.4mm (1.0 in) cable bend radius. Avoid temperatures below -34°C to prevent seal damage.
Compatibility
Works with Bently Nevada 3300 monitoring systems. Resists industrial chemicals and oils. Triaxial FEP-insulated cable ensures signal integrity.
Construction Details
- Probe Tip: Polyphenylene sulfide (PPS)
- Probe Case: AISI 304 stainless steel
- Cable: 75 Ω triaxial with FEP insulation
- Connectors: Gold-plated brass/beryllium copper
Packaging & Warranty
New in factory packaging. Includes standard manufacturer warranty. Ships worldwide via FedEx, UPS, DHL.
FAQ
Q: What torque should I apply during installation?
A: 5.1 N·m (45 in·lb) recommended, maximum 7.3 N·m (65 in·lb)
Q: Can I use this in high-temperature environments?
A: Yes, rated for continuous operation up to +177°C (+351°F)
Q: Is chemical resistance guaranteed?
A: Stainless steel construction resists oils and industrial chemicals
