Description
Product Overview

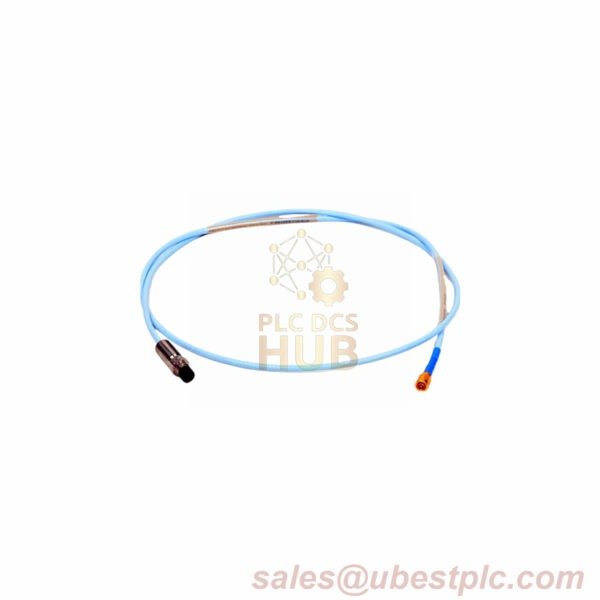

The Bently Nevada 330104-00-08-10-01-CN 3300 XL 8 mm Proximity Probe combines rugged design with advanced connectivity for critical industrial monitoring. Featuring a fully threaded M10x1 body and 80 mm compact case, it integrates a ClickLoc connector with protective housing to safeguard against mechanical wear. Engineered for country-specific certifications, this probe delivers reliable performance in harsh environments, supported by Viton® O-ring sealing and a corrosion-resistant PPS tip.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-00-08-10-01-CN Suffix Breakdown:
- 00: Fully threaded (0 mm unthreaded length)
- 08: 80 mm overall case length
- 10: 1.0-meter cable (3.3 feet)
- 01: ClickLoc connector with protective sleeve
- CN: Country-specific approvals (e.g., CCC, TR CU)
- Mechanical:
- Case Material: AISI 309 stainless steel (high-temperature stability)
- Tip Material: PPS with boron nitride coating (enhanced wear resistance)
- Thread Design: M10x1 with quad-lock anti-vibration mechanism
- Pressure Tolerance: 55 bar differential pressure (quadruple O-ring seals)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
