Product Overview

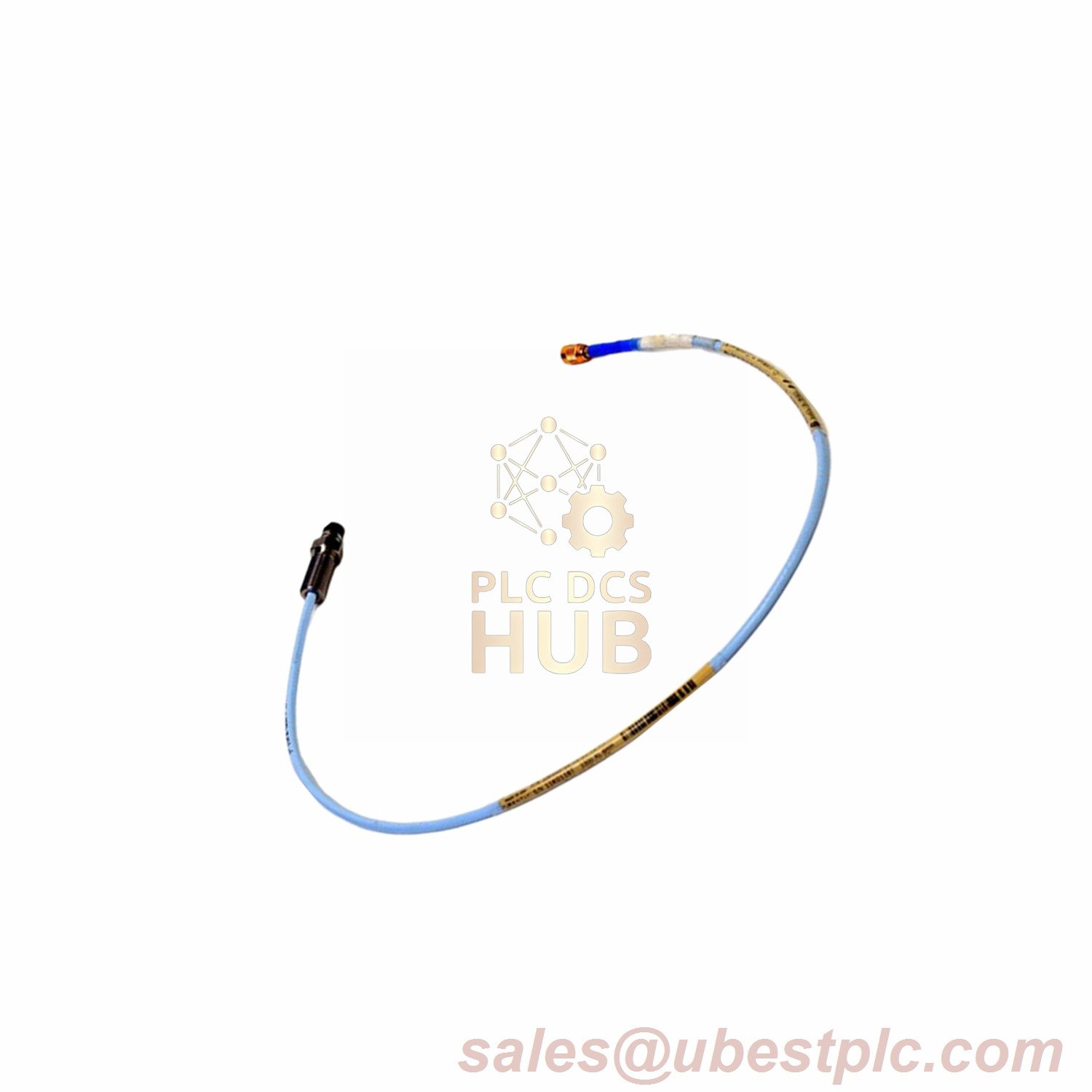

The Bently Nevada 3300 XL 8 mm Proximity Probe (P/N: 330104-01-05-05-02-CN) delivers precision industrial monitoring for rotating machinery. Engineered with a Polyphenylene Sulfide (PPS) tip and AISI 303/304 stainless steel casing, it ensures durability in harsh environments. Additionally, the probe integrates a Viton® O-ring for pressure sealing, supporting differential pressure resistance. Designed for compatibility with 3300 XL systems, it offers stable performance across temperatures (+18°C to +27°C) and altitudes up to 2000 meters. Furthermore, its miniature coaxial ClickLoc connector simplifies installation while maintaining signal integrity.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 3300 XL 8 mm Proximity Probe |
| Product Number | 330104-01-05-05-02-CN |
| Suffix Breakdown | -01: 10 mm unthreaded length -05: 50 mm case length -05: 0.5 m cable -02: ClickLoc connector -CN: Country-specific approvals |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| DC Resistance | 7.45 ± 0.50 Ω (0.5 m cable) |
| Output Resistance | 50 Ω |
| Voltage Range | -17.5 Vdc to -26 Vdc (non-incendive) -23 Vdc to -26 Vdc (with barriers) |
| Pressure Sealing | Viton® O-ring |
Contact Information
For ESD/EMC test reports or custom packaging: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
