Description
Overview

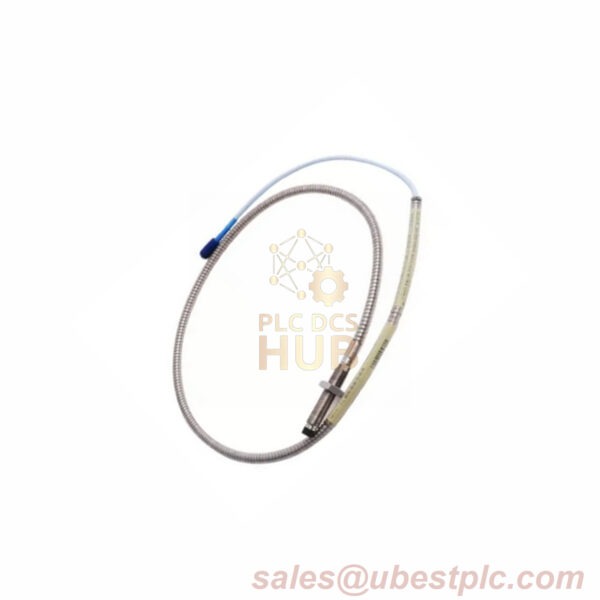

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-04-10-05-01-05) offers robust vibration and position monitoring tailored for demanding industrial environments. Featuring a compact 100 mm stainless steel case (AISI 303/304) and a 40 mm unthreaded section, this probe ensures adaptability in confined spaces. Its ClickLoc connector with a protective sleeve enhances durability, while CSA, ATEX, and IECEx certifications guarantee compliance with global safety standards. Designed for precision, the probe maintains stable performance across a -17.5 Vdc to -26 Vdc range and operates seamlessly at altitudes up to 2000 meters.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-04-10-05-01-05 |
| Suffix Breakdown | – 04: 40 mm unthreaded length – 10: 100 mm case length – 05: 0.5 m cable – 01: ClickLoc connector with protector – 05: CSA, ATEX, IECEx approvals |
| Materials | Case: AISI 303/304 SST Tip: PPS Seal: Viton® O-ring |
| Electrical | Input Voltage: -17.5 to -26 Vdc Output Resistance: 50 Ω Insulation Resistance: >100 MΩ @ 500 VDC Frequency Response: 0.5 Hz – 12 kHz (±3 dB) |
| Mechanical | Protection Rating: IP67 Shock Resistance: 50 g (11 ms) Vibration Resistance: 10 g (10 Hz – 2 kHz) |
| Environmental | Operating Temp: +18°C to +27°C Storage Temp: -40°C to +85°C Max Altitude: 2000 m |
| Performance | Linear Range: 2.0 mm Temperature Drift: ±0.05%/°C Repeatability: ±0.25% |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
