Description
Overview

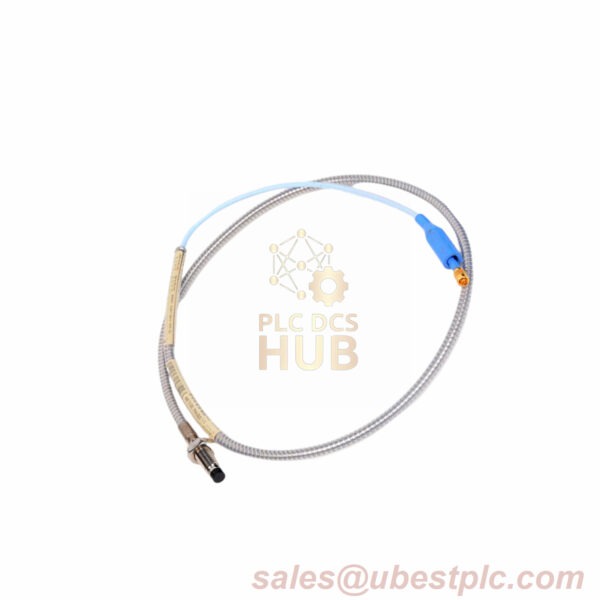

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-08-14-05-01-00) delivers high-precision vibration and position monitoring for industrial machinery. Built with an extended 140 mm stainless steel case (AISI 303/304) and an 80 mm unthreaded section, this probe is ideal for installations requiring deeper reach or adjustable positioning. Equipped with a ClickLoc connector and protective sleeve, it ensures secure connections in high-vibration environments. Designed for versatility, the probe operates reliably within a -17.5 Vdc to -26 Vdc range and maintains performance at altitudes up to 2000 meters, even without agency certifications.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-08-14-05-01-00 |
| Suffix Breakdown | – 08: 80 mm unthreaded length – 14: 140 mm case length – 05: 0.5 m cable – 01: ClickLoc connector with protector – 00: No agency approvals |
| Materials | Case: AISI 303/304 SST Tip: PPS Seal: Viton® O-ring |
| Electrical | Input Voltage: -17.5 to -26 Vdc Load Impedance: 10 kΩ Output Ripple: <5 mV peak-to-peak Transient Recovery: <2 ms |
| Mechanical | Thread Depth: 12 mm Armor Jacket Rating: NEMA 4X Cable Abrasion Resistance: 100+ cycles (IEC 60245-2) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
